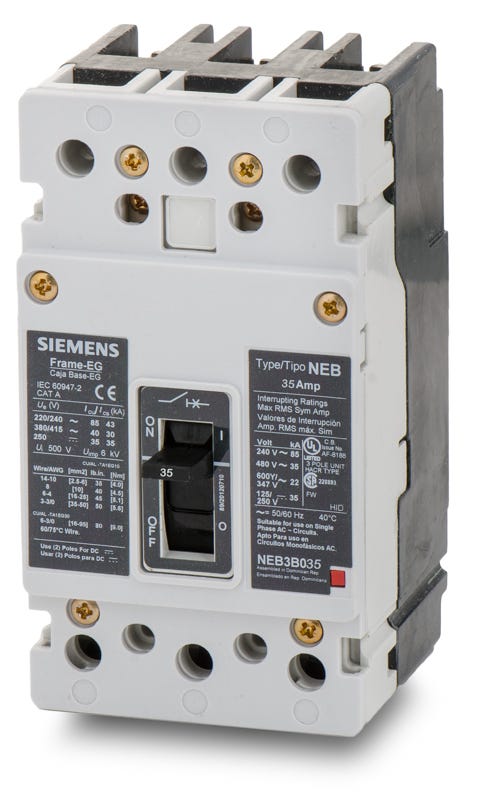

Siemens NEB3B035B Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Siemens
NEB3B035B
Molded Case Circuit Breaker
Brand
Siemens
SKU
NEB3B035B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

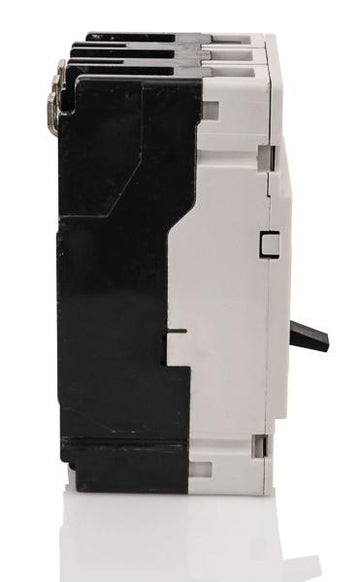

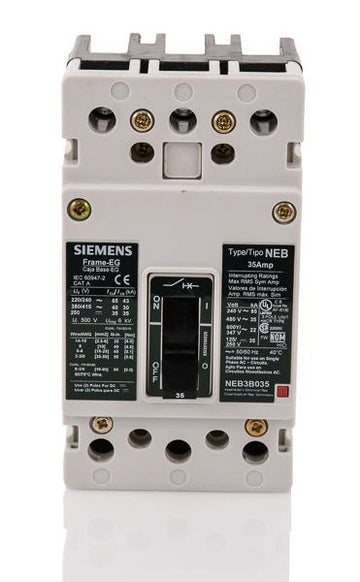

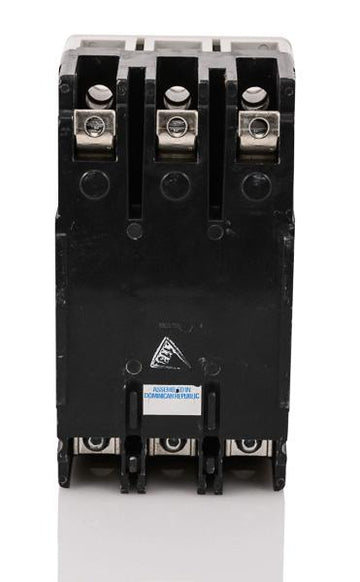

Siemens NEB3B035B - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Part of the Sentron family, this 35A molded case breaker delivers reliable short-circuit and overload protection for commercial grids. It mounts into Siemens P1, P2, and P3 panelboards, providing a secure bolt-on connection for three-phase systems. Facilities planning future upgrades can transition to the 3VA4135-5ED34-0AA0 replacement model. This specific unit features a reverse feed capability and non-interchangeable trip, alongside standard HACR and HID ratings for specialized loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NEB3B035B |
| Series | NEB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the NEB3B035B circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as legacy NEB panelboards.
What wire sizes and materials are supported by the load lugs on this breaker?
The factory-installed load lugs accept 14 AWG through 1/0 AWG wire. They are rated for use with both copper (Cu) and aluminum (Al) conductors.
Can the NEB3B035B be used in DC voltage applications?
Yes, this breaker is UL and CSA listed for DC applications up to 125/250 VDC, providing a 35 kA interrupting rating at that voltage.
Are the thermal and magnetic trip settings adjustable on this model?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (thermal) and instantaneous (magnetic) trip functions are factory set and non-adjustable.
Will this Siemens breaker replace an older ITE NEB series breaker?
Yes. Siemens acquired ITE and continues to manufacture the NEB series to the same physical dimensions and bolt-on mounting specifications, making it a direct replacement for legacy ITE versions.
