Siemens NGB1B040B Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Siemens
NGB1B040B
Molded Case Circuit Breaker
Brand
Siemens
SKU
NGB1B040B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

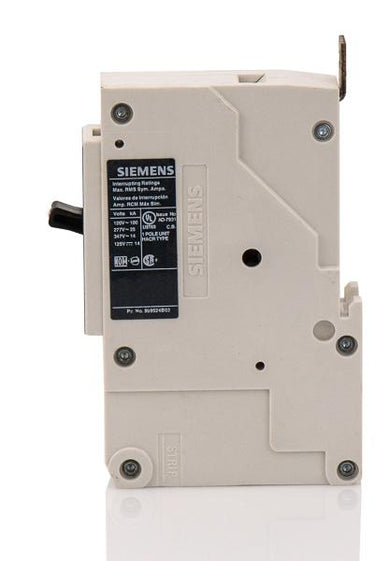

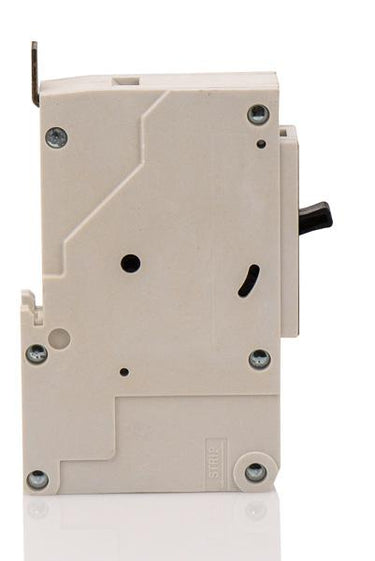

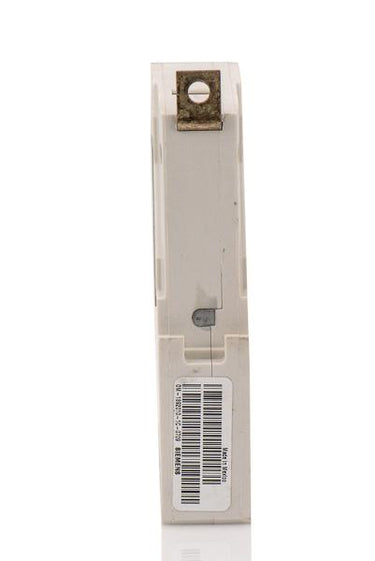

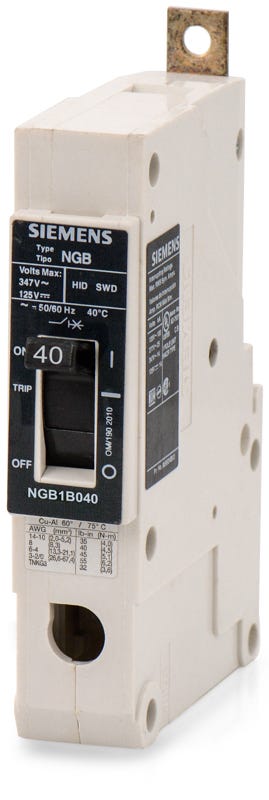

Siemens NGB1B040B - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Delivering robust performance, the Siemens NGB1B040B is a 40A, 1-pole molded case circuit breaker. It utilizes fixed thermal and magnetic trip units to provide precise LI protection. Designed with a bolt-on mounting style, it integrates into Siemens P1, P2, and P3 panelboards. For modern upgrades, this unit is replaced by the 3VA51 Series (requires mounting kit). Rated 100kAIC at 120VAC, this breaker is HACR and HID rated for specialized lighting and HVAC loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NGB1B040B |
| Series | NGB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 277VAC, 14kA @ 125VDC, 14kA @ 347VAC |
| Frame Type | GG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (3TC1GG20) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Product FAQs
7 answersWhich Siemens panelboards are compatible with the NGB1B040B circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 series panelboards. Note that for P1 panels, the interior must be configured to accept xGB or NGB frame breakers.
Can the NGB1B040B be used to replace older BQD breakers?
While NGB and BQD breakers share a 1-inch per pole footprint and are often used in the same P1, P2, or P3 panelboards, they have different interrupting ratings and branch kit requirements. Verify your panelboard's interior configuration and required fault current ratings before substituting.
What safety mechanism is built into the NGB frame toggle?
The NGB frame features an overcenter toggle mechanism that is trip-free. If a short circuit or overcurrent condition occurs, the contacts are forced apart and the breaker cannot be held closed by the handle.
Can this breaker be mounted on a DIN rail?
No. While the similar NGG frame can be DIN rail mounted, the NGB frame is specifically configured with a bolt-on line end for panelboard mounting applications.
Does this breaker provide adjustable trip settings?
No, the NGB1B040B features fixed thermal and fixed magnetic trip elements for long-time and instantaneous (LI) protection. It cannot be field-adjusted.
Are the load-side lugs on the NGB1B040B removable?
Yes, the load-side lugs are removable and interchangeable. This allows for customer-supplied connections or alternate lug kits if field modifications are required.
Is the NGB1B040B suitable for direct current applications?
Yes, this 1-pole breaker is rated for use on 125VDC systems. It is applicable on direct current systems provided it is installed according to NEC guidelines for DC circuit protection.
