Siemens NGB2B125B Molded Case Circuit Breaker

  • 125A
  • 2 Pole
  • Bolt-On
Siemens NGB2B125B
Molded Case Circuit Breaker
Brand Siemens
SKU NGB2B125B
Select Item Condition
Earn 534 SuperPoints
  • 125A
  • 2 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.

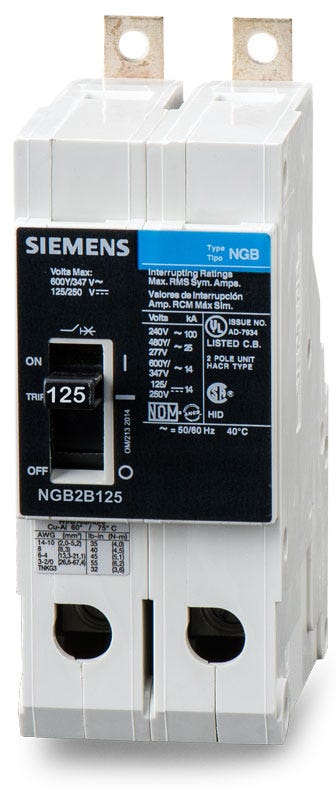

Siemens NGB2B125B 2 Pole Circuit Breaker

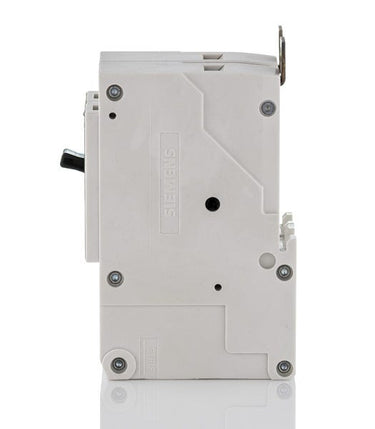

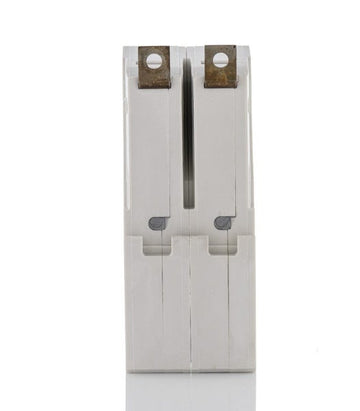

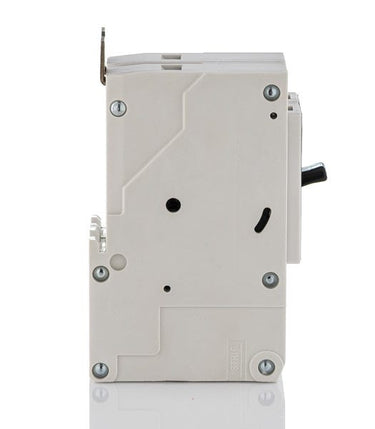

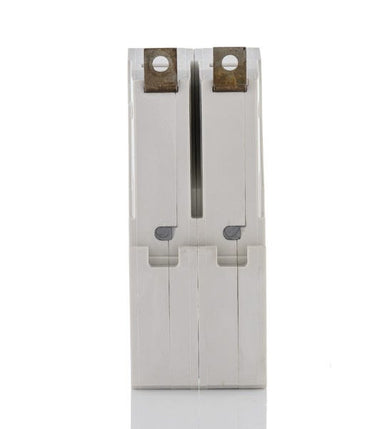

Siemens NGB2B125B - 125A 2 Pole Molded Case Circuit Breaker

New

$534.08 In Stock

Quantity

Similar Items

Description

Engineered for commercial power distribution, the Siemens NGB2B125B is a 2-pole, 125A molded case circuit breaker with a fixed thermal-magnetic trip mechanism. This bolt-on breaker mounts into Siemens P1, P2, and P3 panelboards. It is the predecessor to the 3VA51 series, which requires a separate mounting kit. Delivering 100kAIC at 240VAC and 25kAIC at 480Y/277VAC, it handles demanding environments and supports reverse feed applications.

Specifications

Key specifications
Brand Siemens
Series NGB
Amperage 125A
Poles 2
Mounting Style Bolt-On
Voltage 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC
Phase 1
AIC Rating 100kA @ 240VAC, 25kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC
Fit and installation
Frame Type NGB
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards
Wire Gauge 8-1/0 AWG (Cu), 8-2/0 AWG (Al)
Max Wire 1/0 AWG (Cu), 2/0 AWG (Al)
Min Wire 8 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch
Accessories Load Lugs
Standards CSA C22.2 No. 5, UL 489, NEMA AB 1
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed

Product FAQs

6 answers
Which Siemens panelboards are compatible with the NGB2B125B?

This breaker is designed for use in Siemens P1, P2, and P3 panelboards. It mounts directly to the bus using a bolt-on connection.

Can the NGB2B125B be used in DC circuits?

Yes, it is rated for DC applications up to 125/250VDC with a maximum interrupting capacity of 14kA.

What wire sizes are accepted by the standard lugs on this breaker?

The factory-installed lugs accept 8 to 1/0 AWG copper wire or 8 to 2/0 AWG aluminum wire.

What does the LI trip function indicate on this breaker?

The LI designation means the breaker provides Long-Time (thermal) and Instantaneous (magnetic) protection. Both trip settings are fixed on this thermal-magnetic model.

What is the difference between the NGB, HGB, and LGB circuit breakers?

These breakers share the same physical footprint within the GB frame family but offer different interrupting ratings. The NGB provides standard interrupting capacity, while the HGB and LGB offer high and extra-high interrupting capacities, respectively.

How does the NGB2B125B connect to the panelboard bus?

This is a bolt-on circuit breaker. It requires a bolted connection directly to the panelboard bus, which provides a secure, vibration-resistant installation compared to plug-in alternatives.
