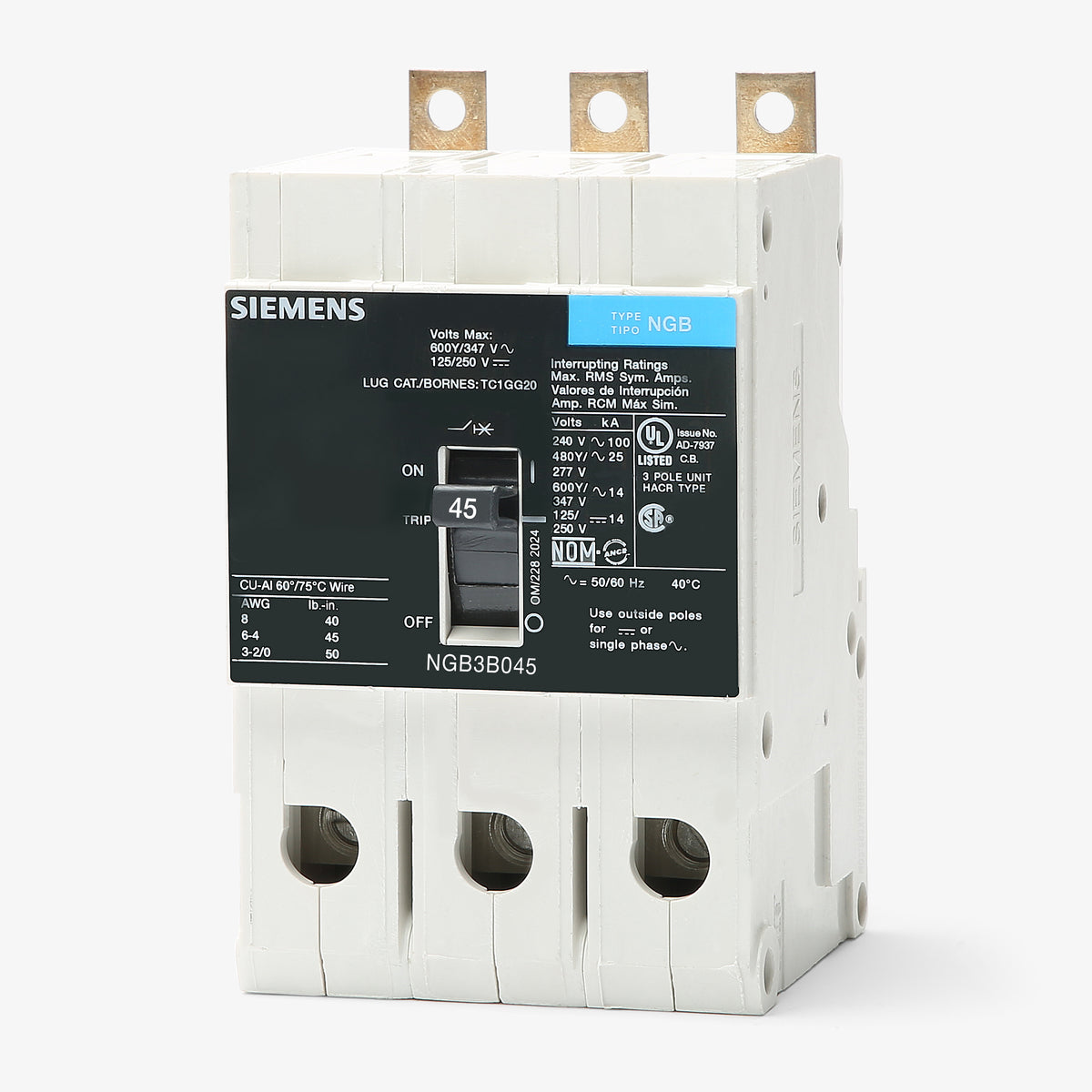

Siemens NGB3B045B Molded Case Circuit Breaker

  • 45A
  • 3 Pole
  • Bolt-On
Siemens NGB3B045B
Molded Case Circuit Breaker
Brand Siemens
SKU NGB3B045B
Select Item Condition
Earn 591 SuperPoints
  • 45A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Siemens NGB3B045B - 45A 3 Pole Molded Case Circuit Breaker

Siemens NGB3B045B - 45A 3 Pole Molded Case Circuit Breaker

New

$591.60 In Stock

Quantity

Similar Items

Description

Operating at up to 600Y/347VAC, the Siemens NGB3B045B is a 3-pole, 45A molded case circuit breaker. It provides essential LI protection for commercial electrical systems. This SENTRON series breaker bolts into Siemens P1, P2, P3, P4, and P5 panelboards. It features a trip-free mechanism, is HACR rated, and accepts standard lug connections. Offering 100kAIC at 240VAC, it delivers high-performance fault clearing. It is replaced by 3VA5145-4ED36-0AA0 (requires kit for P1-P3 panels).

Specifications

Key specifications
Brand Siemens
Part Number NGB3B045B
Series NGB
Amperage 45A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC
Phase 3
AIC Rating 100kA @ 240VAC, 25kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC
Fit and installation
Terminal Type Lugs
For Use With Siemens P1, P2, P3, P4, P5 Panelboards
Wire Gauge 8-1/0 AWG (Cu), 8-2/0 AWG (Al)
Max Wire 1/0 AWG (Cu), 2/0 AWG (Al)
Min Wire 8 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
Accessories Load Side Lugs (3TC1GG20)
Standards CSA C22.2 No. 5, UL 489, NEMA AB 1
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Trip-Free Mechanism

Product FAQs

8 answers
Which Siemens panelboards accept the NGB3B045B breaker?

This bolt-on breaker is designed for use in Siemens P1, P2, P3, P4, and P5 series panelboards. It mounts directly to the panel bus using bolted connections.

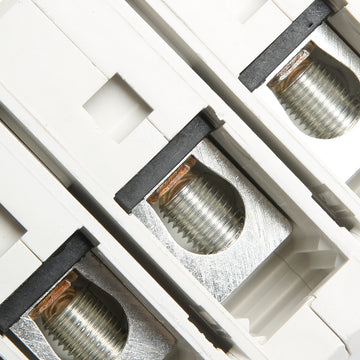

What wire sizes and materials are supported by the lugs on this breaker?

The factory-installed lugs accept 8 AWG to 1/0 AWG copper wire, or 8 AWG to 2/0 AWG aluminum wire. Ensure proper torque specifications are followed during installation as noted on the breaker faceplate.

Can the NGB3B045B be used in DC applications?

Yes, this breaker is rated for DC systems up to 125/250V DC with a maximum interrupting capacity of 14kAIC.

Are the thermal and magnetic trip settings adjustable on the NGB3B045B?

No, this breaker features fixed thermal and fixed magnetic trip elements for both long-time and instantaneous protection.

What frame size does the NGB3B045B belong to?

It is part of the Siemens Sentron series GB and GG frame group. This is a compact molded case frame commonly used for branch circuit protection in commercial panelboards.

Does this breaker provide ground fault or arc fault protection?

No, the NGB3B045B provides standard thermal-magnetic protection for overloads and short circuits only. It does not include GFCI or AFCI circuitry.

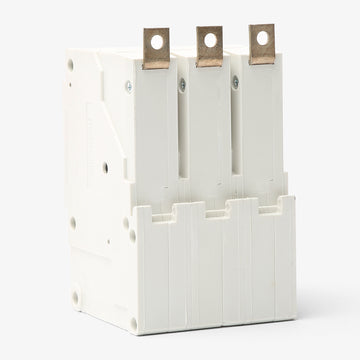

How does the NGB3B045B connect to the panelboard bus?

It utilizes a bolt-on connection type. You will need the appropriate mounting hardware to secure the breaker directly to the busbars in compatible Siemens panelboards.

What is the maximum interrupting rating for this breaker on a 480V system?

When installed in a 480Y/277V AC system, the breaker carries a 25kAIC interrupting rating. For 240V AC systems, the rating increases to 100kAIC.
