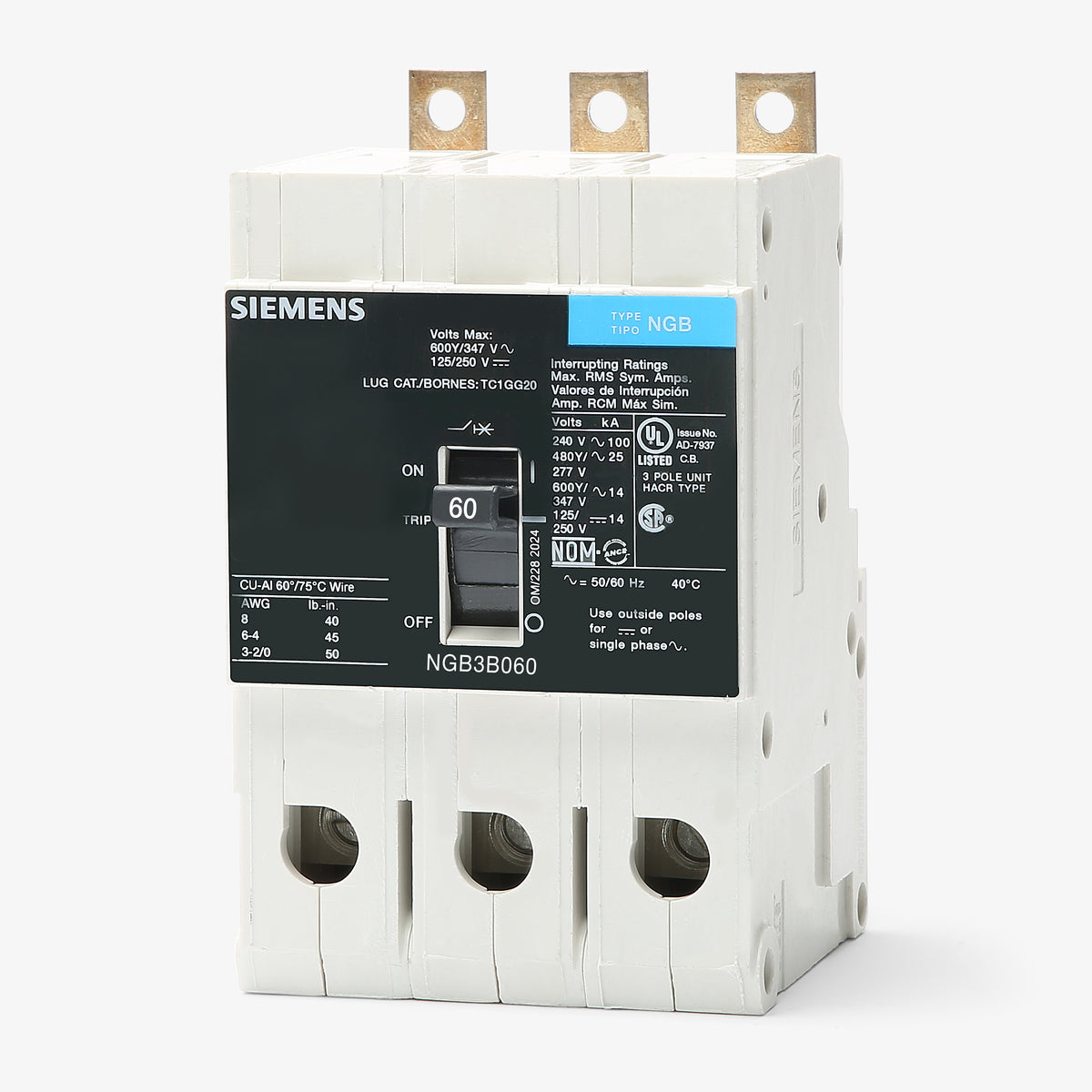

Siemens NGB3B060B Molded Case Circuit Breaker

  • 60A
  • 3 Pole
  • Bolt-On
Siemens NGB3B060B
Molded Case Circuit Breaker
Brand Siemens
SKU NGB3B060B
Select Item Condition
Earn 380 SuperPoints
  • 60A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Siemens NGB3B060B - 60A 3 Pole Molded Case Circuit Breaker

Siemens NGB3B060B - 60A 3 Pole Molded Case Circuit Breaker

New

$380.76 In Stock

Quantity

Similar Items

Description

Built for industrial applications, the Siemens NGB3B060B is a 3-pole, 60A molded case circuit breaker utilizing fixed thermal and magnetic trip technology. Designed with a bolt-on mounting style, this unit integrates into Siemens P1, P2, and P3 panelboards. Note that this model is replaced by the 3VA51 series. Capable of handling 14kAIC at 600Y/347VAC, it comes equipped with load side lugs, is fully HACR rated, and supports reverse feed setups for commercial installations.

Specifications

Key specifications
Brand Siemens
Part Number NGB3B060B
Series NGB
Amperage 60A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC
Phase 3
AIC Rating 100kA @ 240VAC, 25kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC
Fit and installation
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards
Wire Gauge 8-1/0 AWG (Cu), 8-2/0 AWG (Al)
Max Wire 1/0 AWG (Cu), 2/0 AWG (Al)
Min Wire 8 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed

Product FAQs

6 answers
Which panelboards accept the NGB3B060B circuit breaker?

This 60A bolt-on breaker is designed for direct integration into Siemens P1, P2, and P3 distribution panelboards, as well as NGB 125A panelboards.

What is the difference between Siemens NGB and NGG circuit breakers?

Both series share the same compact GB frame design and thermal-magnetic trip units. However, NGB breakers like the NGB3B060B are configured specifically for bolt-on panelboard applications, whereas NGG breakers are engineered for independent base mounting or DIN rail installation in OEM equipment.

Are lugs included on both the line and load sides of the NGB3B060B?

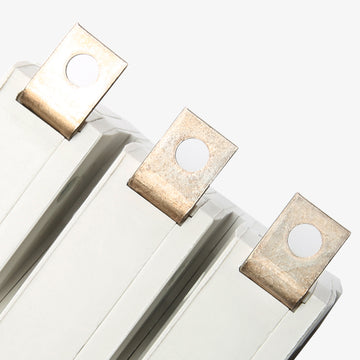

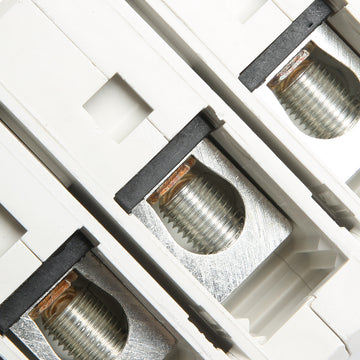

No. Because this is a panelboard-mounted breaker, the line side features a bolt-on connection that fastens directly to the panel bus. Mechanical lugs are only equipped on the load side to accept your branch circuit wiring.

Can I install this Siemens NGB breaker in a GE or Eaton electrical panel?

No. To maintain strict UL safety listings and ensure proper bus bar alignment, the NGB3B060B must only be installed in approved Siemens enclosures. Forcing cross-brand compatibility can lead to dangerous resistance points, arcing, and voided manufacturer warranties.

Can the NGB3B060B replace older Siemens BQD circuit breakers?

Both NGB and BQD breakers can mount in Siemens P-Series panelboards. However, NGB breakers generally deliver higher interrupting ratings and have distinct physical dimensions. When substituting an NGB breaker for a BQD unit, confirm that your specific panel generation provides adequate gutter and wiring space for the GB frame.

Do I need a separate mounting kit to install the NGB3B060B in a distribution panel?

Yes, depending on your panel configuration. Installing an NGB branch breaker into Siemens P2 or P3 panelboards generally requires a specific mounting kit (such as the BBKNB32). These kits include the necessary mounting barriers, phase connectors, and hardware to safely bridge the breaker to the panel bus.
