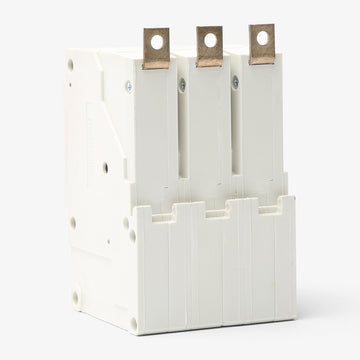

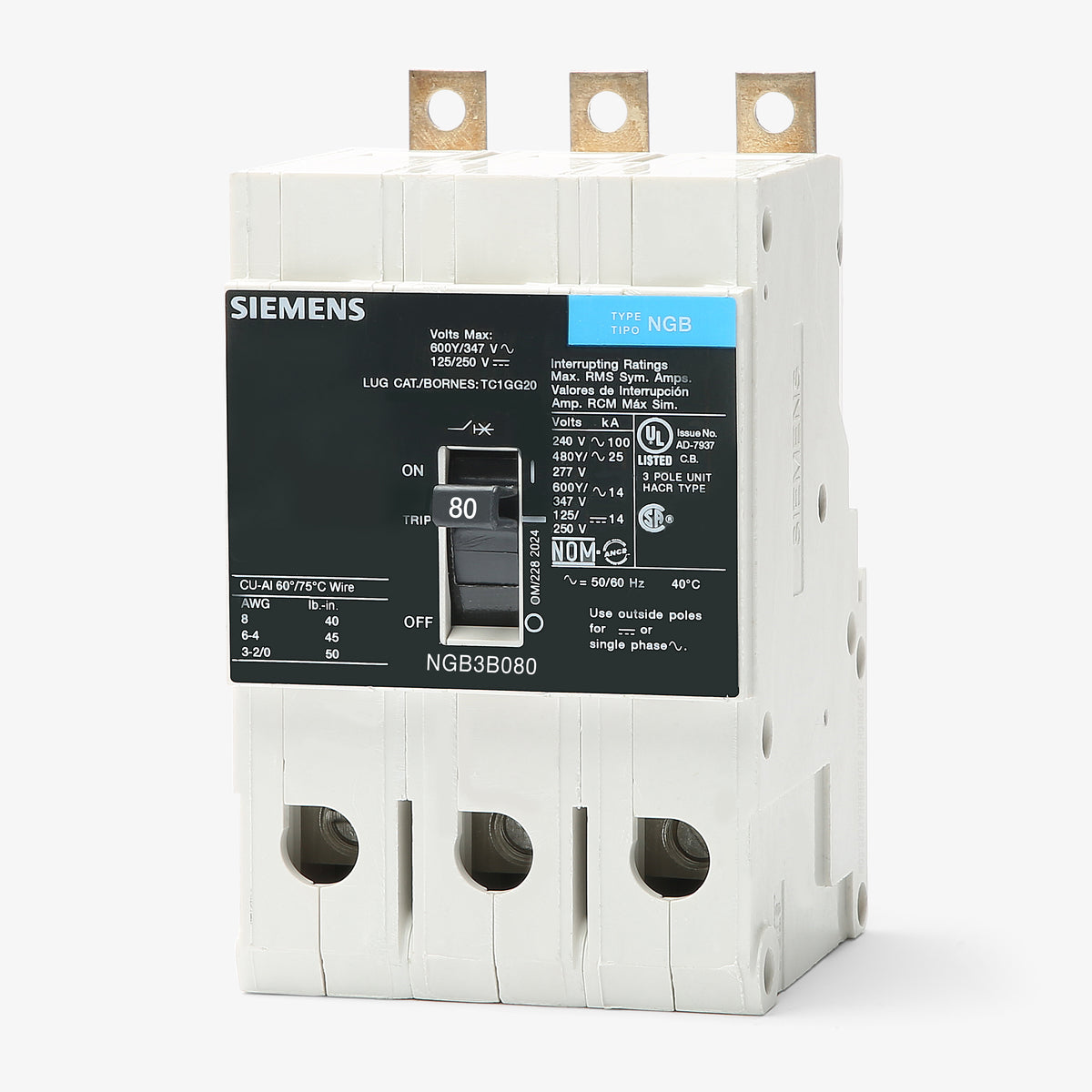

Built for commercial and industrial power systems, the Siemens NGB3B080B provides robust overcurrent protection. This 80A, 3-pole molded case circuit breaker features fixed thermal and magnetic trip elements for dependable long-time and instantaneous (LI) defense. It installs securely into Siemens P1, P2, and P3 panelboards via a standard bolt-on connection. Rated at 100 kAIC at 240VAC and 25 kAIC at 480Y/277VAC, it handles demanding fault currents. It is HACR rated and reverse feed capable.
Which panelboards are compatible with the NGB3B080B circuit breaker?
This bolt-on circuit breaker is designed exclusively for installation in Siemens P1, P2, and P3 series panelboards.
Do I need to buy load lugs separately for the NGB3B080B?

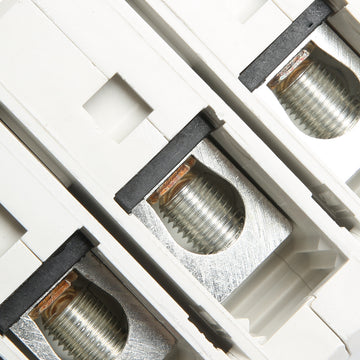

No, this breaker comes with factory-installed load lugs. They are rated to accept 8 AWG to 1/0 AWG copper wire, or 8 AWG to 2/0 AWG aluminum wire.
Can the NGB3B080B be used in reverse feed applications?
Yes. Because this thermal-magnetic breaker has a fixed, non-interchangeable trip unit and no line or load restrictions marked on the casing, it is suitable for reverse feed wiring.
Is this breaker rated for direct current (DC) applications?
Yes, in addition to standard AC voltages, the NGB3B080B is rated for 125/250VDC systems, making it suitable for select industrial or battery backup direct current circuits.
Are the thermal and magnetic trip settings adjustable?
No. This breaker features a fixed thermal and fixed magnetic (LI) trip unit, meaning the overload and short-circuit pickup levels cannot be modified in the field.
Does the NGB3B080B provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker that provides essential long-time and instantaneous overcurrent protection. It does not include GFCI, AFCI, or equipment ground fault (EPD) functionality.
Do I need a separate strap kit to mount the NGB3B080B?

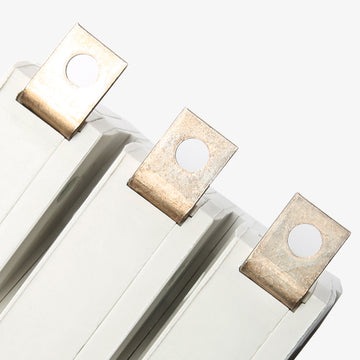

No. The NGB3B080B features a standard bolt-on connection that fastens directly to the bus inside Siemens P1, P2, and P3 panelboards without requiring additional mounting strap kits.
