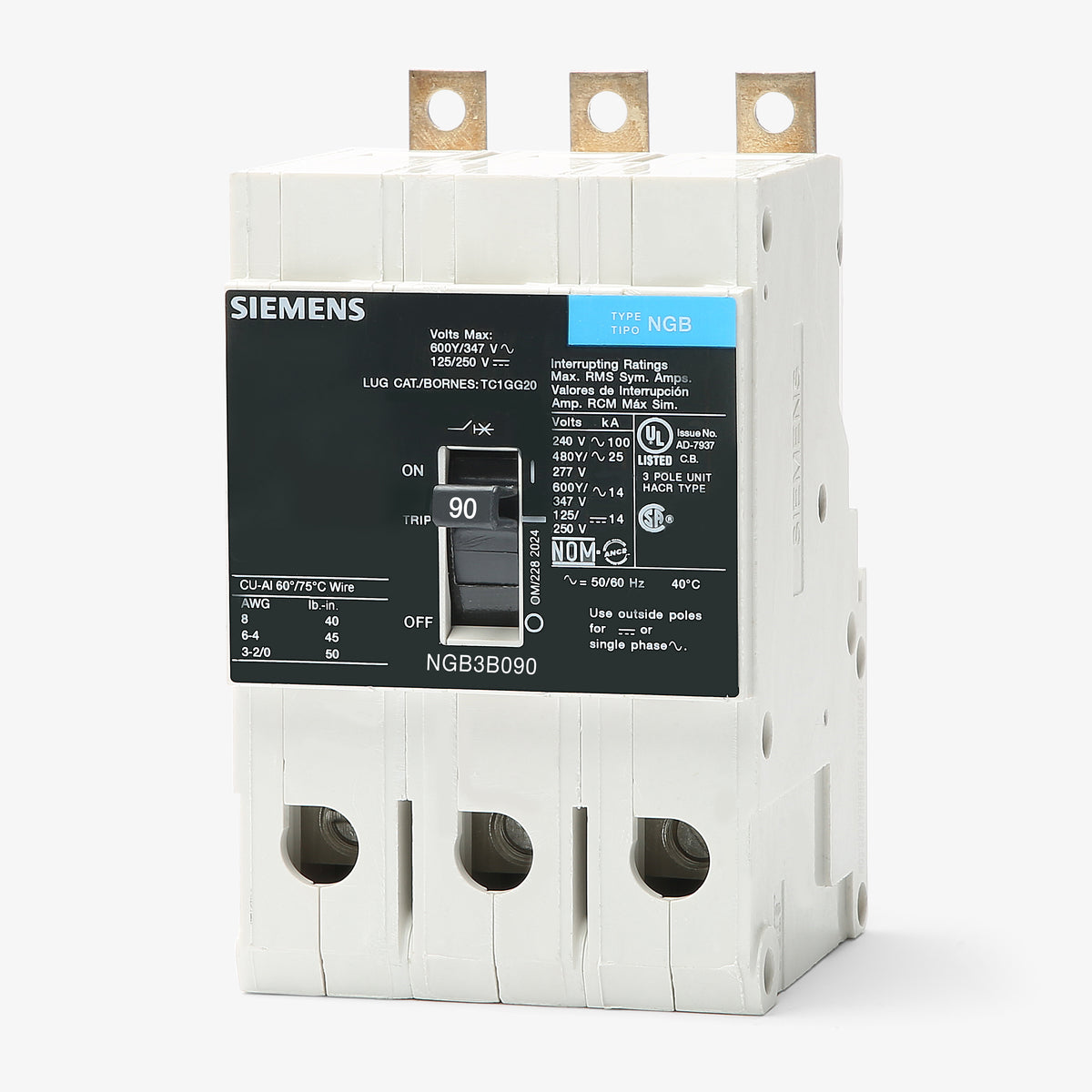

Siemens NGB3B090B Molded Case Circuit Breaker

  • 90A
  • 3 Pole
  • Bolt-On
Siemens NGB3B090B
Molded Case Circuit Breaker
Brand Siemens
SKU NGB3B090B
Select Item Condition
Earn 429 SuperPoints
  • 90A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Siemens NGB3B090B - 90A 3 Pole Molded Case Circuit Breaker

Siemens NGB3B090B - 90A 3 Pole Molded Case Circuit Breaker

New

$429.24 In Stock

Quantity

Similar Items

Description

Providing reliable overcurrent defense for commercial facilities, the Siemens NGB3B090B is a 90-amp, 3-pole molded case circuit breaker. It employs fixed thermal and magnetic trip elements to deliver precise long-time and instantaneous (LI) fault clearing. This breaker installs easily into Siemens P1, P2, and P3 panelboards via a standard bolt-on connection. Capable of handling significant fault currents, it boasts a 100 kAIC rating at 240VAC. Load side lugs are included for quick wiring.

Specifications

Key specifications
Brand Siemens
Part Number NGB3B090B
Series NGB
Amperage 90A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC
Phase 3
AIC Rating 100kA @ 240VAC, 25kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC
Fit and installation
Frame Type NGB
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards
Wire Gauge 8-1/0 AWG (Cu), 8-2/0 AWG (Al)
Max Wire 1/0 AWG (Cu), 2/0 AWG (Al)
Min Wire 8 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch

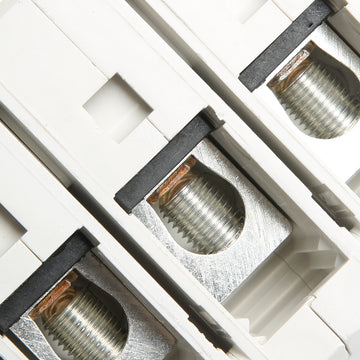

Accessories Load Side Lugs (3TC1GG20)
Standards CSA C22.2 No. 5, UL 489, NEMA AB 1
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed

Product FAQs

5 answers
What panelboards are compatible with the Siemens NGB3B090B?

It is designed for use in Siemens P1, P2, and P3 panelboards. Depending on the panel type, specific mounting strap kits or barrier kits may be required to secure it to the bus.

Can the NGB3B090B be reverse fed?

Yes, this thermal-magnetic breaker is suitable for reverse feed applications.

Is the Siemens NGB3B090B HACR rated?

Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.

What is the difference between the Siemens NGB, HGB, and LGB frame breakers?

The primary difference is their interrupting rating (AIC) at 480VAC. The standard NGB is rated for 25kAIC, the HGB is rated for 35kAIC, and the LGB is rated for 65kAIC at 480VAC.

Does the NGB3B090B come with lugs?

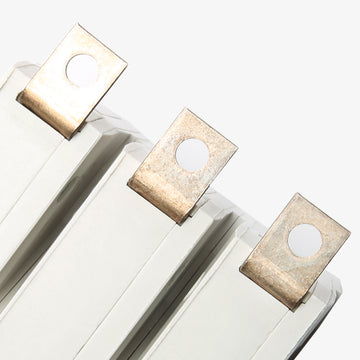

Yes, this breaker includes load-side lugs. The line side is designed to bolt directly to the panelboard bus.
