Siemens NGG2B045L Molded Case Circuit Breaker
- 45A
- 2 Pole
- Unit Mount
Siemens
NGG2B045L
Molded Case Circuit Breaker
Brand
Siemens
SKU
NGG2B045L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

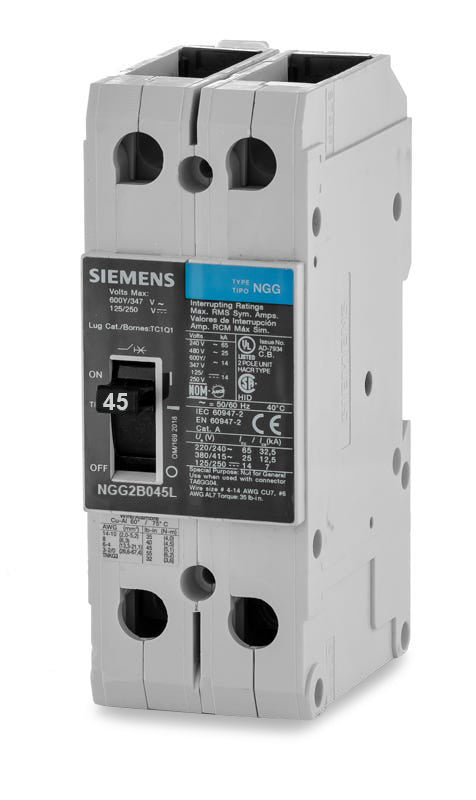

Siemens NGG2B045L - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker

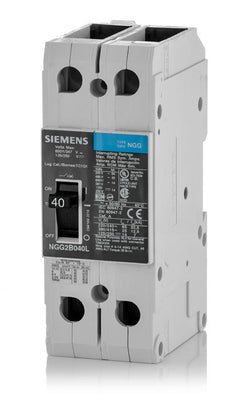

40A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, the Siemens NGG2B045L is a 2-pole, 45A molded case circuit breaker. It delivers dependable power distribution and circuit protection for commercial switchboards and heavy-duty machinery. This GB/GG frame breaker features a versatile unit-mount configuration compatible with DIN rails and standard Siemens enclosures. Equipped with a fixed thermal-magnetic trip unit, it provides precise LI protection and boasts a 25 kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Series | NGG |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Frame Type | NGG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, Control Panels, Switchboards, DIN Rail |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TC1GG20) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, NOM, UL |
| Temp Rating | 40C |
Product FAQs
6 answersIs the NGG2B045L still actively manufactured by Siemens?
Siemens has phased out the NGG frame circuit breakers. The direct successor product line recommended by Siemens is the 3VA41 series. However, NGG2B045L breakers are still widely sourced for existing panel replacements and spares.
Are the line and load lugs included with the NGG2B045L?
Yes, this breaker comes with factory-installed line and load lugs, specifically part number TC1GG20. These lugs accept 8 to 1/0 AWG copper or 8 to 2/0 AWG aluminum conductors.
What is the ambient temperature calibration for this breaker?
The NGG2B045L is calibrated for a maximum ambient operating temperature of 40 degrees Celsius (104 degrees Fahrenheit), which is standard for Siemens thermal-magnetic molded case circuit breakers.
How is the NGG2B045L mounted inside a panel?
This is a unit-mount breaker that does not plug into a busbar. It can be installed using standard screw mounting on a back-pan or snapped directly onto a standard 35mm DIN rail within compatible Siemens enclosures, control panels, or switchboards.
Can this breaker be used in direct current (DC) control circuits?
Yes, the NGG2B045L carries a DC rating of 125/250VDC with an interrupting capacity of 14kAIC, making it suitable for battery banks and compatible direct current applications.
What does the LI trip function code mean on the NGG2B045L?
The LI designation indicates that the breaker provides Long-Time and Instantaneous trip functions. It uses a fixed thermal element to protect against overloads (Long-Time) and a fixed magnetic element to protect against short circuits (Instantaneous).
