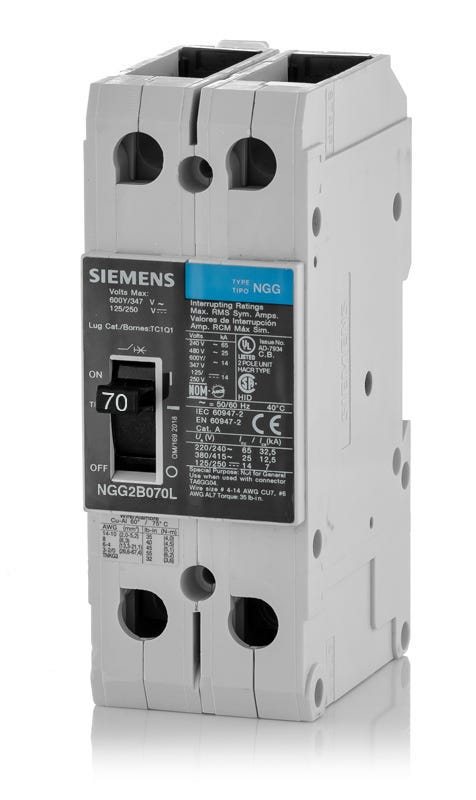

Siemens NGG2B070L Molded Case Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Siemens
NGG2B070L
Molded Case Circuit Breaker
Brand
Siemens
SKU
NGG2B070L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens NGG2B070L - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Part of the Siemens SENTRON family, the NGG2B070L provides robust thermal-magnetic protection for commercial applications. This 2-pole, 70A molded case circuit breaker is rated for 25 kAIC at 480VAC, ensuring reliable performance. It features a versatile unit mount design that secures easily to DIN rails or standard control panels. Equipped with factory-installed lugs, this breaker is reverse feed capable and HACR rated. This legacy NGG frame model is replaced by the 3VA5170-4ED21-0AA0.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NGG2B070L |
| Series | NGG |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Frame Type | NGG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, Control Panels, Switchboards, DIN Rail |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TC1GG20) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, NOM, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat wire sizes are compatible with the lugs on the NGG2B070L?
The factory-installed lugs accept 8 AWG to 1/0 AWG copper wire, or 8 AWG to 2/0 AWG aluminum wire.
How is the NGG2B070L breaker mounted in a panel or enclosure?
This is a unit-mount breaker that can be secured using standard mounting screws or snapped onto a standard DIN rail. It is commonly used in control panels, switchboards, and standalone Siemens enclosures.
Are the trip settings on this breaker adjustable?
No, the NGG2B070L features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
Is the NGG2B070L rated for direct current (DC) systems?
Yes, this breaker is rated for DC applications, providing an interrupting capacity of 14kA at 125/250VDC.
What frame class does this breaker belong to?
It is part of the Siemens SENTRON series and falls under the NGG frame designation, which is part of the broader GB/GG frame group.
