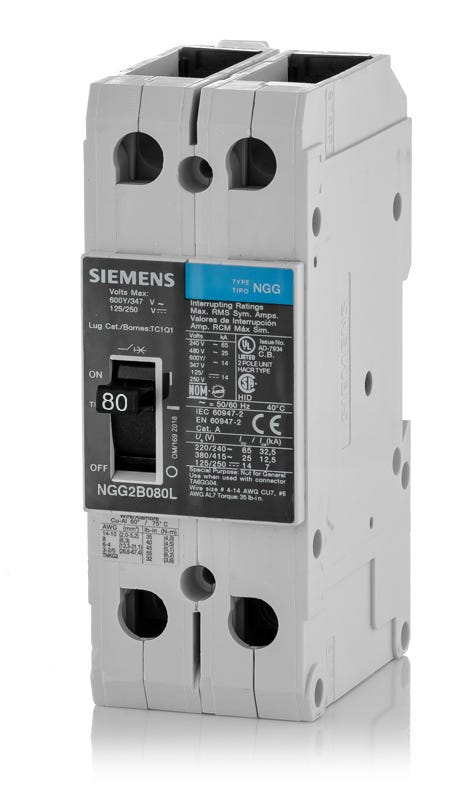

Siemens NGG2B080L Molded Case Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
Siemens
NGG2B080L
Molded Case Circuit Breaker
Brand
Siemens
SKU
NGG2B080L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens NGG2B080L - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the NGG2B080L is an 80A, 2-pole molded case circuit breaker from the Siemens SENTRON line. Delivering a 25 kAIC interrupt rating at 480VAC, it utilizes fixed thermal-magnetic trip units for dependable protection. The unit mount configuration allows for flexible installation in P1 panelboards, control panels, or onto DIN rails. It comes standard with line and load lugs and is HACR rated. This breaker crosses over to the 3VA5180-4ED21-0AA0 for upgrades.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NGG2B080L |
| Series | NGG |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Frame Type | NGG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, DIN Rail Enclosures, Control Panels |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Rotary Handle, Nut Keeper Kit |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, NOM, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhat is the difference between Siemens NGG and NGB circuit breakers?
The NGG frame is designed for global applications and can be independently mounted on a 35mm DIN rail or secured with mounting screws. The NGB frame shares the same internal design but is specifically configured for panelboard mounting and lacks some of the global markings found on the NGG.
Does the NGG2B080L require an adapter for DIN rail installation?
No, this breaker features an integral design that allows it to be mounted directly onto a standard 35mm DIN rail without the need for additional mounting plates or adapters. It can also be secured to a backpan using standard mounting screws.
Are the line and load lugs included with this breaker?
Yes, the breaker comes standard with factory-installed line and load side lugs. These feed-thru terminals accept 8 AWG to 1/0 AWG copper or 8 AWG to 2/0 AWG aluminum conductors.
Can the NGG2B080L be used in DC power applications?
Yes, this breaker is rated for direct current applications up to 125/250VDC with an interrupting capacity of 14kAIC.
Are the trip settings on the NGG2B080L adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory preset and cannot be adjusted in the field.
Is this breaker suitable for use in HVAC equipment?
Yes, the NGG2B080L is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Can the Siemens NGG2B080L be reverse fed?
Yes, this breaker is suitable for reverse feed applications according to UL 489 standards because the thermal-magnetic trip unit is fixed and not removable.
