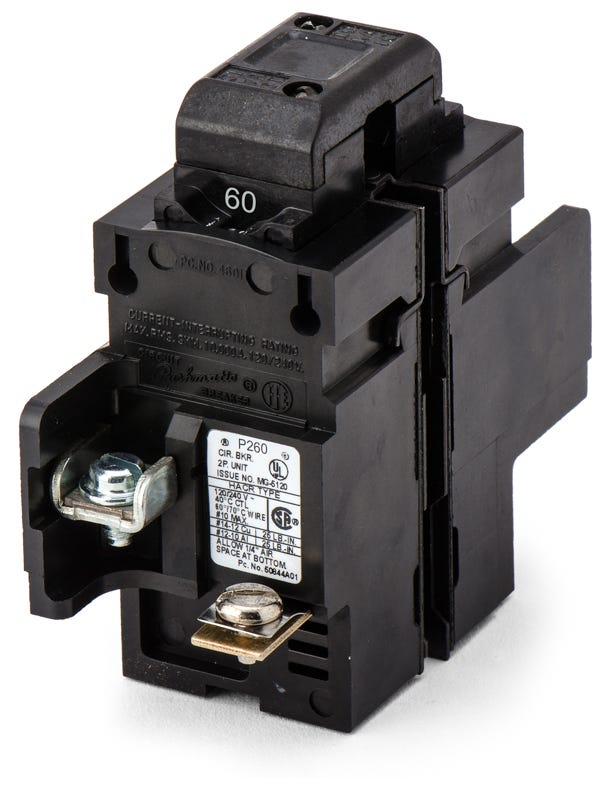

Siemens P260 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
P260
Molded Case Circuit Breaker
Brand
Siemens
SKU
P260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens P260 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens P260 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P260 |
| Series | P |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 6-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Sold out
Quantity
Siemens P260 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P260-R |
| Series | P |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 6-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial power distribution, this 60A thermal magnetic breaker delivers consistent overcurrent protection. The 2-pole device operates at 120/240VAC and features common trip functionality. It mounts into ITE and Siemens Pushmatic load centers, providing a seamless replacement for older Gould and Bulldog P260 units. With a 10kAIC interrupting rating, the breaker features signature push-button actuation and accepts 6-4 AWG copper or aluminum wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P260 |
| Series | P |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 6-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhat load centers are compatible with the Siemens P260 circuit breaker?
The Siemens P260 is designed exclusively for use in ITE and Siemens Pushmatic load centers. It features the proprietary Pushmatic bolt-on design and will not fit standard plug-on or modern bolt-on panels.
Can the Siemens P260 replace older Bulldog or Gould breakers?
Yes, the Siemens P260 serves as a direct replacement for legacy Bulldog, Gould, and ITE P260 or W260 Pushmatic circuit breakers.
How is the Siemens P260 installed in a Pushmatic panel?
The P260 uses a specialized bolt-on connection that secures directly to the panel bus bar with screws. Ensure the panel is de-energized before bolting the breaker into place.
What wire sizes are accepted by the P260 breaker lugs?
The terminal lugs on the Siemens P260 are rated for 6 AWG to 4 AWG copper or aluminum conductors. Proper torque must be applied during installation to ensure a secure connection.
Does the P260 use a standard toggle switch for operation?
No, the P260 utilizes the signature Pushmatic push-button actuation instead of a traditional toggle switch to manually open and close the circuit.
What type of trip protection does the P260 provide?
The P260 features a fixed thermal-magnetic trip mechanism. It provides long-time protection for sustained overloads and instantaneous protection against short circuits.
