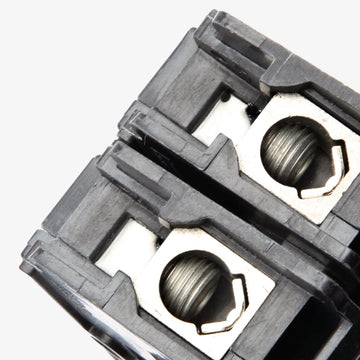

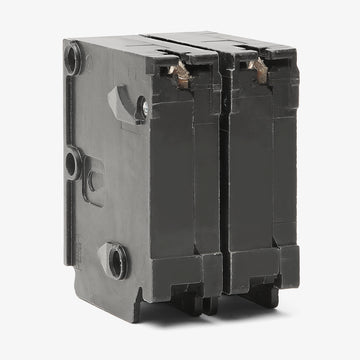

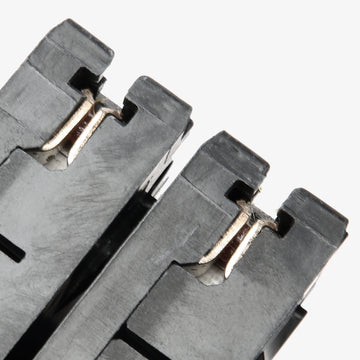

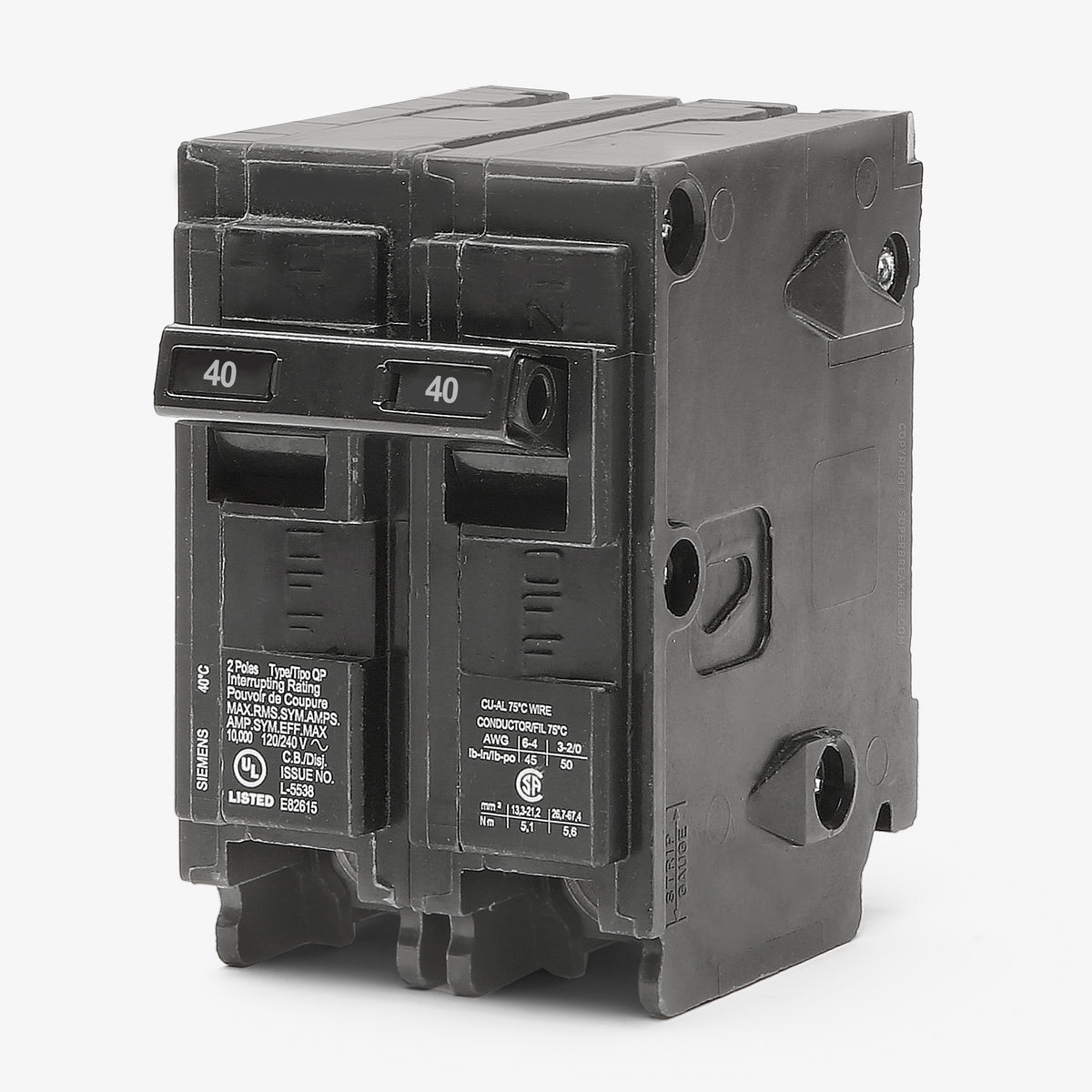

Siemens Q240H Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Siemens
Q240H
Miniature Circuit Breaker
Brand
Siemens
SKU
Q240H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q240H - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Designed to manage higher fault currents, this QPH series component provides an elevated 22kA interrupting capacity for demanding electrical layouts. It installs seamlessly into Siemens EQ, PL, ES, and Ultimate load centers, offering a robust upgrade path for older MP240 installations. The two-pole configuration features a common trip mechanism and HACR rating, making it an excellent choice for heavy-duty HVAC equipment requiring enhanced short-circuit protection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q240H |
| Series | QPH |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ, PL, ES, Ultimate Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat load centers are compatible with the Siemens Q240H?
This plug-on breaker is compatible with Siemens EQ, PL, ES, and Ultimate series load centers. It requires two standard 1-inch spaces on the bus bar.
What is the difference between the Siemens Q240 and the Q240H?
The primary difference is the interrupting capacity. The standard Q240 is rated at 10kAIC, whereas the Q240H is a high-interrupting version rated at 22kAIC for systems with higher available fault currents.
Can the Q240H replace a Murray MP240HT?
Yes. Siemens manufactures the QP/QPH family as the official, UL-listed replacement for legacy Murray MP-T and MP-HT series breakers. The Q240H directly replaces the 22kAIC Murray MP240HT.
Is the Q240H suitable for HVAC equipment?
Yes, the Q240H is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment requiring this safety designation.
What is required if I use the Q240H as a back-fed main breaker?
If you are installing this breaker as a back-fed main in a Siemens panel, NEC regulations require it to be mechanically secured to the bus. You will need to install a compatible hold-down kit, such as the Siemens ECMBR2.
Does the Q240H provide GFCI or AFCI protection?
No, the Q240H is a standard thermal-magnetic breaker providing only overload and short-circuit protection. It does not include ground-fault or arc-fault circuitry.
