Siemens Q325H Miniature Circuit Breaker
- 25A
- 3 Pole
- Plug-On
Siemens
Q325H
Miniature Circuit Breaker
Brand
Siemens
SKU
Q325H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

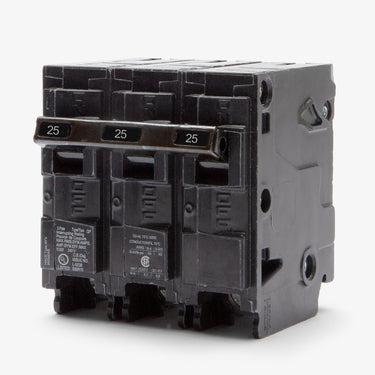

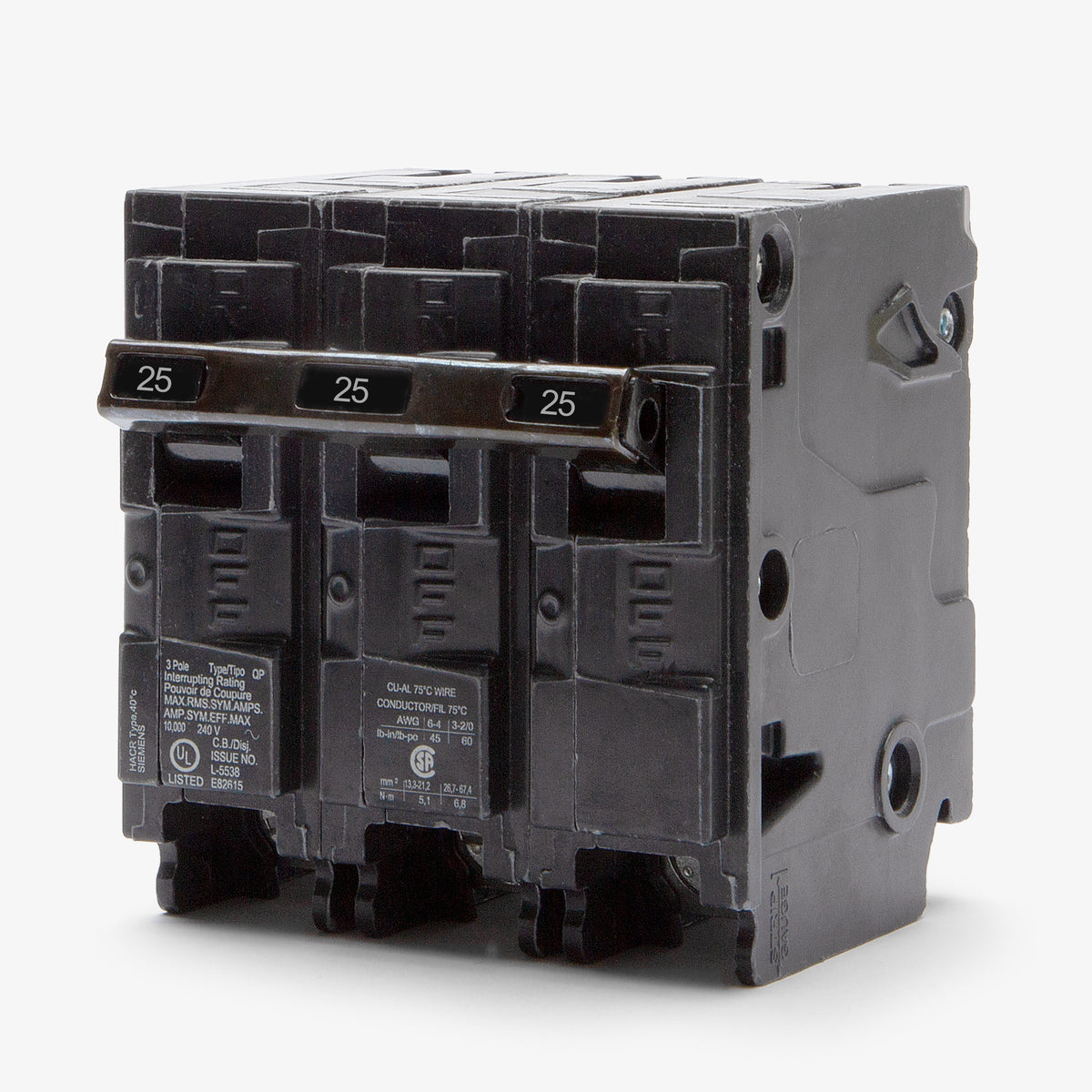

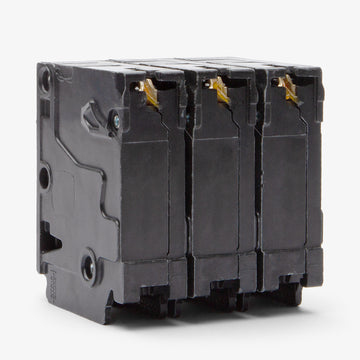

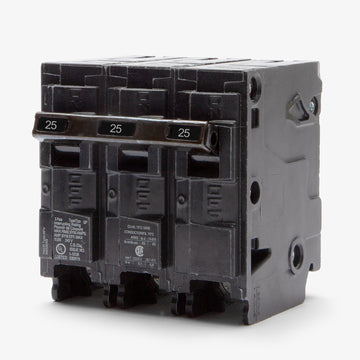

Siemens Q325H - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
Description
Built to handle elevated fault currents, this 25-amp QPH series component delivers a robust 22kAIC interrupting rating at 240VAC. The three-pole configuration provides common trip functionality for commercial and industrial electrical systems. It mounts into Siemens EQ, PL, ES, and Ultimate load centers, serving as a high-capacity upgrade for older Murray MP325 breakers. The unit incorporates Insta-Wire technology to accelerate wiring tasks and is fully HACR rated for air conditioning loads.Specifications
| Brand | Siemens |
|---|---|
| Series | QPH |
| Amperage | 25A |
| Poles | 3 |

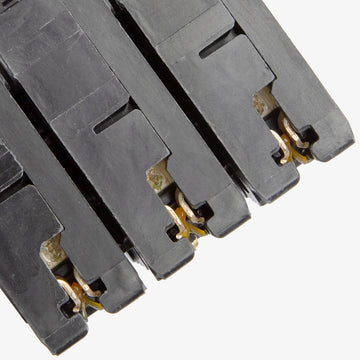

| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |

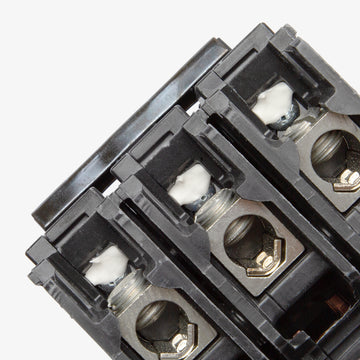

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, EQ, PL, ES, Ultimate Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, High Interrupting Capacity |
Product FAQs
8 answersWhich panel lines are compatible with the Q325H?
The Q325H is a plug-on breaker compatible with Siemens EQ, PL, ES, and Ultimate series load centers. It will also fit legacy Murray and ITE panels that accept QP or QPH type breakers.
What does the H in the Q325H catalog number indicate?
The H designates the QPH series, which features a high interrupting rating of 22kAIC at 240V. This is required for installations where the available fault current exceeds the 10kAIC limit of standard QP breakers.
How many panel spaces does the Q325H require?
This 3-pole breaker requires three full 1-inch spaces in a compatible 3-phase load center.
Can the Q325H replace a standard Q325 breaker?
Yes. The Q325H shares the exact physical dimensions and plug-in mounting as the standard Q325, but upgrades the short-circuit interrupting rating from 10kAIC to 22kAIC.
What is the recommended terminal torque for the Q325H?
The standard lug torque for this breaker is 25 lb-in for 14-6 AWG conductors. Always confirm with the factory label on the side of the breaker prior to termination.
Is the Q325H interchangeable with competitor panels like Square D or GE?
No. Siemens QPH breakers are UL listed exclusively for Siemens, Murray, and select legacy ITE enclosures. Installing them in unapproved competitor panels violates NEC and voids the UL listing.
Does the Q325H include GFCI or AFCI protection?
No. The Q325H is a standard thermal-magnetic breaker with long-time and instantaneous trip functions. It does not provide ground-fault or arc-fault protection.
Can I use the Q325H in a single-phase panel?
No. The Q325H is a 3-pole breaker designed specifically for 3-phase systems. It will not fit properly or function as intended in a standard 120/240V single-phase residential load center.
