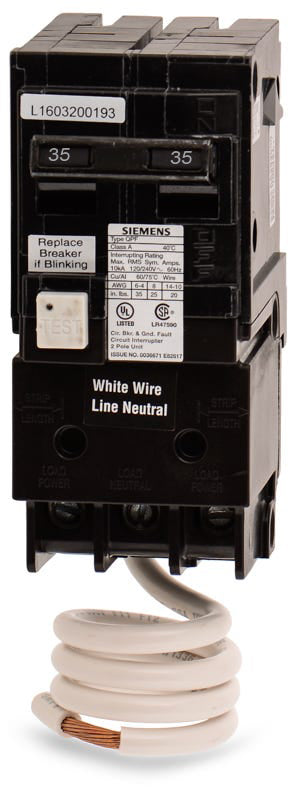

Siemens QF235A GFCI Miniature Circuit Breaker
- 35A
- 2 Pole
- Plug-On
Siemens
QF235A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF235A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF235A - 35A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Built for wet and damp locations, the QF235A provides 35A of thermal-magnetic and ground-fault protection at 120/240V. This two-pole breaker features a pigtail neutral and automated self-testing to meet modern NEC safety standards. It mounts into Siemens PL, ES, EQ, and Ultimate load centers, offering a reliable 10kAIC interrupting rating. As a direct upgrade, this unit replaces the older QF235 model while maintaining full compatibility with existing Siemens panelboards.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF235A |
| Series | QF |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens PL, ES, EQ, Ultimate Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
7 answersCan the Siemens QF235A be installed in legacy Murray load centers?
Yes. Siemens has officially retired the Murray brand. Siemens QP and QPF type breakers, including the QF235A, are UL listed as direct replacements for legacy Murray MP-T and MP-GT breakers in Murray panels.
What is the difference between the Siemens QF235 and the QF235A?
The QF235A is the direct, updated replacement for the obsolete QF235. The A suffix indicates the addition of an automated self-test feature to comply with modern NEC and UL requirements for GFCI protection.
Does this breaker replace the Murray MP235GF?
Yes. Siemens QPF breakers are the UL listed replacements for Murray MP-GT ground fault breakers. The Siemens QF235A directly replaces the obsolete Murray MP235GF.
What is the ground fault trip sensitivity for this breaker?
The QF235A is a Class A GFCI breaker. It is calibrated to trip when it detects a ground fault current of 5mA, providing personnel protection for applications like spas, hot tubs, and wet locations.
How does the self-test feature operate on the QF235A?
The breaker performs an automated internal self-test periodically to ensure the ground fault detection circuitry is functioning. If the self-test fails, the breaker will trip and lock out, indicating that the unit has lost its protective capability and must be replaced.
How is the neutral connection wired for this GFCI breaker?
Because it is a pigtail neutral GFCI, the coiled white pigtail wire must be connected directly to the panel neutral bus. The load neutral wire must be landed on the breaker itself to ensure proper ground fault detection.
Can this pigtail breaker be used in a Siemens Plug-On Neutral (PON) load center?
Yes, it can be installed in a Siemens PON panel. However, because it is a pigtail-style breaker, the coiled white wire must still be manually landed on the neutral bus bar for the GFCI protection to function properly.
