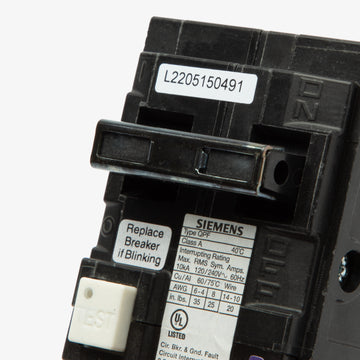

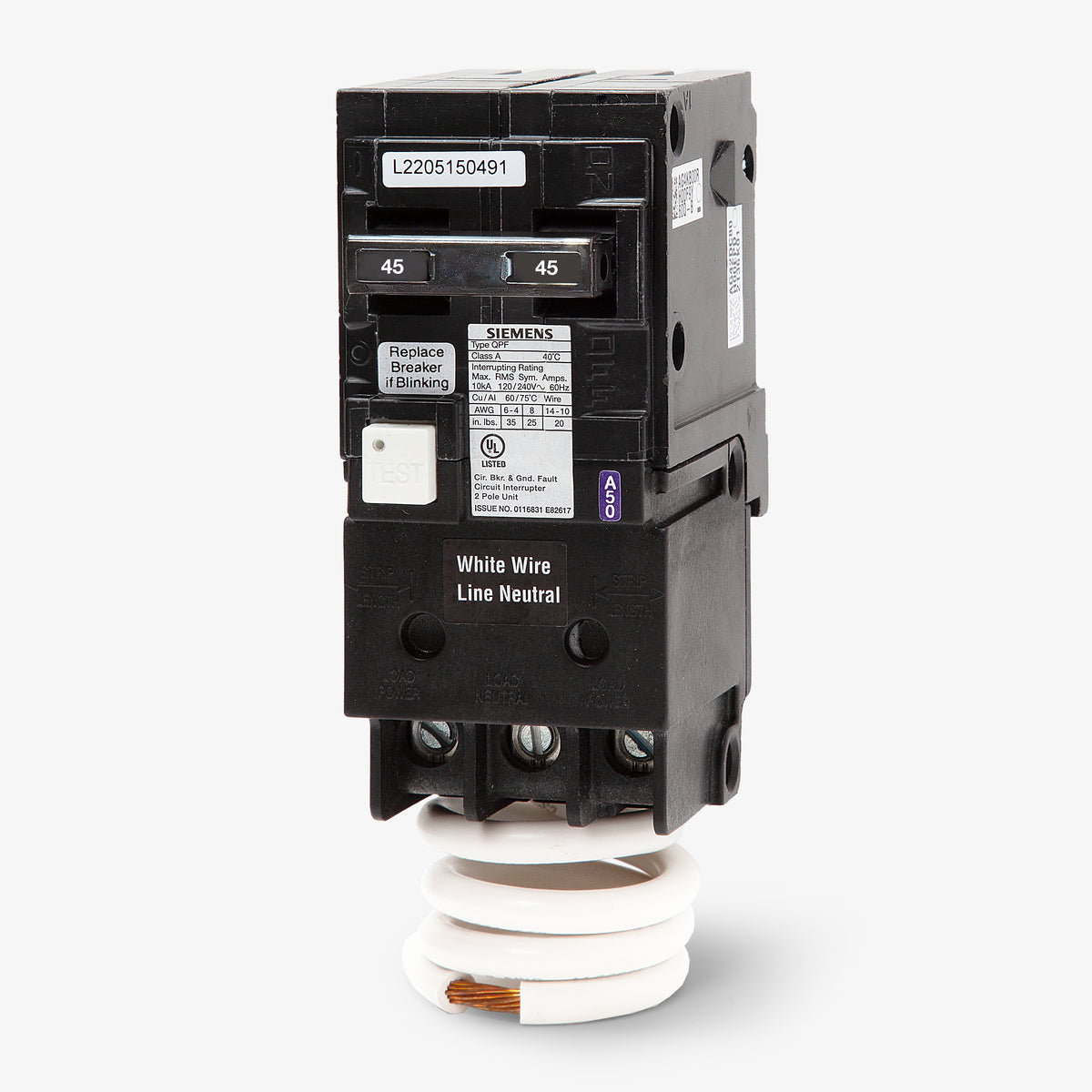

Siemens QF245A GFCI Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
Siemens
QF245A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF245A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF245A - 45A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
50A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description

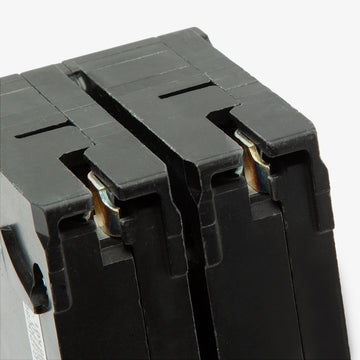

Built for residential and commercial applications, the 45A QF245A delivers reliable 5mA Class A ground-fault protection. It easily installs into Siemens EQ, ES, PL, and Ultimate series load centers via a standard plug-on connection. This updated model replaces the older QF245 and includes modern self-test functionality to meet current UL 943 standards. Featuring a 10kAIC rating at 120/240VAC, it is ideal for securing hot tubs, spas, and other wet-location circuits requiring NEC compliance.Specifications
| Brand | Siemens |
|---|---|
| Series | QF |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (EQ, ES, PL, Ultimate) |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Self-Test |
Product FAQs
6 answersDo I need a load neutral connection if I am powering a straight 240V load?
No, a load neutral is not required for 2-wire 240V circuits. However, the white pigtail wire on the breaker must still be connected to the panel neutral bar for the internal GFCI circuitry to function.
What is the ground fault trip threshold for the QF245A?
This is a Class A GFCI device. It is designed to trip when it detects a ground fault current imbalance of 4 to 6 milliamps.
Does the QF245A include an automatic self-test feature?
Yes, this breaker features continuous self-testing to ensure the ground fault protection is working properly, complying with UL 943 requirements. If the device detects a failure in the GFCI mechanism, it will trip itself.
What is the difference between the Siemens QF245 and the QF245A?
The QF245A is the direct replacement for the obsolete QF245. The A suffix indicates the addition of the automatic self-test functionality required by updated UL standards.
Is the QF245A a Plug-On Neutral breaker?

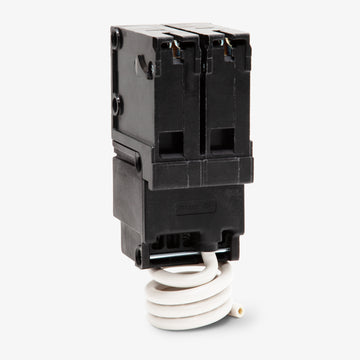

No, this model uses a standard pigtail neutral. The attached white wire must be manually routed and terminated at the neutral bus bar in your load center.
Can this breaker be used for HVAC equipment to meet NEC 2020 requirements?
Yes, the 45A rating and Class A GFCI protection make it suitable for circuits feeding HVAC units and other applications requiring ground fault protection under NEC 2020 Article 210.8(F).
