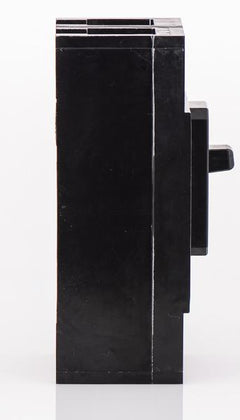

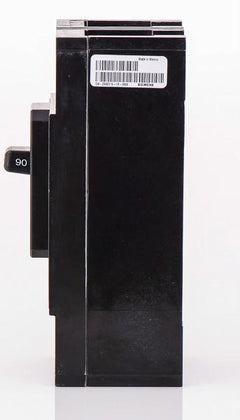

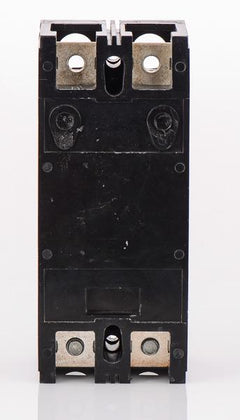

Siemens QJ22B090 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
QJ22B090
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B090 |
| Series | QJ |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Sold out
Quantity
Siemens QJ22B090 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B090-R |
| Series | QJ |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON family, this 90-amp molded case circuit breaker provides essential long-time and instantaneous trip functions for commercial environments. It installs into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards, utilizing a secure bolt-on mounting style. Featuring a 10kAIC rating at 240VAC, this QJ frame unit includes load side lugs and is HACR rated for heating and cooling equipment applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B090 |
| Series | QJ |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersIs the QJ22B090 rated for use with HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Can the QJ22B090 be reverse fed?
Yes, Siemens QJ frame circuit breakers are UL Listed for reverse feed applications, providing flexibility for various panel configurations.
Are load lugs included with the QJ22B090?
Yes, the breaker comes with factory-installed load side lugs (catalog number TA1Q300) that accept both copper and aluminum wiring.
Is the QJ22B090 a current or legacy Siemens breaker?
The QJ frame is a legacy Siemens product. While the newer QR frame serves as the modern replacement for this form factor, QR breakers start at 100 amps, making the 90-amp QJ22B090 necessary for exact 90A replacements.
Can I install a shunt trip or auxiliary switch in the QJ22B090?
No, internal accessories like shunt trips and auxiliary switches are only available for 3-pole QJ breakers. They cannot be installed on 2-pole models like the QJ22B090.
