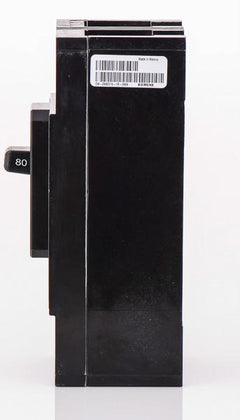

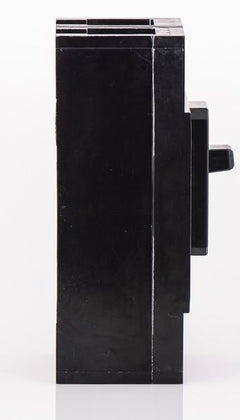

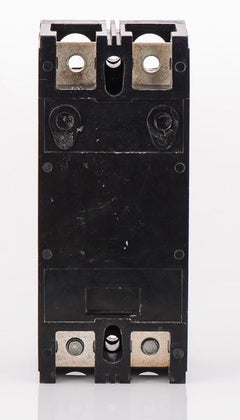

Siemens QJ22B080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Siemens
QJ22B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B080 |
| Series | QJ |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens QJ22B080 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B080-R |
| Series | QJ |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON QJ series, the Siemens QJ22B080 is a 2-pole, 80A molded case circuit breaker. It provides essential thermal magnetic protection with fixed LI trip functions. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards. It includes load side lugs for easy wiring. Note that this model is replaced by the QR22B080, which requires a mounting kit. Delivering a 10kAIC rating at 240VAC, the breaker is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B080 |
| Series | QJ |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersIs the Siemens QJ22B080 still in active production?
The QJ22B080 is a legacy QJ frame breaker that has been replaced by the QR22B080. If you are upgrading to the newer QR frame, a specific mounting kit will be required to install it into older panelboards.
Which Siemens panelboards are compatible with the QJ22B080 circuit breaker?
This bolt-on molded case circuit breaker is designed to mount securely into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and enclosures.
Does the QJ22B080 breaker support reverse feeding?
Yes, this circuit breaker is reverse feed capable, allowing it to be back-fed in applications where the power source is connected to the load terminals.
Is the Siemens QJ22B080 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Are load side lugs included with this QJ frame breaker?
Yes, the breaker comes equipped with load side lugs for immediate wiring. The standard lug kit for this frame is the TA1Q300.
Can I adjust the trip settings on the QJ22B080?
No, this breaker features a non-interchangeable trip unit with fixed thermal and fixed magnetic (LI) protection. The trip settings cannot be adjusted in the field.
