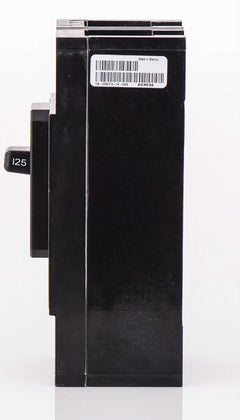

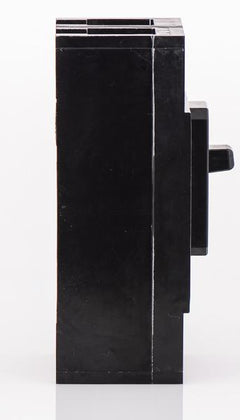

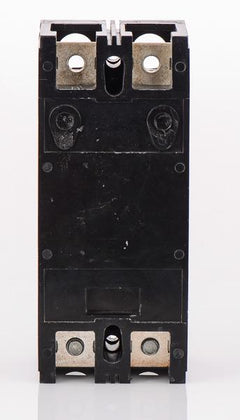

Siemens QJ22B125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Siemens
QJ22B125
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B125 |
| Series | QJ |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens QJ22B125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B125-R |
| Series | QJ |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
110A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial facilities, the Siemens QJ22B125 provides essential overcurrent protection for branch circuits. This 125A, 2-pole molded case circuit breaker ensures reliable power distribution. This breaker bolts into Siemens P1, P2, and P3 panelboards, switchboards, and motor control centers. For modern system upgrades, this legacy QJ-frame model is replaced by the newer QR22B125 series. Rated at 10kAIC at 240VAC, it features non-interchangeable thermal-magnetic trip technology.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B125 |
| Series | QJ |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the QJ22B125 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards and motor control centers.
Is the Siemens QJ22B125 suitable for reverse feed applications?
Yes. Because it features a non-interchangeable trip unit, the QJ22B125 is UL Listed for reverse feeding.
Can the QJ22B125 be used to replace older ITE QJ frame breakers?
Yes, this Siemens QJ frame breaker is a direct replacement for legacy ITE QJ22B125 breakers. For modern system upgrades, the newer QR22B125 series is the current substitute.
What wire sizes are accepted by the lugs on this breaker?
The load side lugs accept 6 AWG to 300 kcmil copper conductors, or 4 AWG to 300 kcmil aluminum conductors.
Does this breaker have an adjustable trip setting?
No, the QJ22B125 features a fixed thermal and fixed magnetic trip unit with standard long-time and instantaneous trip functions.
How does the QJ22B125 mount into the panel?
This is a unit mount, bolt-on circuit breaker. It secures directly to the panelboard bus using bolted connections rather than plugging in.
Is this breaker HACR rated for HVAC equipment?
Yes, Siemens QJ frame breakers like the QJ22B125 are HACR rated, making them suitable for heating, air conditioning, and refrigeration branch circuits.
