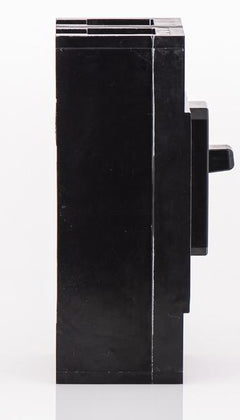

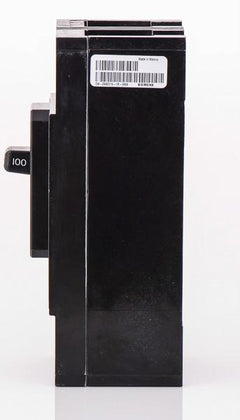

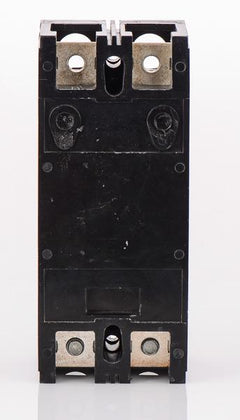

Siemens QJ22B110 Molded Case Circuit Breaker
- 110A
- 2 Pole
- Bolt-On
Siemens
QJ22B110
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B110 - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B110 - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B110 |
| Series | QJ |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Siemens QJ22B110 - 110A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B110-R |
| Series | QJ |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens QJ22B110 is a 110A, two-pole MCCB from the SENTRON family. This QJ-frame unit provides reliable overcurrent protection for 240VAC electrical systems. Designed with a bolt-on mounting style, it installs securely into compatible Siemens panelboards and switchboards. The breaker includes factory-installed load side lugs. Equipped with fixed thermal-magnetic trip technology, it delivers a 10kAIC rating.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B110 |
| Series | QJ |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhich panelboards are compatible with the Siemens QJ22B110?
This bolt-on MCCB is designed to install securely into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and motor control centers.
Can I use the Siemens QJ22B110 to replace an older ITE QJ22B110?
Yes. Siemens acquired ITE, and the Siemens QJ22B110 is the exact, direct replacement for the legacy ITE QJ22B110 circuit breaker.
What is the difference between the Siemens QJ22B110 and the newer QR22B110?
The QJ frame is a legacy model that has been succeeded by the QR frame series. While they share the same form and fit, the newer QR breakers offer field-installable internal accessories and a push-to-trip button. The QJ22B110 remains a direct replacement for existing QJ installations.
What does the B in the QJ22B110 part number indicate?
The B indicates that this is a bolt-on circuit breaker, designed to be bolted directly to the panelboard bus, as opposed to a plug-in connection.
