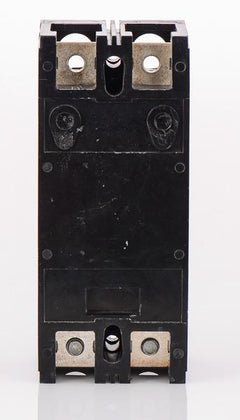

Siemens QJ22B150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Unit Mount
Siemens
QJ22B150
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens QJ22B150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B150 |
| Series | QJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Siemens QJ22B150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B150-R |
| Series | QJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty distribution, the Siemens QJ22B150 is a 2-pole, 150A molded case circuit breaker. It operates at 240VAC and utilizes a trip-free mechanism with fixed thermal and magnetic elements to ensure consistent performance in demanding environments. The breaker mounts into Siemens P1, P2, and P3 panelboards, along with compatible switchboards and meter centers. For legacy system maintenance, it is a direct fit, while the QR22B150 serves as the modern replacement.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B150-R |
| Series | QJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens QJ22B150 circuit breaker?
The QJ22B150 is a bolt-on unit mount breaker designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards and modular meter centers.
Is the Siemens QJ22B150 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with compatible heating, air conditioning, and refrigeration equipment where permitted by local electrical codes.
Can the QJ22B150 be reverse fed?
Yes, this QJ frame breaker is reverse feed capable, allowing it to be used in applications where power is fed from the load side.
Are there versions of the QJ22B150 with a higher interrupting rating?
Yes, if your application requires a higher short-circuit rating than the standard 10kAIC, you can use the QJH22B150 which is rated at 22kAIC, or the QJ22B150H which is rated at 42kAIC at 240VAC.
What is the ambient operating temperature rating for the QJ22B150?
This thermal-magnetic circuit breaker is calibrated for a maximum ambient operating temperature of 40 degrees Celsius (104 degrees Fahrenheit).
What is the modern replacement for the QJ22B150?
The QJ frame is a legacy series. For modern replacements, it crosses over to the Siemens QR frame, such as the QR22B150L. Note that installing a QR breaker in an older QJ space may require a specific mounting kit.
