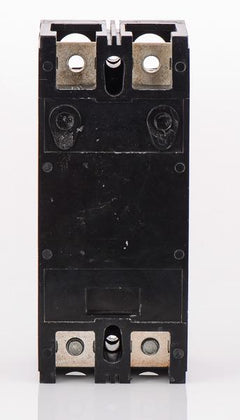

Siemens QJ22B175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
Siemens
QJ22B175
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B175 |
| Series | QJ |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Siemens QJ22B175 - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B175-R |
| Series | QJ |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens QJ22B175 serves as a 2-pole, 175A molded case circuit breaker from the SENTRON family. This unit mount MCCB fits Siemens P1, P2, and P3 panelboards, switchboards, and meter centers. It is officially replaced by the newer QR22B175 for facility upgrades. Featuring fixed thermal-magnetic trip units, it delivers standard LI protection. The breaker is rated for 10kAIC at 240VAC and includes load side lugs for straightforward termination.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B175 |
| Series | QJ |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens QJ22B175?
This 2 pole breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and meter centers.
Has the Siemens QJ22B175 been replaced by a newer model?
Yes, the QJ22B175 is officially replaced by the newer QR22B175 for facility upgrades. Both share similar mounting and application profiles.
What wire sizes are accepted by the lugs on the QJ22B175?
The load side lugs accept 6 AWG to 300 kcmil copper wire, or 4 AWG to 300 kcmil aluminum wire.
Can this breaker replace older ITE models?
Yes, this breaker is also known as the ITE QJ22B175 and can be used to replace older ITE branded versions of the same frame.
How does the QJ22B175 mount into the panel?
It features a unit mount, bolt-on connection type for secure installation directly to the bus in compatible panelboards and switchboards.
What type of trip unit is equipped on the QJ22B175?
It features a fixed thermal and fixed magnetic trip unit, providing standard long time and instantaneous (LI) protection.
Does the QJ22B175 provide ground fault or arc fault protection?
No, this breaker is equipped with a standard thermal magnetic trip unit for overload and short circuit protection. It does not include GFCI or AFCI capabilities.
