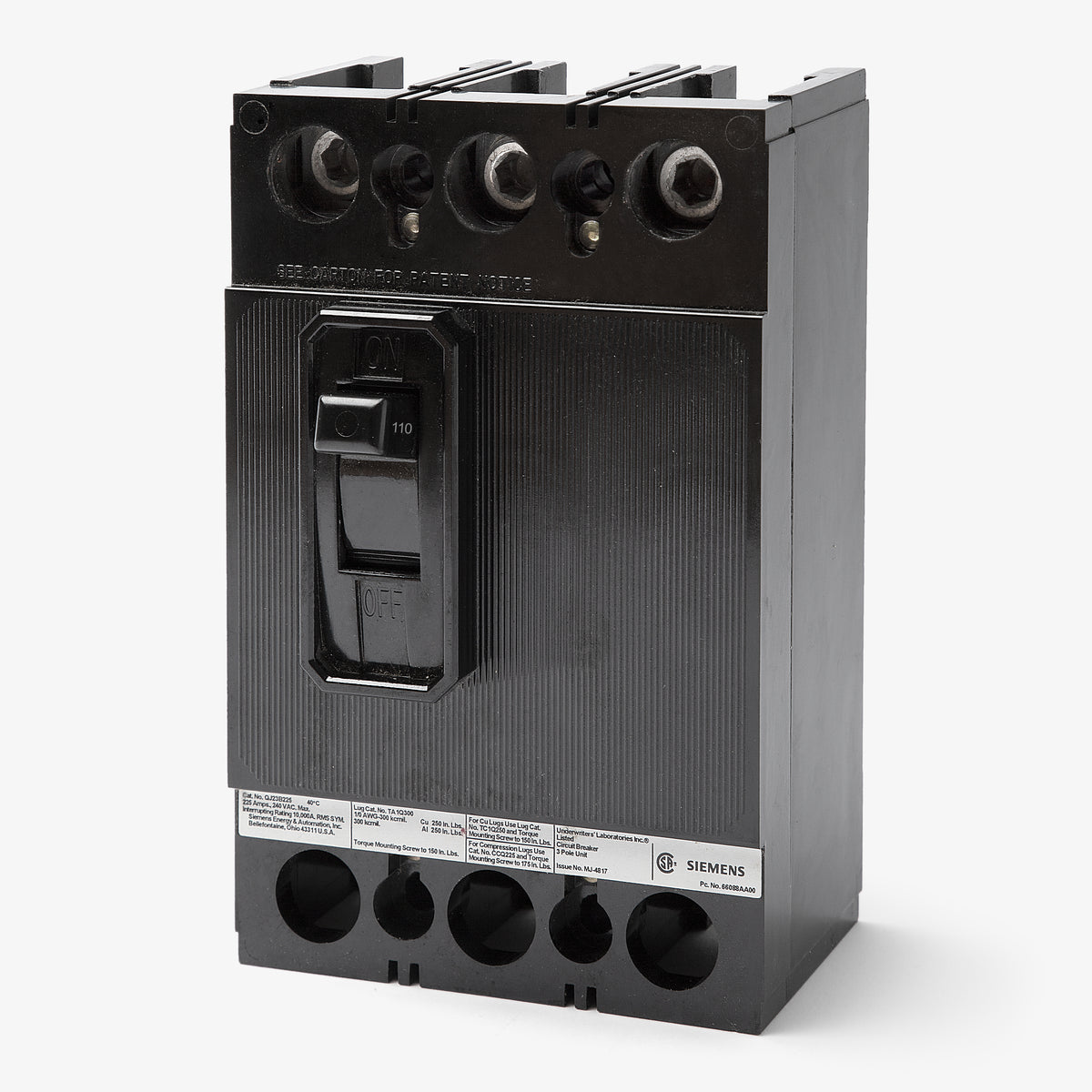

Siemens QJ23B110H Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
QJ23B110H
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B110H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B110H - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ23B110H - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B110H |
| Series | QJ |
| Amperage | 110A |
| Poles | 3 |

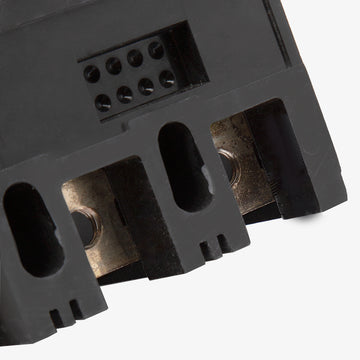

| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|

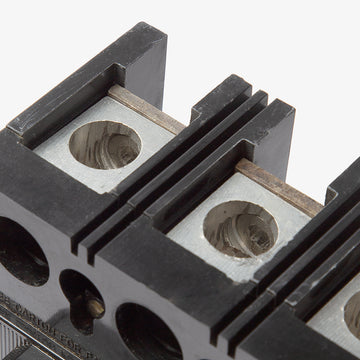

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
Siemens QJ23B110H - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B110H-R |
| Series | QJ |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
90A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron series, this Siemens 110A MCCB is engineered for commercial and industrial applications. It delivers reliable thermal-magnetic protection with fixed LI trip functions. The bolt-on breaker installs into Siemens P1, P2, and P3 panelboards, switchboards, and motor control centers. Featuring a high interrupting capacity of 42kA at 240VAC, this QJ frame unit is HACR and reverse feed rated for versatile installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B110H |
| Series | QJ |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersCan I install the QJ23B110H in a standard residential load center?
No, this is a bolt-on molded case circuit breaker designed for commercial and industrial distribution. It is compatible with Siemens P1, P2, and P3 panelboards, switchboards, and motor control centers, but will not fit in standard plug-on residential load centers.
What does the "H" in the QJ23B110H catalog number indicate?
The "H" designates this as a high-interrupting circuit breaker. It features a 42kAIC rating at 240VAC, providing higher fault current protection than the standard 10kAIC rating of the base QJ23B110 model.
Can I use the QJ23B110H to replace an older ITE circuit breaker?
Yes, Siemens acquired ITE and continued manufacturing the QJ frame. The Siemens QJ23B110H is a direct, drop-in replacement for the legacy ITE QJ23B110H.
Is the Siemens QJ23B110H suitable for reverse feeding?
Yes, this QJ frame circuit breaker is reverse-feed capable, allowing it to be back-fed in applications where the power source is connected to the load terminals.
Has the Siemens QJ frame been replaced by a newer series?
Yes, the QJ frame is a legacy design that has been officially superseded by the newer Siemens QR frame series. However, QJ breakers like the QJ23B110H are still manufactured and widely used as direct replacements in existing QJ-provisioned equipment.
Is the QJ23B110H rated for use with HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
