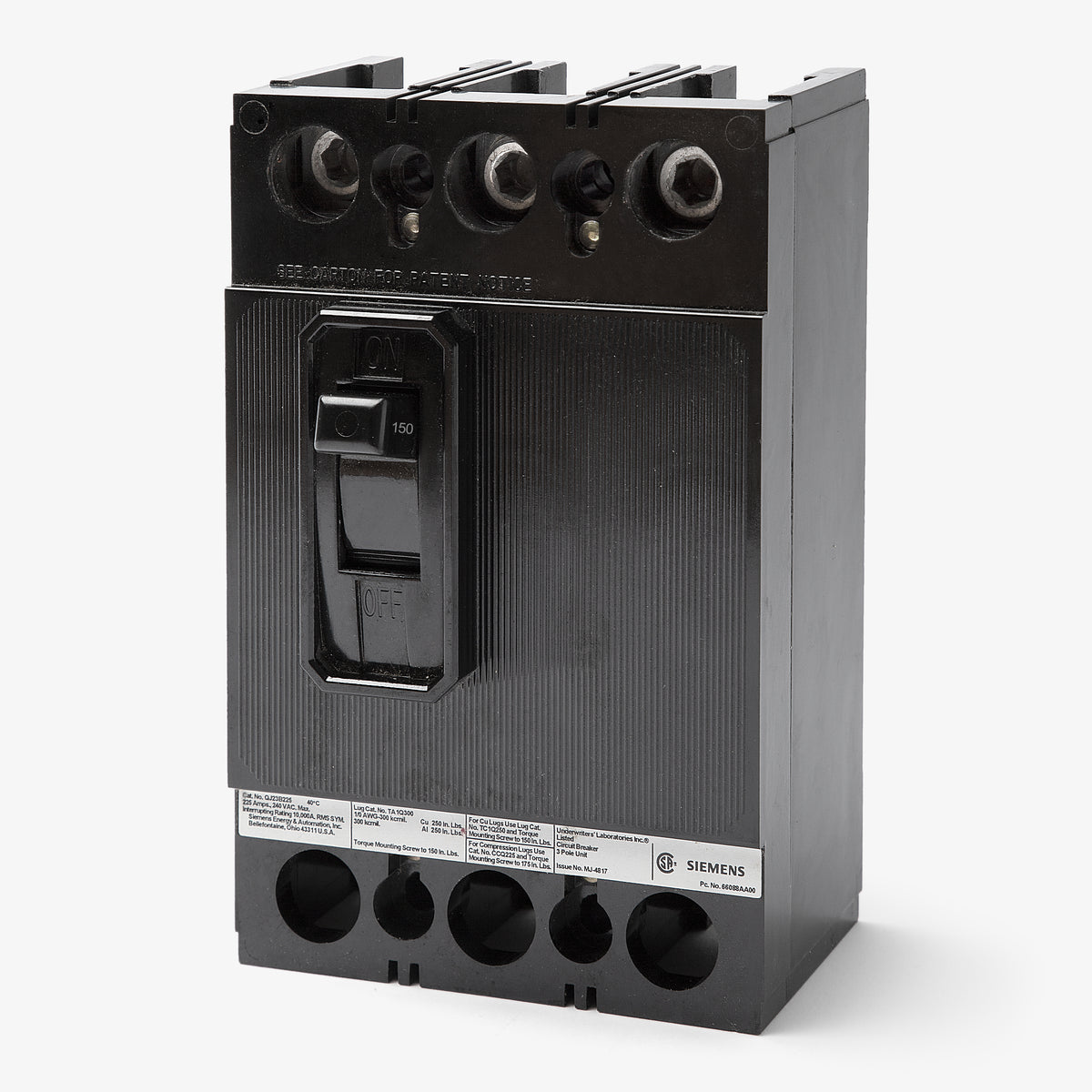

Siemens QJ23B150H Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Siemens
QJ23B150H
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B150H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B150H - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ23B150H - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B150H-R |
| Series | QJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |

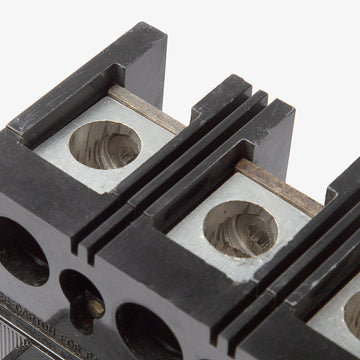

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-300 kcmil (Cu), 4 AWG-300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Common Trip, High Interrupting Capacity |
Quantity
Siemens QJ23B150H - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B150H-R |
| Series | QJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-300 kcmil (Cu), 4 AWG-300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Common Trip, High Interrupting Capacity |
Similar Items
110A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial distribution, the Siemens QJ23B150H provides robust thermal-magnetic protection. This 3-pole, 150A molded case circuit breaker delivers reliable long-time and instantaneous trip functions. It features a bolt-on mounting style designed to integrate into Siemens panelboards and switchboards. For facility managers upgrading older systems, this QJ frame unit is replaced by the newer QR23B150H model. Rated for 42kAIC at 240VAC, it offers high interrupting capacity.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B150H-R |
| Series | QJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-300 kcmil (Cu), 4 AWG-300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Common Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat panels and equipment are compatible with the QJ23B150H?
This bolt-on breaker is designed for installation in Siemens panelboards, switchboards, and motor control centers that accept QJ or QR frame breakers.
What does the H in the QJ23B150H catalog number signify?
The H indicates a high interrupting capacity. This model is rated for 42kA at 240VAC, which is significantly higher than the standard 10kA rating of the base QJ23B150 model.
Is the QJ23B150H still in active production?
The QJ frame is a legacy series that has been replaced by the newer QR frame. The direct modern replacement for this breaker is the QR23B150H.
Is the Siemens QJ23B150H suitable for HVAC applications?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
What wire materials and sizes are accepted by the factory lugs?
The included lugs accept both copper and aluminum conductors. The supported wire range is 6 AWG to 300 kcmil for copper, and 4 AWG to 300 kcmil for aluminum.
Are the trip settings on the QJ23B150H adjustable?
No, this breaker features a fixed thermal-magnetic trip unit providing Long-Time and Instantaneous (LI) protection. The trip settings are non-interchangeable and cannot be adjusted in the field.
