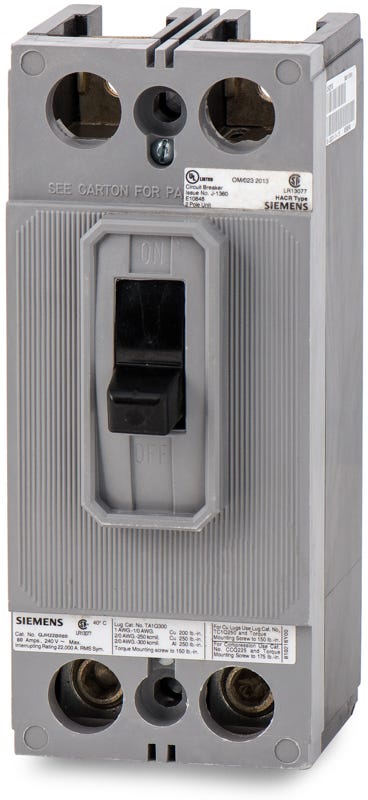

Siemens QJH22B080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Siemens
QJH22B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH22B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH22B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJH22B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B080 |
| Series | QJH |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Sold out
Quantity
Siemens QJH22B080 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B080-R |
| Series | QJH |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding power distribution networks, the Siemens QJH22B080 is an 80A, 2-pole molded case circuit breaker from the Sentron family. It mounts securely into Siemens P1 through P5 panelboards, switchboards, and multi-family meter centers using a standard bolt-on connection. Delivering a 22kAIC interrupting rating at 240VAC, this QJ frame breaker features fixed thermal-magnetic trip units, reverse feed capability, and comes equipped with load side lugs for immediate wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH22B080 |
| Series | QJH |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
8 answersWhat panels are compatible with the Siemens QJH22B080?
The QJH22B080 is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards and meter centers.
What is the difference between the QJ22B080 and the QJH22B080?
The difference is the interrupting rating. The standard QJ22B080 has a 10kAIC rating at 240VAC, while the QJH22B080 features a higher 22kAIC rating at 240VAC.
Is there a 42kAIC version of this 80A breaker available?
Yes. If your system requires a 42kAIC interrupting rating at 240VAC, you can use the QJ22B080H instead of the 22kAIC QJH22B080.
What are the lug wire capacity limits for the QJH22B080?
The standard factory-installed lugs on this breaker accommodate 6 AWG to 300 kcmil copper conductors, or 4 AWG to 300 kcmil aluminum conductors.
Can the QJH22B080 be reverse fed?
Yes. Siemens QJ frame breakers, including the QJH22B080, are UL Listed for reverse feed applications.
Does the QJH22B080 feature interchangeable trip units?
No. Siemens QJ frame breakers have non-interchangeable, fixed thermal-magnetic trip units and are shipped fully assembled.
How is the QJH22B080 installed in a panelboard?
It is a bolt-on breaker that fastens directly to the bus bar of compatible Siemens panelboards. This bolted connection provides a secure, vibration-resistant fit for commercial and industrial applications.
What protection functions does the QJH22B080 provide?
It is equipped with a fixed thermal-magnetic trip unit that provides Long-Time (L) protection against sustained overloads and Instantaneous (I) protection against short circuits.
