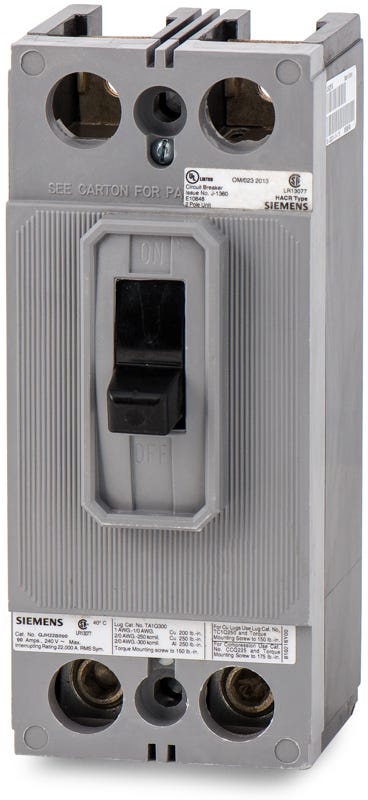

Siemens QJH22B090 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
QJH22B090
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH22B090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH22B090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJH22B090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B090 |
| Series | QJH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Sold out
Quantity
Siemens QJH22B090 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B090-R |
| Series | QJH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
110A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Siemens QJH22B090 delivers reliable 90A, 2-pole overcurrent protection. It utilizes a thermal-magnetic trip mechanism to safeguard circuits against overloads. This QJ frame breaker mounts into Siemens P1 through P5 panelboards and meter centers. It includes load side lugs accepting up to 300 kcmil wire. With a 22kAIC interrupt rating at 240VAC, this breaker is HACR rated and supports reverse feed installations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH22B090 |
| Series | QJH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhat panelboards are compatible with the QJH22B090?
This QJ-frame breaker is designed for bolt-on installation in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible switchboards and meter centers.
What does the H in the QJH22B090 catalog number signify?
The H indicates a high interrupting rating. While the standard QJ22B090 is rated at 10kAIC at 240VAC, the QJH22B090 provides a higher 22kAIC rating for systems with greater available fault current.
Are there other interrupting ratings available for this 90A QJ-frame breaker?
Yes. If your system requires a different short-circuit rating, the standard QJ22B090 offers 10kAIC, and the QJ22B090H provides an extra-high 42kAIC at 240VAC.
What wire sizes are accepted by the lugs on the QJH22B090?
The load-side lugs accept 6 AWG to 300 kcmil copper wire, or 4 AWG to 300 kcmil aluminum wire.
Can the QJH22B090 be reverse fed?
Yes, this thermal-magnetic breaker supports reverse feed installations, allowing for greater flexibility when wiring your panel or enclosure.
Is this breaker suitable for heating and cooling equipment?
Yes, the QJH22B090 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-type circuit protection.
What type of trip unit is equipped on this breaker?
It features a non-interchangeable thermal-magnetic trip unit providing standard Long-Time and Instantaneous (LI) overcurrent and short-circuit protection.
