Siemens QRH23B250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Bolt-On
Siemens
QRH23B250
Molded Case Circuit Breaker
Brand
Siemens
SKU
QRH23B250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

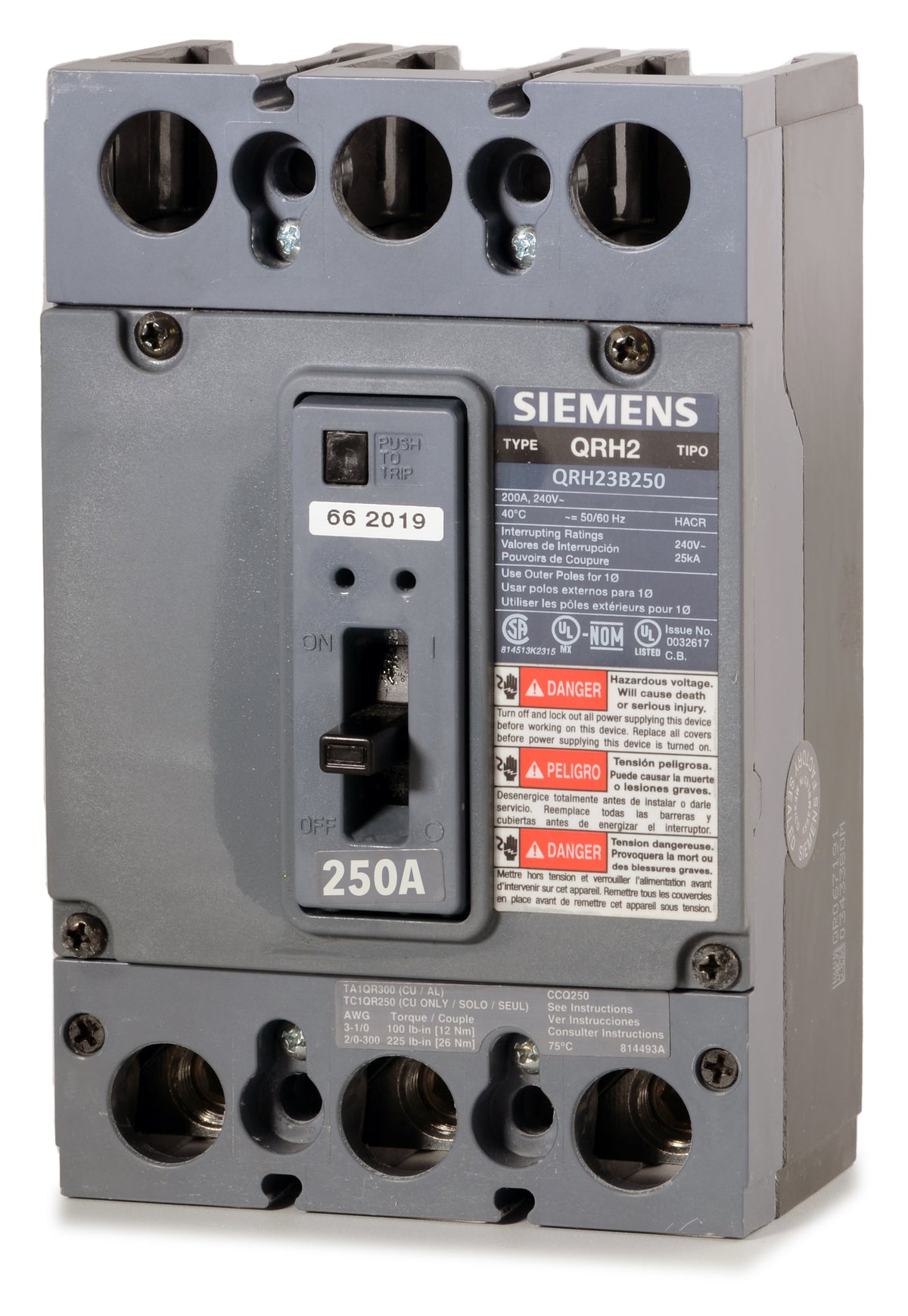

Siemens QRH23B250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, this 250A bolt-on breaker provides dependable thermal-magnetic protection. The QRH series features a 25kA interrupt rating at 240V, ensuring safety during high-fault events. Engineered for seamless integration, it mounts into Siemens P2 panelboards, switchboards, and motor control centers. It effectively replaces the discontinued QJ23B250 model. This unit includes load-side lugs accepting 250-300 kcmil copper wire and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QRH23B250 |
| Series | QRH |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250-300 kcmil (Cu Only) |
| Max Wire | 300 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards and switchboards are compatible with the QRH23B250?
This bolt-on breaker is designed for use with Siemens P2 panelboards, switchboards, and motor control centers.
Can the QRH23B250 replace older QJ frame circuit breakers?
Yes, the QRH23B250 shares the same form factor and mounting as the legacy QJ family. It serves as a direct replacement for the discontinued QJ23B250 and QJH23B250 models.
What is the difference between the QR23B250 and the QRH23B250?
The QRH23B250 features a higher interrupting rating of 25kAIC at 240V AC. The standard QR23B250 has a lower interrupting rating of 10kAIC at 240V AC.
What wire size and material are accepted by the lugs on this breaker?
The included lugs accept 250 to 300 kcmil copper wire only.
Are the thermal and magnetic trip settings adjustable on the QRH23B250?
No, this breaker features a thermal magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
