Square D BDA34080Y Molded Case Circuit Breaker
- 80A
- 3 Pole
- I-Line
Square D
BDA34080Y
Molded Case Circuit Breaker
Brand
Square D
SKU
BDA34080Y
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

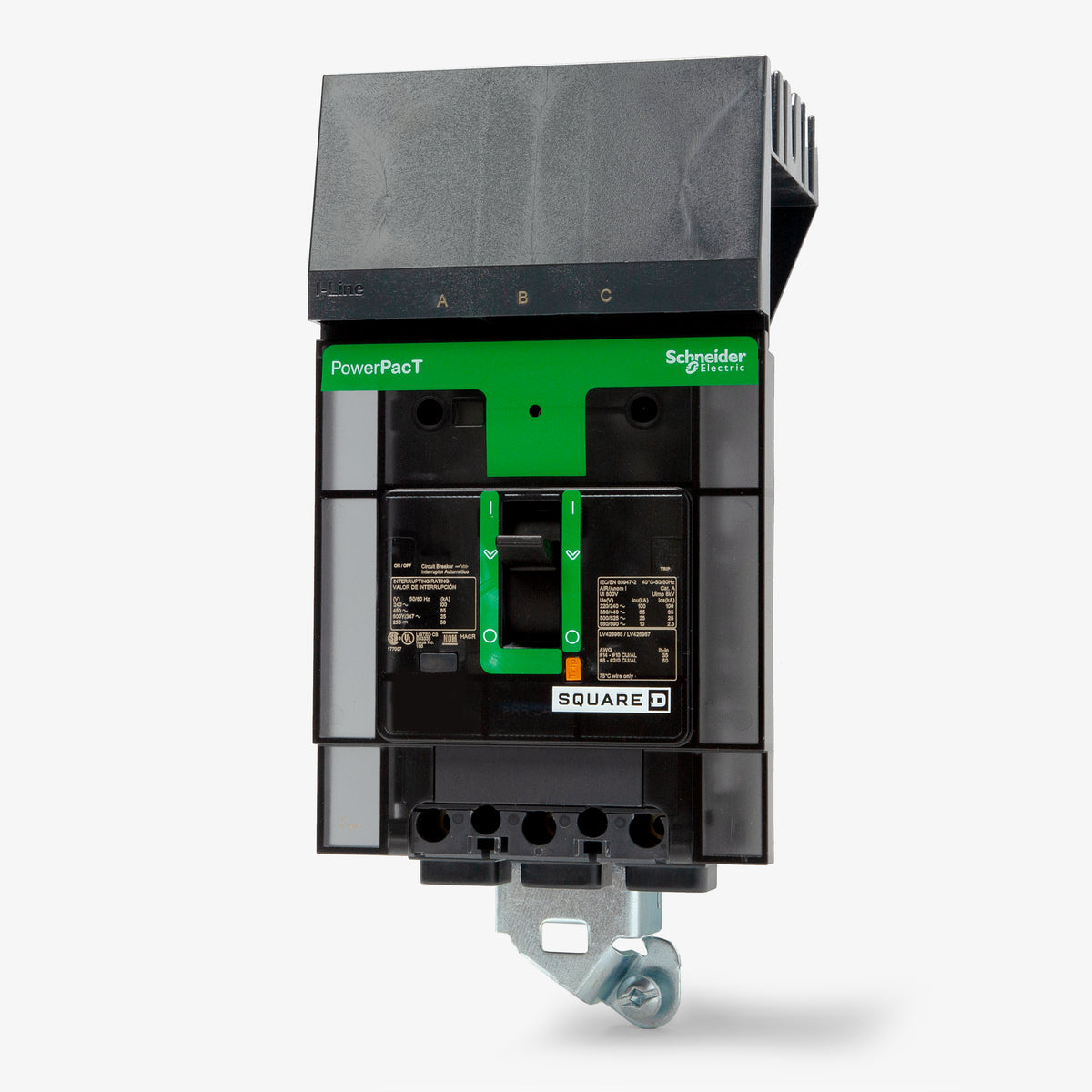

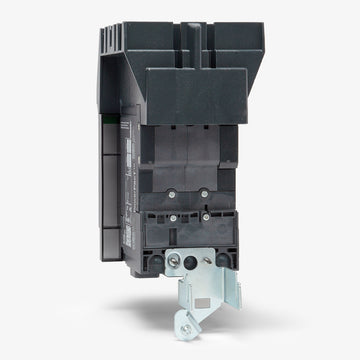

Square D BDA34080Y - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial power distribution, the Square D BDA34080Y is a 3-pole, 80A MCCB from the PowerPacT B-Frame family. It features a fixed thermal-magnetic trip unit providing precise long-time and instantaneous (LI) protection. This unit is designed to plug into Square D I-Line panelboards and switchboards. It also functions as a seamless replacement for discontinued FA34080 breakers.Specifications
| Brand | Square D |
|---|---|
| Series | BDA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, 80% Rated |
Product FAQs
8 answersWhat panelboards are compatible with the BDA34080Y?
This I-Line plug-in circuit breaker is designed exclusively for use in Square D I-Line panelboards and switchboards.
What is the direct replacement for the discontinued FA34080 circuit breaker?
The PowerPacT B-Frame BDA34080Y is the designated replacement for the legacy F-Frame FA34080. It fits the same I-Line panelboard space and offers upgraded performance for retrofit applications.
How much mounting space does this 3-pole breaker require in an I-Line panel?
The 3-pole PowerPacT B-Frame circuit breaker requires 4.5 inches of I-Line mounting space, which equates to 1.5 inches per pole.
Can the BDA34080Y be used in DC voltage applications?
Yes, this breaker is dual-rated for AC and DC applications. It carries a DC interrupting rating of 10kA at 250VDC.
Are the trip settings adjustable on the BDA34080Y?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip settings.
Is this breaker rated for 100% continuous loading?
No, standard PowerPacT B-Frame breakers like the BDA34080Y are rated for 80% continuous loading per NEC requirements.
Does this breaker feature a push-to-trip button?
Yes, all PowerPacT B-Frame circuit breakers include an integral push-to-trip button on the cover. This allows you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
What type of contacts are used inside the PowerPacT B-Frame breakers?
All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts. This design reduces the amount of peak current during a short circuit fault, lowering let-through currents and enhancing equipment protection.
