Square D BDL26025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Unit Mount
Square D
BDL26025
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

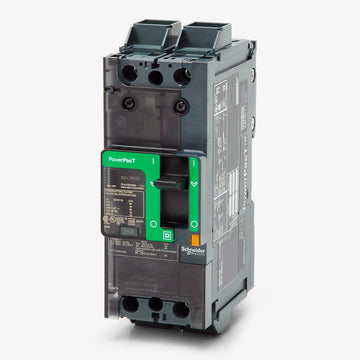

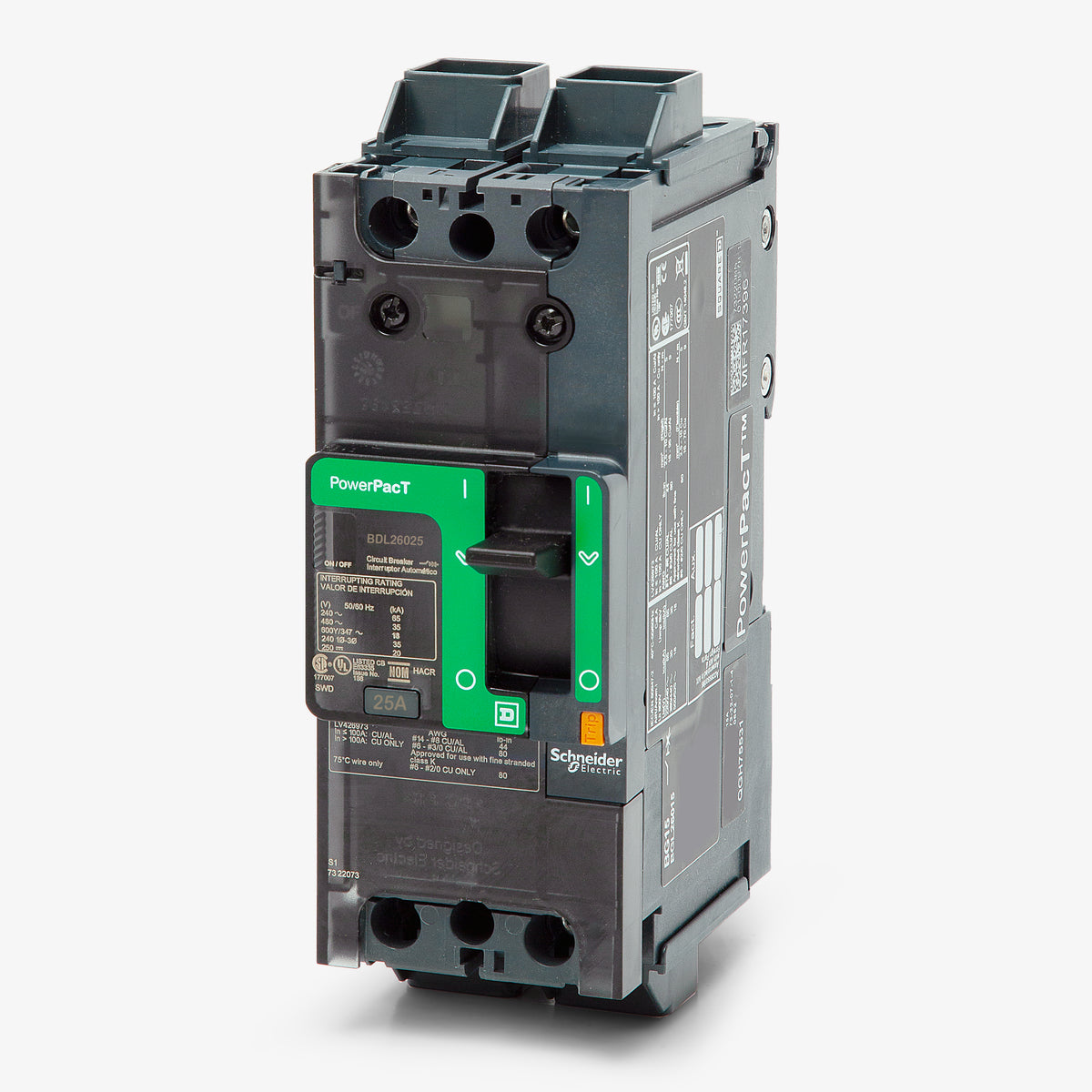

Square D BDL26025 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Engineered for reliable power distribution, the BDL26025 is a 2-pole, 25A molded case circuit breaker from Square D. It utilizes fixed thermal and magnetic trip elements to provide essential protection. The inclusion of EverLink lugs ensures a secure, creep-compensating connection. This unit mount breaker is equipped with an integrated DIN rail adapter for installation in industrial control panels. It is an excellent upgrade for the discontinued FAL26025, offering an 18 kAIC rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | BDL26025 |
| Series | BDL |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|

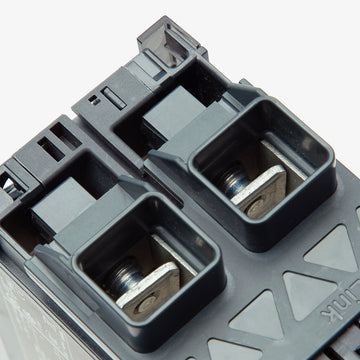

| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, NEMA AB 1, UL 489, GB 14048.2, NMX J-266 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
7 answersWhat is the recommended tightening torque for the lugs on the BDL26025?
For 14 to 4 AWG wire, torque the lugs to 44.3 lb-in (5 N.m). For 3 to 3/0 AWG wire, torque to 79.7 lb-in (9 N.m).
Can the BDL26025 be mounted on a DIN rail?

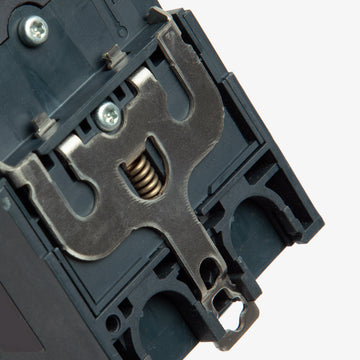

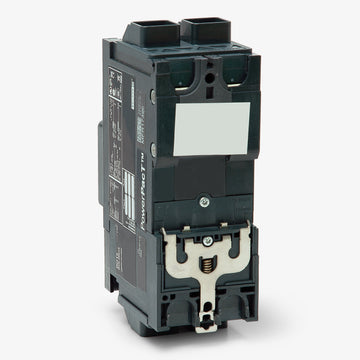

Yes. As a unit-mount PowerPacT B-frame breaker, it features integrated DIN rail mounting capability alongside traditional back pan mounting.
What does the D in the BDL26025 catalog number indicate?
The D designates the interrupting rating tier for this PowerPacT B-frame breaker, which provides 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600Y/347VAC.
Does the BDL26025 support field-installable accessories?
Yes, this breaker features slots for plug-in accessories, including one auxiliary switch (OF) and one voltage release, such as an MN undervoltage release or MX shunt trip.
What type of lugs are included with the BDL26025?
This breaker comes factory-equipped with EverLink lugs on both the line and load ends. These lugs are designed to combat cable creep and maintain a secure connection for 14 to 3/0 AWG aluminum or copper wire.
What internal contact design does the PowerPacT BDL26025 use?
It utilizes dual-break rotating contacts, which reduce the amount of peak current and let-through energy during a short circuit fault to enhance equipment protection.
Is the BDL26025 rated for 100 percent continuous current?
No, standard PowerPacT B-frame thermal-magnetic circuit breakers like the BDL26025 are rated for 80 percent continuous current per NEC guidelines.
