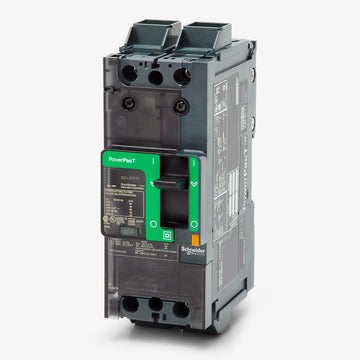

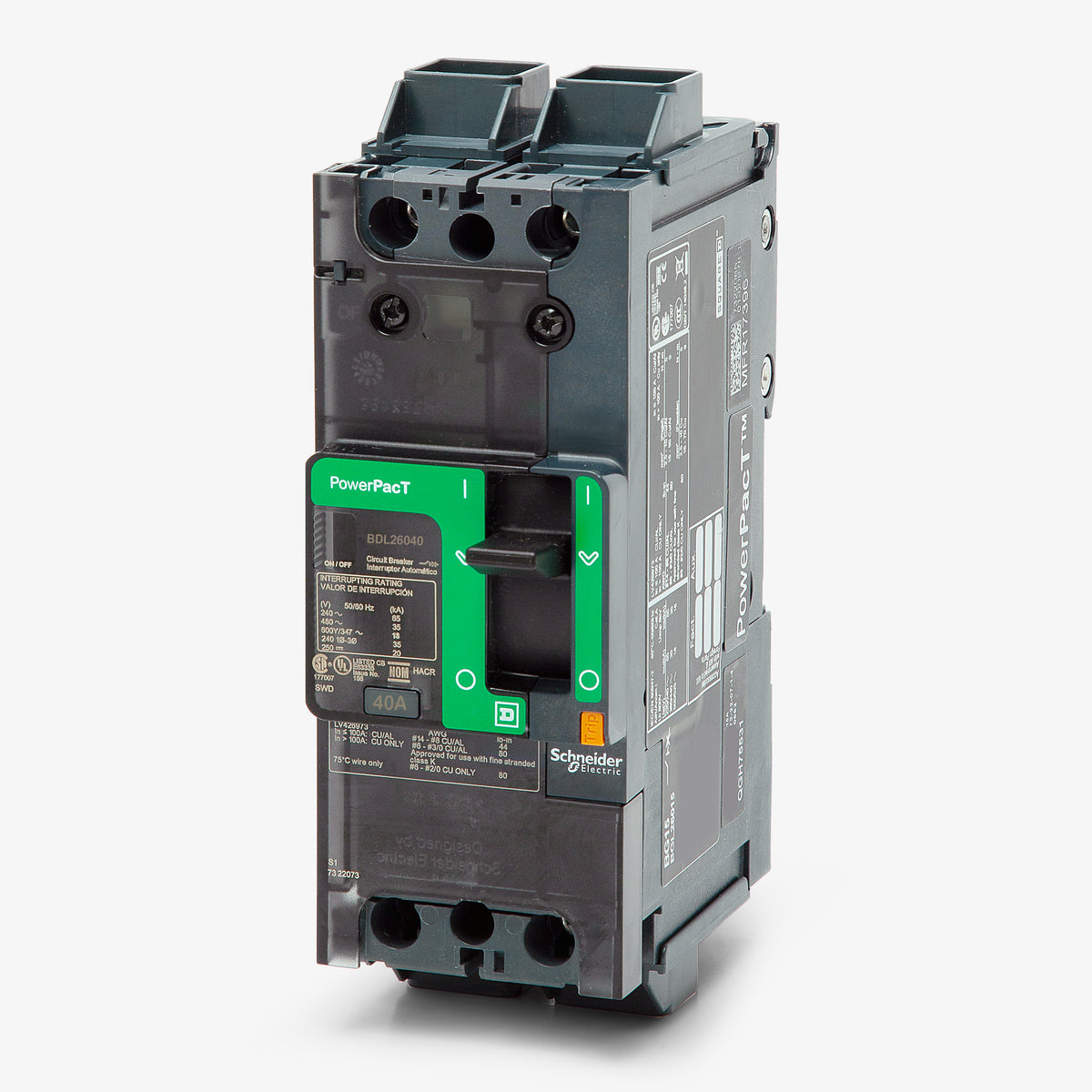

Square D BDL26040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Unit Mount
Square D
BDL26040
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDL26040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Delivering robust thermal-magnetic protection, the Square D BDL26040 is a 40A, 2-pole molded case circuit breaker. It is built for demanding commercial and industrial switchboards. This PowerPact B-frame unit installs via back pan or integrated DIN rail. It is an exact substitute for the legacy FAL26040, making retrofits seamless. Featuring an 18 kAIC rating at 480VAC, it utilizes EverLink creep-compensating lugs to prevent cable loosening over time.Specifications
| Brand | Square D |
|---|---|
| Part Number | BDL26040 |
| Series | BDL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator, Terminal Shields |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, NEMA AB 1, UL 489, GB 14048.2, NMX J-266 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
7 answersHow is the BDL26040 circuit breaker mounted?

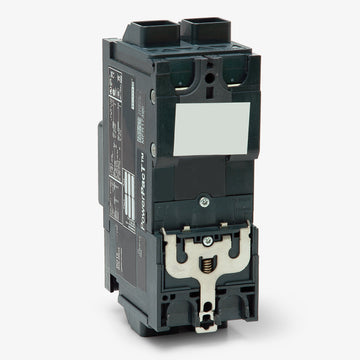

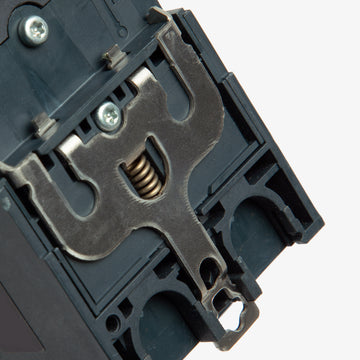

This unit mount breaker can be installed using traditional back pan mounting with screws or snapped directly onto a standard 15 x 35 mm DIN rail using its integrated mounting channel.
What are the torque specifications for the lugs on the BDL26040?
The EverLink lugs require 44.3 lb-in (5 N.m) of torque for 14 to 4 AWG wire, and 79.7 lb-in (9 N.m) of torque for 3 to 3/0 AWG wire.
Can the PowerPacT BDL26040 replace older Square D circuit breakers?
Yes, the PowerPacT B-frame series is the designated replacement for legacy Square D F-frame breakers, such as the FAL and FHL series commonly used in control panels.
What does the D in the BDL26040 part number signify?
The D indicates the interrupting rating level for this PowerPacT B-frame breaker, which provides 18kA at 480VAC and 14kA at 600Y/347VAC.
What does the L in the BDL26040 catalog number indicate?
The L indicates that this is a unit mount circuit breaker equipped with lugs on both the line and load ends, as opposed to an I-Line plug-on connection.
What type of wire terminals are included with this breaker?

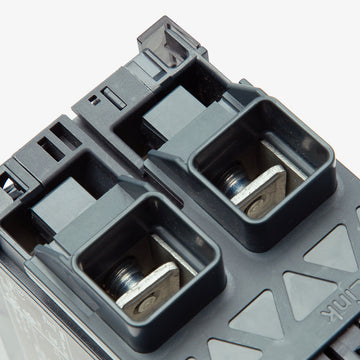

The BDL26040 comes with patented EverLink lugs on both the line and load ends. These lugs are designed to maintain constant contact pressure on fine stranded or rigid aluminum and copper conductors, reducing loosening over time.
Does this breaker feature a push-to-trip button?
Yes, all PowerPacT circuit breakers include an integral push-to-trip button on the cover to manually trip the breaker and verify the mechanical operation of the trip mechanism.
