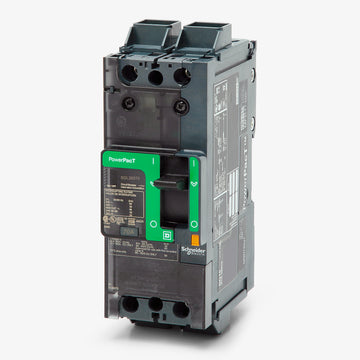

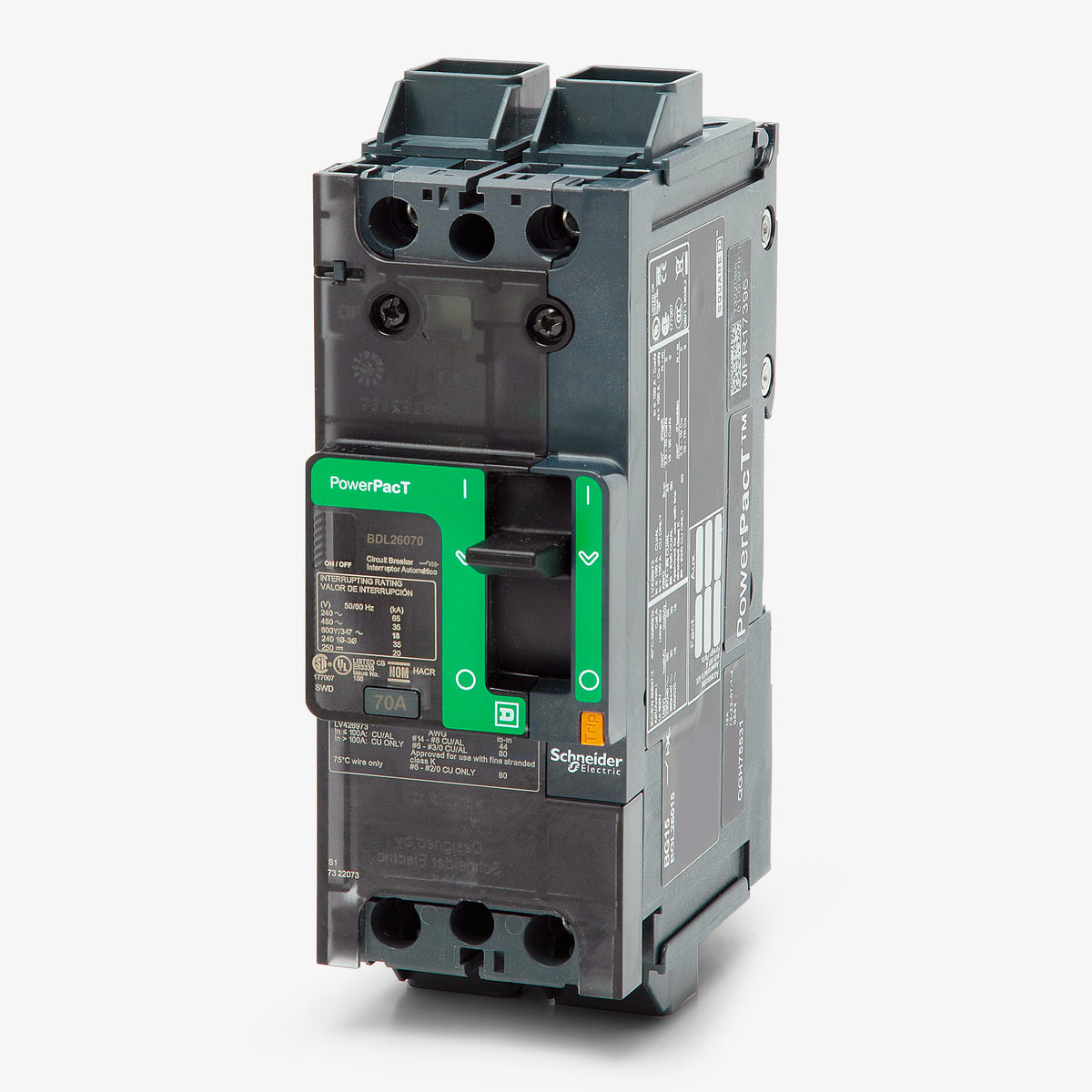

Square D BDL26070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Square D
BDL26070
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDL26070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the BDL26070 is a 70A, two-pole PowerPacT B-Frame circuit breaker by Square D. It delivers robust long-time and instantaneous trip functions for commercial facilities and switchboards. Designed for versatile unit mounting, it easily attaches to backpans or DIN rails using the integrated adapter. Facility managers can use this model to seamlessly replace discontinued FAL26070 breakers. With an 18 kAIC rating at 480VAC, it features EverLink lugs.Specifications
| Brand | Square D |
|---|---|
| Series | BDL |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT B Enclosures, Electrical Distribution Equipment |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Terminal Shields, Padlock Attachment |
|---|---|
| Accessories | EverLink Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
6 answersWhat older Square D circuit breaker does the BDL26070 replace?
The PowerPacT BDL26070 is the direct replacement for the discontinued Square D FAL26070 F-Frame circuit breaker.
How is the BDL26070 mounted in an enclosure?

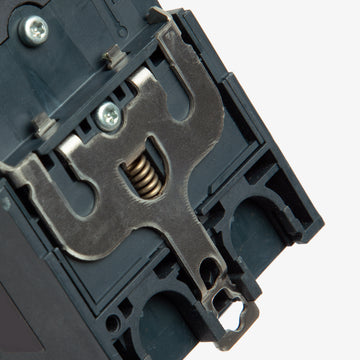

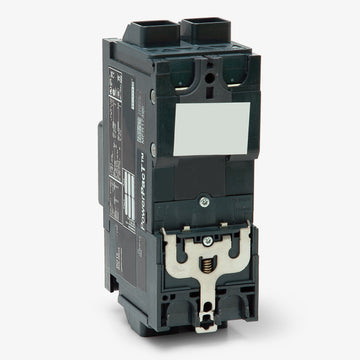

This is a unit-mount circuit breaker. It bolts directly to the backpan of an enclosure or industrial control panel, and it can also be mounted to a DIN rail using the integrated adapter. It is not compatible with I-Line plug-on panelboards.
What does the catalog number BDL26070 mean?
In the Square D PowerPacT nomenclature, B stands for the B-Frame, D indicates the 18kA at 480V interrupting rating, L means it is a unit-mount breaker with lugs on both ends, 2 is for 2 poles, 6 represents the 600Y/347VAC maximum voltage, and 070 specifies the 70A current rating.
Can the BDL26070 be used in DC voltage systems?
Yes, this breaker is rated for use in DC applications up to 250VDC, with an interrupting capacity of 10kA. This makes it suitable for certain solar, battery, and DC control panel applications.
What type of wire can be used with the BDL26070 lugs?

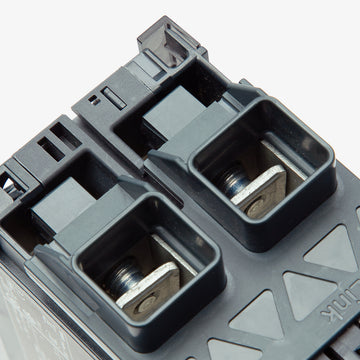

The factory-installed EverLink lugs accept both aluminum and copper wire (Al/Cu) ranging from 14 AWG to 3/0 AWG.
Can I install the BDL26070 in a Square D I-Line panelboard?
No, the BDL26070 is a unit-mount breaker designed for feed-thru applications in control panels and switchboards. For an I-Line panelboard, you would need a B-Frame breaker with an I-Line mounting configuration, such as a BDA or BGA series.
