Square D BDL36035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Square D
BDL36035
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL36035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

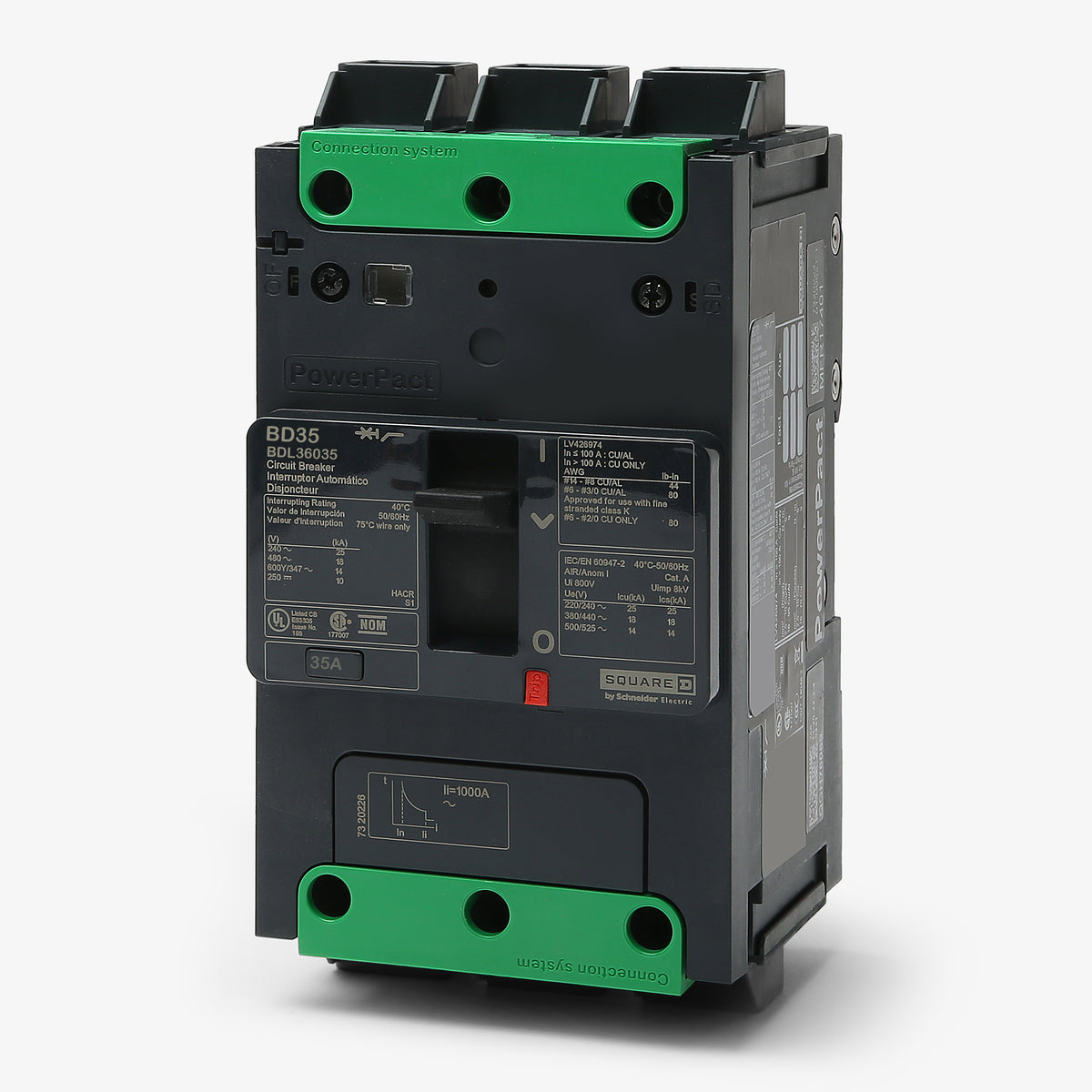

Square D BDL36035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
45A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial use, the Square D BDL36035 molded case circuit breaker delivers reliable thermal-magnetic protection. This 3-pole, 35A PowerPacT B-Frame device safeguards electrical distribution equipment. This unit-mount breaker installs onto standard back pans or 35mm DIN rails. It replaces legacy FAL36035 breakers, integrating easily into existing switchboards. Rated 14kAIC at 600Y/347VAC, it includes EverLink lugs to ensure secure wire connections.Specifications
| Brand | Square D |
|---|---|
| Part Number | BDL36035 |
| Series | BDL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT B Enclosures, Electrical Distribution Equipment |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Double-Break Rotary Contact Structure, Non-Interchangeable Trip, 80% Rated, RoHS Compliant |
Product FAQs
6 answersWhich legacy Square D circuit breaker does the BDL36035 replace?
The BDL36035 is a direct replacement for the legacy F-frame FAL36035 circuit breaker. It is designed to the same 1.5-inch per pole width, simplifying substitution in existing panels without needing blank fillers.
How is the BDL36035 circuit breaker mounted?

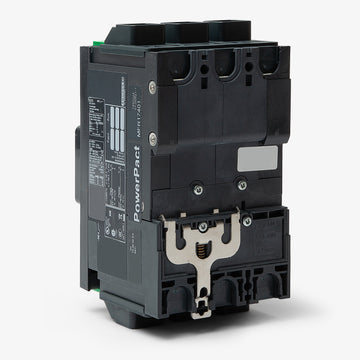

This unit-mount circuit breaker can be installed directly onto standard back pans using screws or mounted onto a standard 35mm DIN rail for installation flexibility.
What type of lugs are included with this unit-mount breaker?

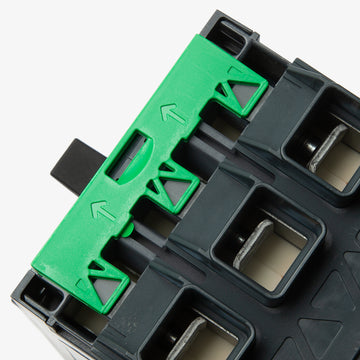

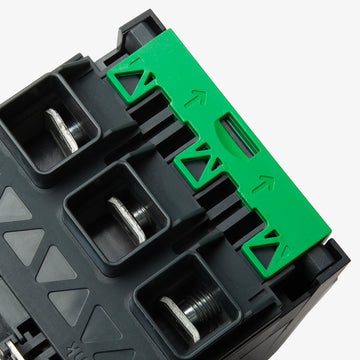

It comes standard with Square D EverLink lugs on both the line and load sides. These patented lugs are designed to maintain constant pressure on the wire, reducing the risk of cable loosening over time.
What is the continuous current rating for the BDL36035 breaker?
This PowerPacT B-frame circuit breaker has a standard 80 percent continuous current rating.
Are internal accessories field-installable on the BDL36035?
Yes, PowerPacT B-frame circuit breakers support a wide range of field-installable internal accessories, including shunt trips, undervoltage releases, and auxiliary contacts.
Can I use compression lugs or busbar connections with this breaker?
Yes, the standard EverLink lugs can be removed and replaced with terminal nuts to accommodate compression lugs, power distribution connectors, or busbar connection kits.
