Square D BGA160201 Molded Case Circuit Breaker
- 20A
- 1 Pole
- I-Line
Square D
BGA160201
Molded Case Circuit Breaker
Brand
Square D
SKU
BGA160201
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

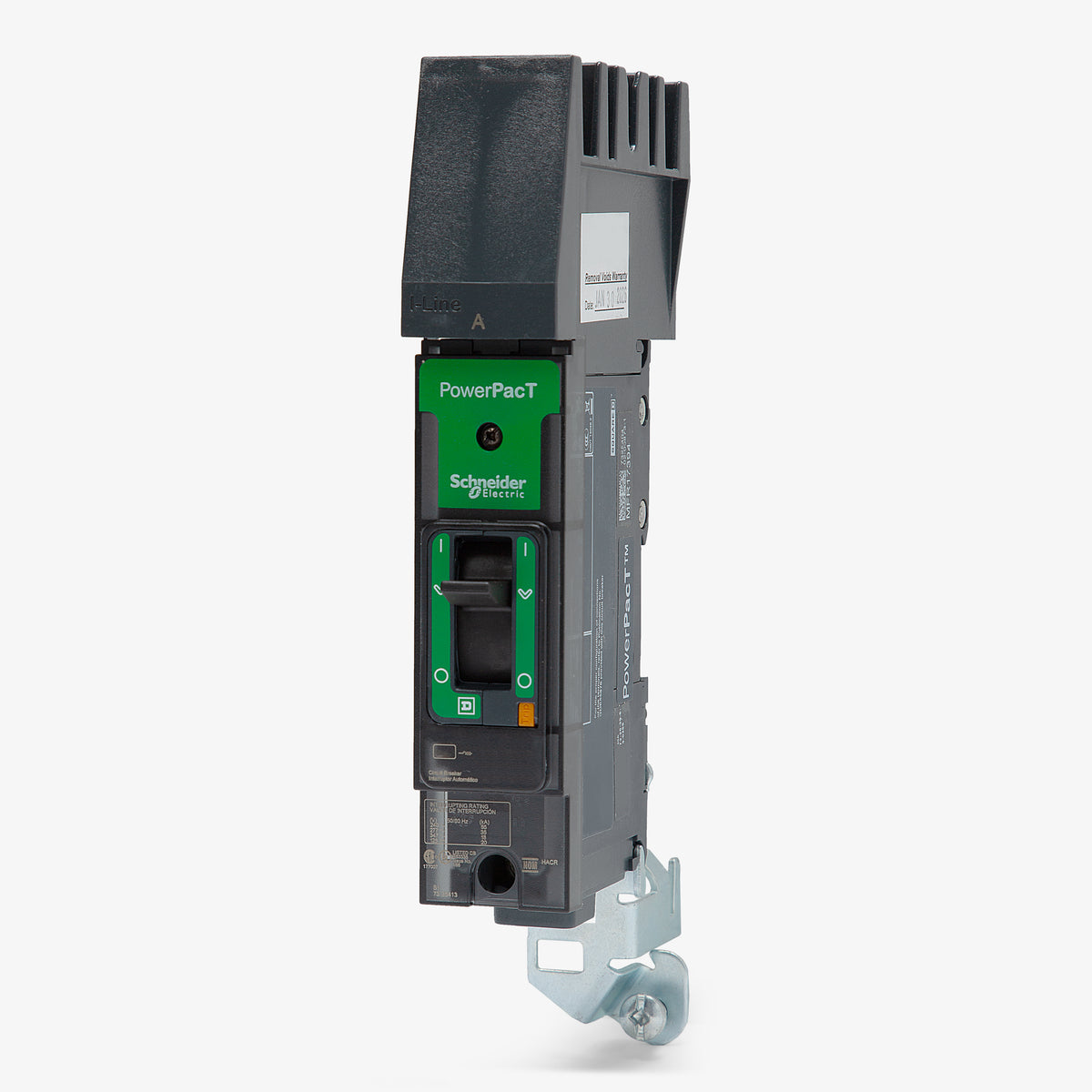

Square D BGA160201 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D BGA160201 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | BGA |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 18kA @ 600Y/347VAC, 20kA @ 125VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant, Phase Connection A |
Quantity
Square D BGA160201 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | BGA |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 18kA @ 600Y/347VAC, 20kA @ 125VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant, Phase Connection A |
Similar Items
30A 1 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, this 20A molded case circuit breaker utilizes thermal-magnetic trip technology for precise overcurrent protection. The unit mounts into standard Square D I-Line panelboards, functioning as an exact replacement for discontinued FH16020A breakers. With a Phase A connection and current-limiting capabilities, it delivers a 35kAIC rating at 480Y/277V to safely interrupt severe electrical faults in demanding distribution networks.Specifications
| Brand | Square D |
|---|---|
| Series | BGA |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 18kA @ 600Y/347VAC, 20kA @ 125VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant, Phase Connection A |
Product FAQs
7 answersWhat panels are compatible with the BGA160201 circuit breaker?

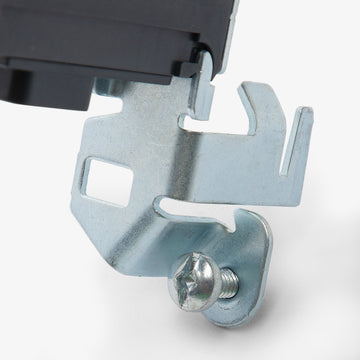

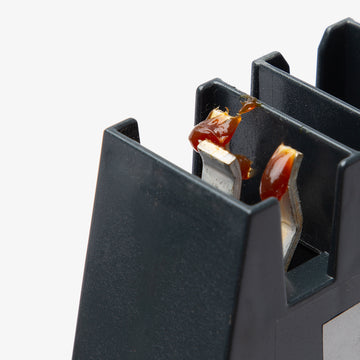

This breaker is designed for use in Square D I-Line panelboards and switchboards. It features an I-Line plug-on connection for the line side and a mechanical lug for the load side.
Does the BGA160201 replace older Square D breakers?
Yes, the PowerPacT B-frame replaces legacy FA and FH series breakers. Specifically, this model is the direct replacement for the discontinued 20-amp, 1-pole FA16020A and FH16020A I-Line circuit breakers. It maintains the same mounting space dimensions for easy retrofitting.
Which phase is this 1-pole breaker configured for?
The BGA160201 is factory-configured for a Phase A connection in an I-Line panelboard. If you need to connect to Phase B or Phase C, a different catalog number is required.
What wire sizes are accepted by the lugs on this breaker?
The load-side lug accepts 14 AWG to 2/0 AWG aluminum or copper wire. The line side does not require wiring, as it plugs directly into the I-Line bus.
What does the G in the BGA160201 catalog number signify?
The G indicates the breaker's interrupting rating tier within the PowerPacT B-frame family. For this model, it provides 65kA at 240VAC, 35kA at 480Y/277VAC, and 18kA at 600Y/347VAC.
What type of trip unit is installed in the BGA160201?
It features a fixed thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection functions. The thermal and magnetic trip levels are factory-set and non-adjustable.
Is this breaker rated for DC voltage applications?
Yes, in addition to its AC ratings, the BGA160201 is rated for up to 125VDC with an interrupting capacity of 20kAIC.
