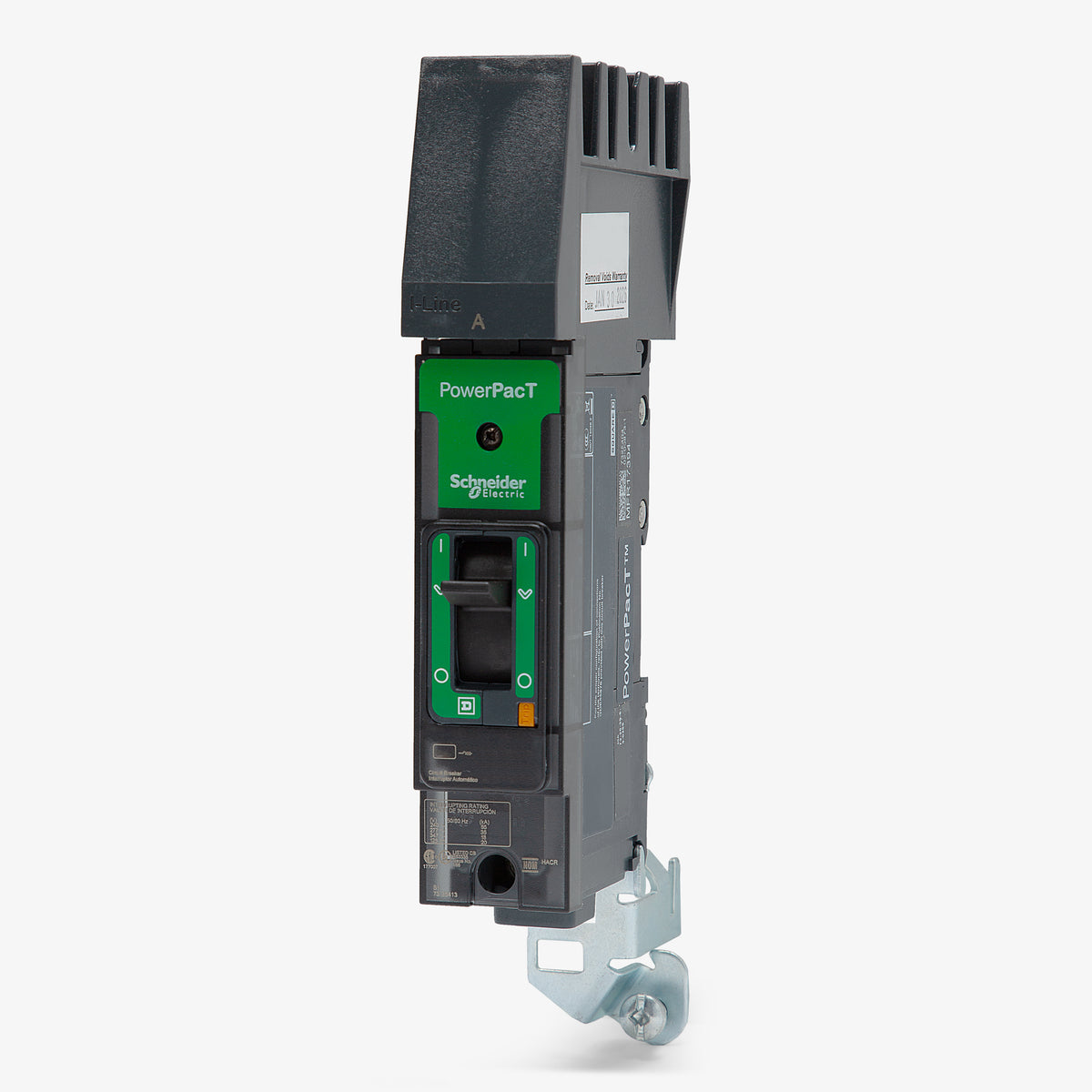

Square D BGA160301 Molded Case Circuit Breaker
- 30A
- 1 Pole
- I-Line
Square D
BGA160301
Molded Case Circuit Breaker
Brand
Square D
SKU
BGA160301
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

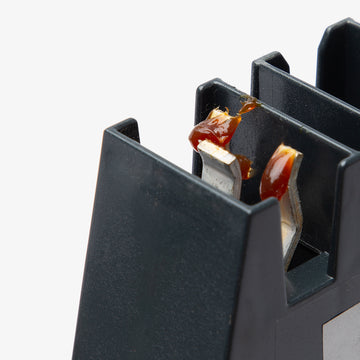

Square D BGA160301 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D BGA160301 is a 1-pole, 30A molded case circuit breaker from the PowerPacT B-Frame family. It provides reliable thermal-magnetic protection for demanding electrical systems. This unit installs into Square D I-Line panelboards and switchboards. It serves as a direct replacement for legacy FH16030A breakers, ensuring seamless integration into existing infrastructure.Specifications
| Brand | Square D |
|---|---|
| Series | BGA |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 18kA @ 600Y/347VAC, 20kA @ 125VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | I-Line Phase Connection A |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant, Phase Connection A |
Product FAQs
6 answersWhat does the '1' suffix mean in the BGA160301 catalog number?
In Square D PowerPacT nomenclature, the '1' suffix on a 1-pole I-Line breaker indicates it is factory-configured to connect to the A-phase of the panelboard bus.
Is the BGA160301 compatible with NQ or NF panelboards?
No. This breaker features an I-Line plug-in connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It cannot be installed in NQ, NF, or standard QO load centers.
Can I adjust the trip settings on the BGA160301?
No. The BGA160301 features a fixed thermal and fixed magnetic trip unit. The Long-Time (overload) and Instantaneous (short-circuit) trip thresholds are factory-set and cannot be adjusted in the field.
What interrupting rating does the 'G' in BGA160301 signify?
The 'G' designates the interrupting capacity tier for this PowerPacT B-Frame breaker. It signifies a rating of 65kAIC at 240VAC, 35kAIC at 480Y/277VAC, and 18kAIC at 600Y/347VAC.
What are the termination requirements for the BGA160301?
The breaker is equipped with factory-installed mechanical lugs that accept 14 AWG to 2/0 AWG aluminum or copper conductors. Installers must apply the specific torque values printed on the breaker label to ensure a secure and compliant connection.
Is the BGA160301 suitable for direct current (DC) systems?
Yes, this breaker is rated for DC applications. It provides an interrupting capacity of 20kAIC at 125VDC.
