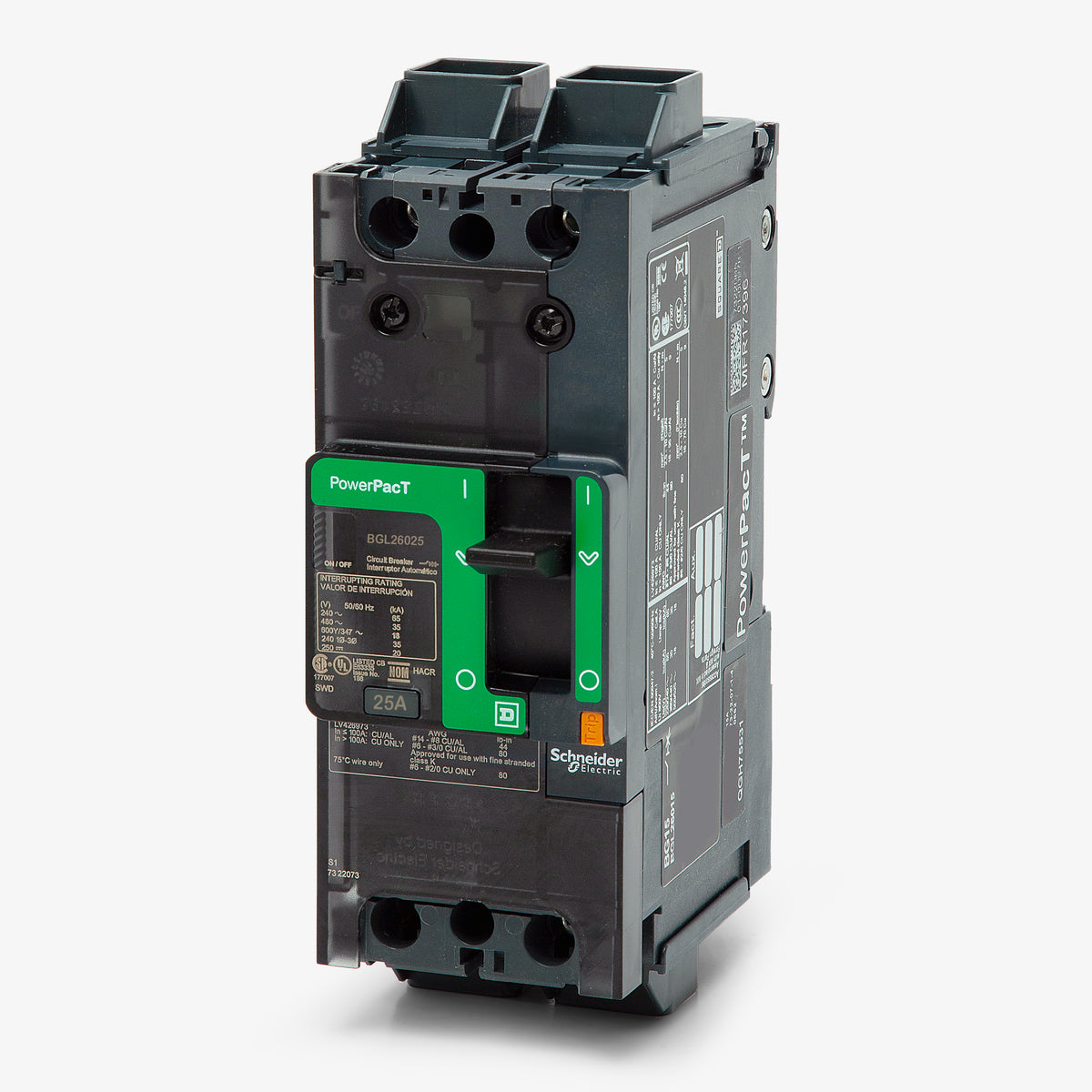

Square D BGL26025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Unit Mount
Square D
BGL26025
Molded Case Circuit Breaker
Brand
Square D
SKU
BGL26025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BGL26025 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D BGL26025 provides 2-pole, 25A molded case circuit protection within the PowerPacT B-Frame family. It mounts into industrial control panels and switchboards, offering flexible installation with integrated DIN rail mounting capabilities. This unit serves as a drop-in replacement for legacy FHL26025 breakers. Rated at 35kAIC at 480VAC, it utilizes thermal-magnetic trip technology and features patented EverLink lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | BGL26025 |
| Series | BGL |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Frame Type | BGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
6 answersHow is the BGL26025 circuit breaker mounted?

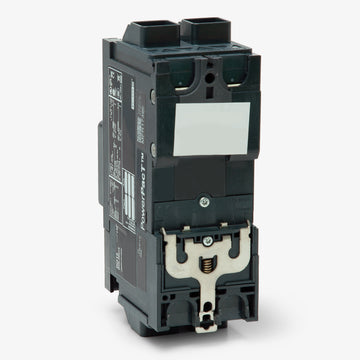

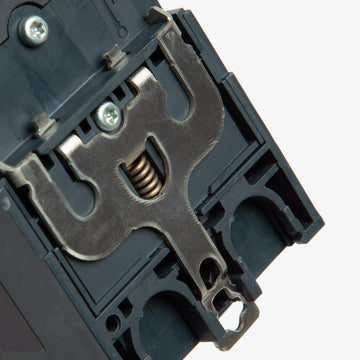

The BGL26025 is a unit-mount, feed-thru circuit breaker. It is designed to be mounted directly to a backpan using screws or onto a standard 35mm DIN rail, making it suitable for industrial control panels and switchboards.
What does the G in the BGL26025 catalog number indicate?
In the Square D PowerPacT B-Frame nomenclature, the G indicates the interrupting rating tier. This specific tier provides a maximum interrupting rating of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600Y/347VAC.
What type of terminals are included on the BGL26025?

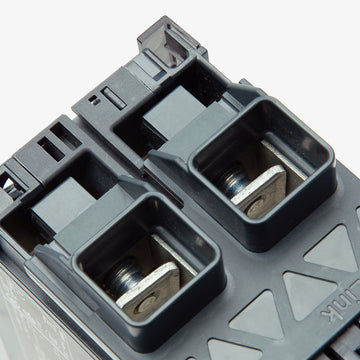

This breaker includes EverLink lugs on both the line and load sides for a feed-thru connection. These lugs accept 14 AWG to 3/0 AWG aluminum or copper wire and feature a patented design to reduce cable loosening over time.
Can the BGL26025 be used in DC electrical systems?
Yes, this circuit breaker is rated for use in DC applications up to 250VDC, where it provides an interrupting rating of 20kA.
Does the BGL26025 feature an adjustable trip unit?
No, it is equipped with a fixed thermal-magnetic trip unit. It provides standard Long-Time (thermal overload) and Instantaneous (short circuit) protection without adjustable dials.
Can I install the BGL26025 in a Square D I-Line panelboard?
No, this is a unit-mount circuit breaker designed for backpan or DIN rail mounting. It does not feature the plug-on jaw connections required for I-Line panelboards.
