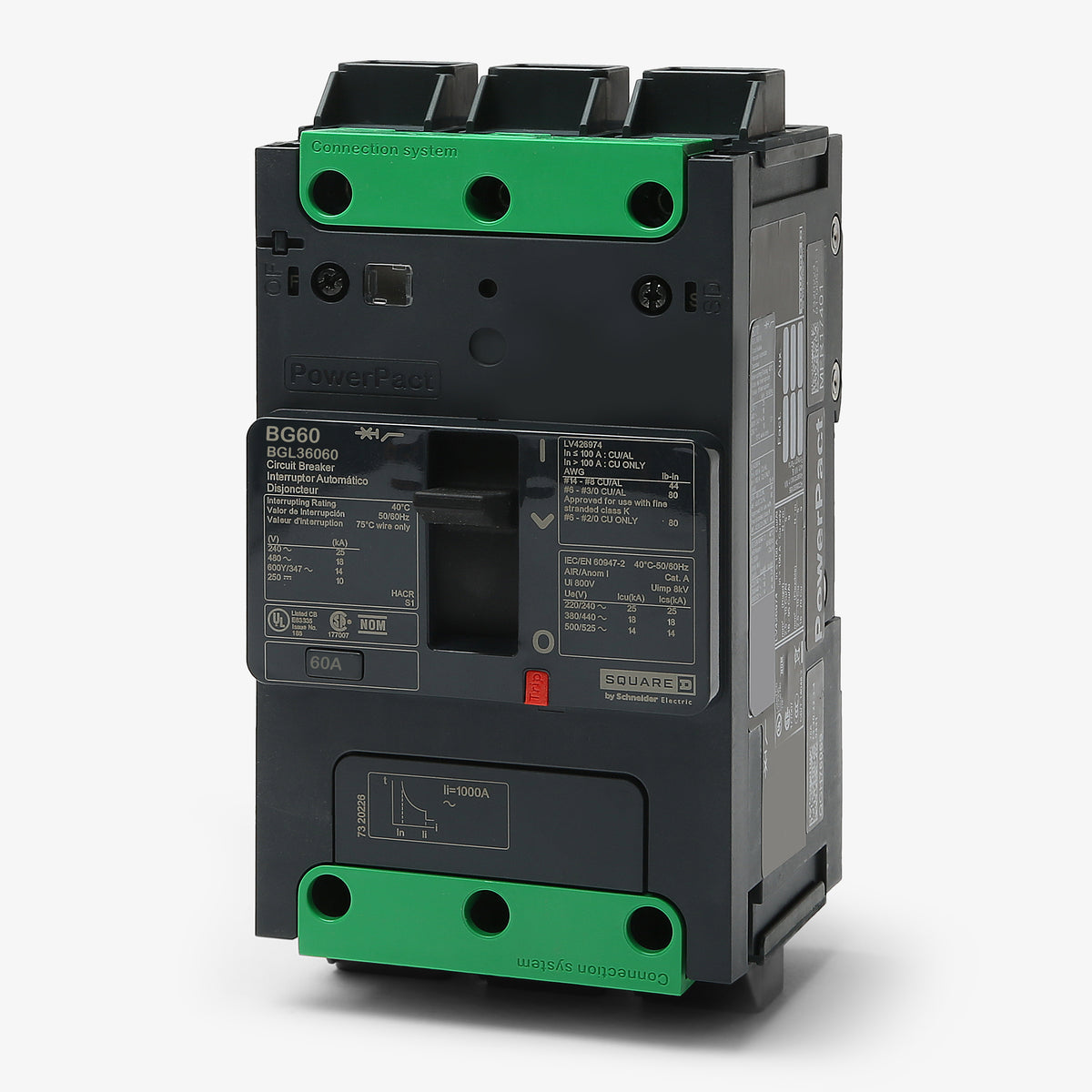

Square D BGL36060 Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Square D
BGL36060
Circuit Breaker
Brand
Square D
SKU
BGL36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BGL36060 3 Pole Circuit Breaker
New
Quantity
Quantity
Square D BGL36060 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | BGL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Padlock Attachment |
|---|---|
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Quantity
Square D BGL36060 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | BGL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Padlock Attachment |
|---|---|
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Square D BGL36060 3 Pole Circuit Breaker
The Square D BGL36060 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600Y/347VAC. It has an interrupting rating of 65kAIC at 240VAC, 35kAIC at 480VAC. The BGL36060 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Series | BGL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Padlock Attachment |
|---|---|
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
7 answersWhat older Square D breakers does the BGL36060 replace?
The PowerPact B-frame unit-mount breakers are the modern replacements for legacy Square D FAL and FHL series breakers, specifically replacing the FAL36060 and FHL36060 models.
What type of wire connections does the BGL36060 use?

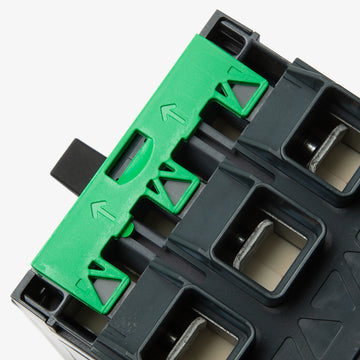

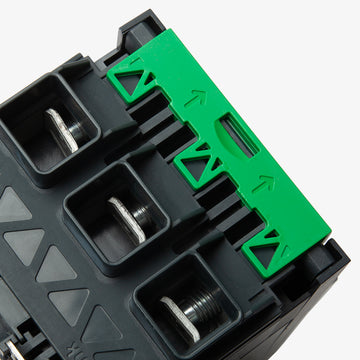

It features EverLink creep-compensating lugs on both the line and load sides. These lugs are designed to prevent bare cables from loosening over time due to thermal cycling and accept 14 AWG to 3/0 AWG aluminum or copper wire.
How is the BGL36060 mounted in a panel?

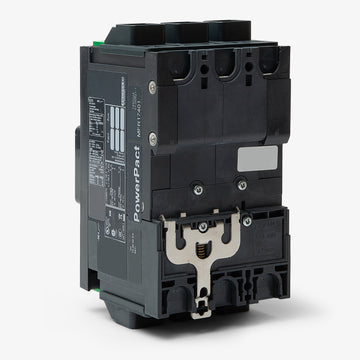

This is a unit-mount breaker that offers flexible installation. It can be mounted to a traditional back pan using screws, or it can be snapped directly onto a standard 35mm DIN rail using its integrated mounting clip. It is not compatible with I-Line panelboards.
What does the G in the BGL36060 part number indicate?
The G designates the interrupting rating tier within the PowerPact B series. For this model, it signifies a maximum breaking capacity of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC.
Can the BGL36060 be used in DC circuits?
Yes, this thermal-magnetic breaker is rated for DC applications up to 250VDC, where it provides a 20kA interrupting rating.
What type of trip unit is installed in the BGL36060?
It is equipped with a fixed thermal-magnetic trip unit featuring Long-Time and Instantaneous (LI) protection functions. The thermal and magnetic trip points are factory set and cannot be adjusted.
What enclosures and panels are compatible with the BGL36060?
This B-frame breaker is designed for use in industrial control panels, switchboards, and compatible Square D circuit breaker enclosures. It requires a unit-mount setup and will not fit in panels requiring plug-on or bolt-on branch breakers.
