Square D BGL36070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Square D
BGL36070
Molded Case Circuit Breaker
Brand
Square D
SKU
BGL36070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

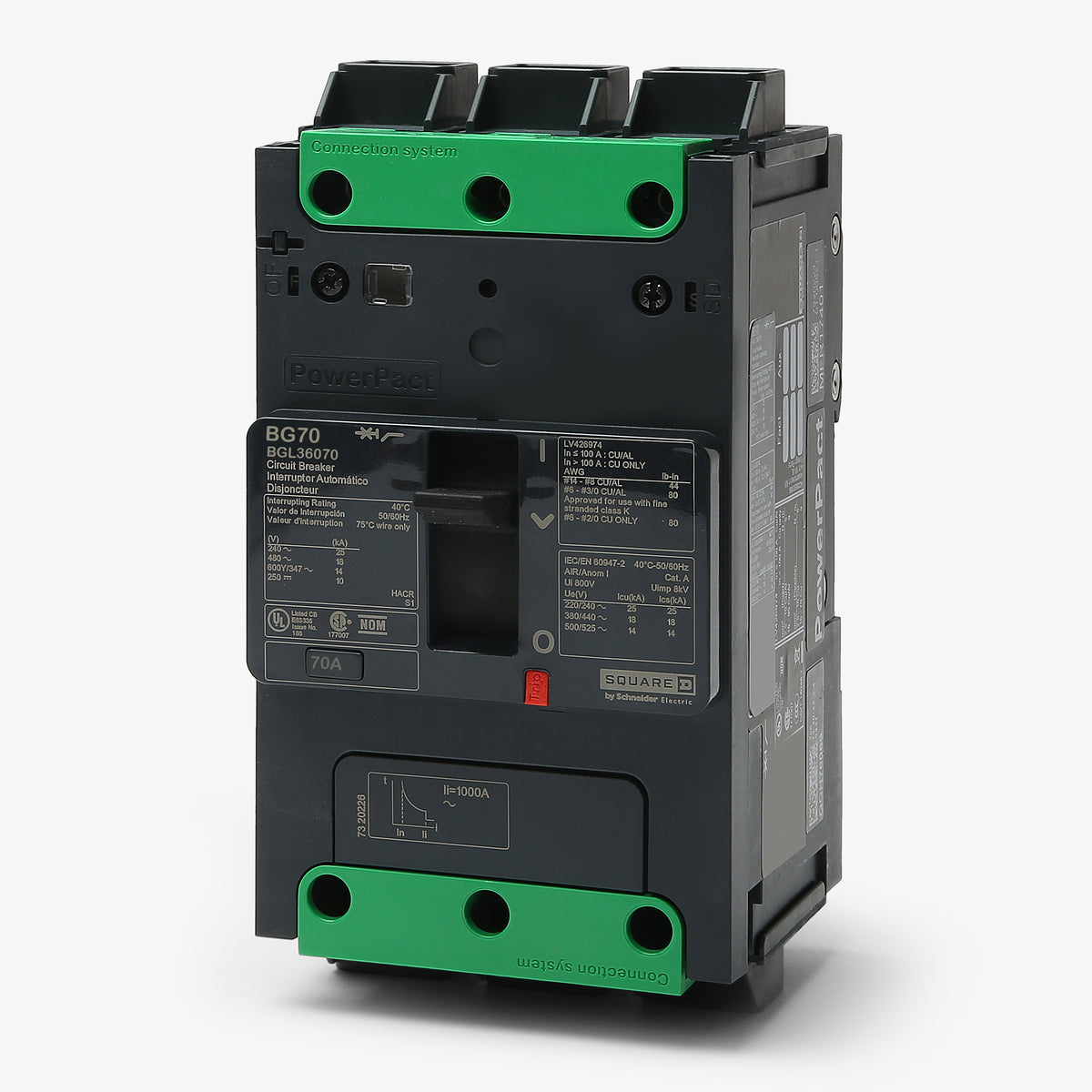

Square D BGL36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
3 Pole Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for robust power distribution, the Square D BGL36070 is a 70A, 3-pole PowerPacT B-Frame MCCB. It utilizes fixed thermal-magnetic elements to deliver precise LI protection for commercial enclosures and switchboards. Designed to upgrade older systems, this unit mount breaker replaces discontinued FAL36070 and FHL36070 models. It features built-in DIN rail mounting alongside standard screw mounting.Specifications
| Brand | Square D |
|---|---|
| Series | BGL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Frame Type | B Frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
7 answersDoes the BGL36070 replace older Square D circuit breakers?
Yes, the PowerPacT B-frame BGL36070 is the direct replacement for legacy F-frame breakers, including the FAL36070 and FHL36070, commonly used in industrial control panels and enclosures.
Can the BGL36070 be mounted on a DIN rail?
Yes, this unit mount breaker features a built-in clip on the back that allows it to be installed directly onto a standard 15 x 35 mm DIN rail, in addition to traditional back pan screw mounting.
What are the torque specifications for the EverLink lugs on the BGL36070?
The EverLink lugs require 44.3 lb-in (5 N.m) of torque for 14 to 4 AWG wire, and 79.6 lb-in (9 N.m) for 3 to 3/0 AWG wire.
What is the advantage of the EverLink lugs included on this breaker?
EverLink lugs feature a patented spring-based design that maintains constant pressure on the wire. This compensates for thermal expansion and prevents cable loosening over time, ensuring a secure connection for both fine-stranded and rigid conductors.
What does the G in the BGL36070 catalog number signify?
The G indicates the breaker's interrupting rating tier within the PowerPacT B-frame series. It provides a maximum interrupting capacity of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC.
What types of equipment is the BGL36070 designed for?
This 3-pole, 70A breaker is designed for power distribution and thermal-magnetic protection in industrial control panels, switchboards, and commercial enclosures.
Does the BGL36070 have a push-to-trip feature?
Yes, all PowerPacT B-frame circuit breakers include an integral push-to-trip button on the front cover. This allows you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
