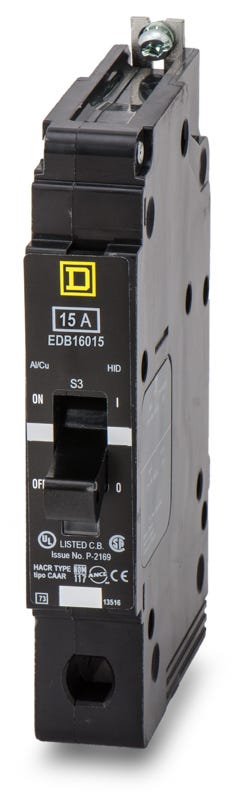

Square D EDB16015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Square D
EDB16015
Molded Case Circuit Breaker
Brand
Square D
SKU
EDB16015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB16015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial environments, the Square D EDB16015 is a 15A, single-pole E-Frame molded case circuit breaker. It provides thermal-magnetic protection with a 14kAIC rating at 600Y/347VAC. Designed to mount into Square D NF panelboards, this bolt-on breaker accepts 14-6 AWG copper or 12-6 AWG aluminum wiring. It includes load side lugs and features fixed trip settings. The unit is HACR, HID, and SWD rated. It also incorporates the Visi-Trip indicator to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB16015 |
| Series | EDB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, HID, IEC, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the Square D EDB16015 circuit breaker?
The EDB16015 is an E-Frame breaker designed specifically for use in Square D NF series panelboards. It is a bolt-on breaker that connects directly to the panelboard bus.
Can I install this EDB breaker in a Square D NQ or I-Line panelboard?
No, EDB breakers are exclusively for NF panelboards. NQ panelboards require QO or QOB breakers, and I-Line panelboards require I-Line style plug-on breakers.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
All three are E-Frame breakers designed for NF panelboards, but they have different interrupting ratings. The EDB is the standard interrupting tier, while the EGB offers high interrupting capacity and the EJB provides extra-high interrupting capacity.
Is the EDB16015 breaker HACR, HID, and SWD rated?
Yes, this 15-amp EDB breaker is HACR rated for heating, air conditioning, and refrigeration equipment. It is also HID (High Intensity Discharge) and SWD (Switching Duty) rated, making it suitable for switching fluorescent and HID lighting loads.
Can the Square D EDB16015 be reverse fed?
Yes, standard EDB thermal-magnetic circuit breakers are suitable for reverse-fed applications. They can be back-fed when used as a main breaker, provided they are installed with the appropriate retaining kit as required by the National Electrical Code.
What does the LI trip function code mean on this breaker?
The LI code indicates that the breaker features fixed Long-Time (L) and Instantaneous (I) trip functions. The long-time function protects against sustained overloads, while the instantaneous function trips immediately during a short circuit.
Does the EDB16015 provide GFCI or AFCI protection?
No, the EDB16015 is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) features.
