Square D EDB24030SA Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Quantity

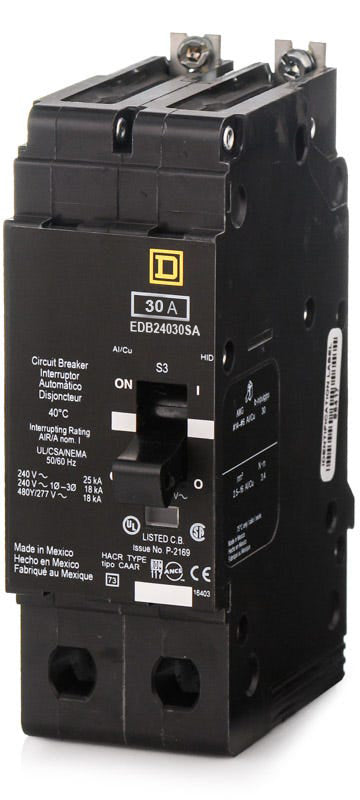

Square D EDB24030SA - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for applications requiring remote control, the Square D EDB24030SA is a 30A, two-pole molded case circuit breaker with a factory-installed 120VAC shunt trip. This E-Frame breaker mounts into Square D NF panelboards using a secure bolt-on connection. It includes standard lugs accommodating 14-6 AWG copper or 12-6 AWG aluminum wire. Rated for 18 kAIC at 480Y/277V, it delivers dependable protection. It also features the signature Visi-Trip indicator to easily spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB24030SA |
| Series | EDB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Alarm Switch, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the Square D EDB24030SA?
This E-Frame breaker is designed specifically for Square D NF series lighting panelboards. It uses a bolt-on connection to secure directly to the panel bus, providing a rigid and reliable connection for commercial and industrial applications.
What does the SA suffix mean in the EDB24030SA catalog number?
The SA suffix indicates that this breaker includes a factory-installed 120V AC shunt trip. This allows the breaker to be tripped remotely for emergency disconnects, fire alarm integration, or control system automation. The shunt trip is not field-installable.
Does the shunt trip on the EDB24030SA require extra panel space?
Yes. The factory-installed shunt trip accessory requires one additional pole space in the NF panelboard. Because this is a 2-pole breaker, the complete assembly will occupy three pole spaces in the panel.
Can the EDB24030SA be used on a 240V system?
Yes. While it has a maximum voltage rating of 480Y/277V AC, it is fully rated for use on 120/240V and 240V systems. When applied at 240V, the interrupting rating increases to 25kA, compared to its 18kA rating at 480Y/277V.
How does the Visi-Trip feature work on the EDB24030SA?
When the breaker trips due to an overcurrent, short circuit, or a remote shunt trip signal, the handle moves to a center position and a highly visible red indicator appears. This allows electricians to quickly identify the tripped breaker in a crowded NF panelboard.
