Square D EDB24060SA Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Quantity

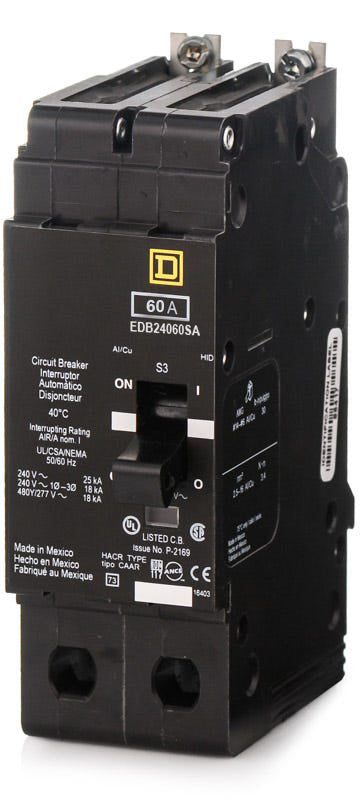

Square D EDB24060SA - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for reliable power distribution, the Square D EDB24060SA is a 60A, 2-pole molded case circuit breaker designed for commercial facilities. It installs into Square D NF panelboards using a sturdy bolt-on mounting style. Delivering an 18 kAIC rating at 480Y/277VAC, this E-Frame breaker includes a factory-installed shunt trip mechanism, making it an excellent choice for applications requiring remote shut-off capabilities or emergency power-down sequences.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB24060SA |
| Series | EDB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Alarm Switch, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the EDB24060SA circuit breaker?
This E-frame bolt-on breaker is designed exclusively for use in Square D NF series panelboards. It is not compatible with I-Line or QO panelboards.
What does the SA suffix mean on the EDB24060SA?
The SA suffix indicates that this breaker includes a factory-installed 120V AC shunt trip. This allows the breaker to be tripped remotely for emergency disconnects, fire alarm integration, or control system automation.
Can I install a shunt trip in the field on a standard EDB24060?
No, the shunt trip on Square D E-frame breakers is factory-installed only and cannot be added in the field. You must order the breaker with the SA suffix if a 120V shunt trip is required.
Does the factory-installed shunt trip require additional panel space?
Yes, the factory-installed shunt trip requires one additional pole space in your NF panelboard. Because the EDB24060SA is a 2-pole breaker, it will occupy a total of three pole spaces.
Is the EDB24060SA suitable for use on 480V Delta systems?
No, this breaker is slash-rated for 480Y/277V AC, meaning it is only suitable for solid-grounded Wye systems where the line-to-ground voltage does not exceed 277V. It is not rated for ungrounded or corner-grounded 480V Delta systems.
What is the difference between the EDB, EGB, and EJB series breakers?
The difference lies in their interrupting ratings at 480Y/277V. The EDB series is rated at 18kA, the EGB series at 35kA, and the EJB series at 65kA. They share the same physical dimensions and mount in the same NF panelboards.
