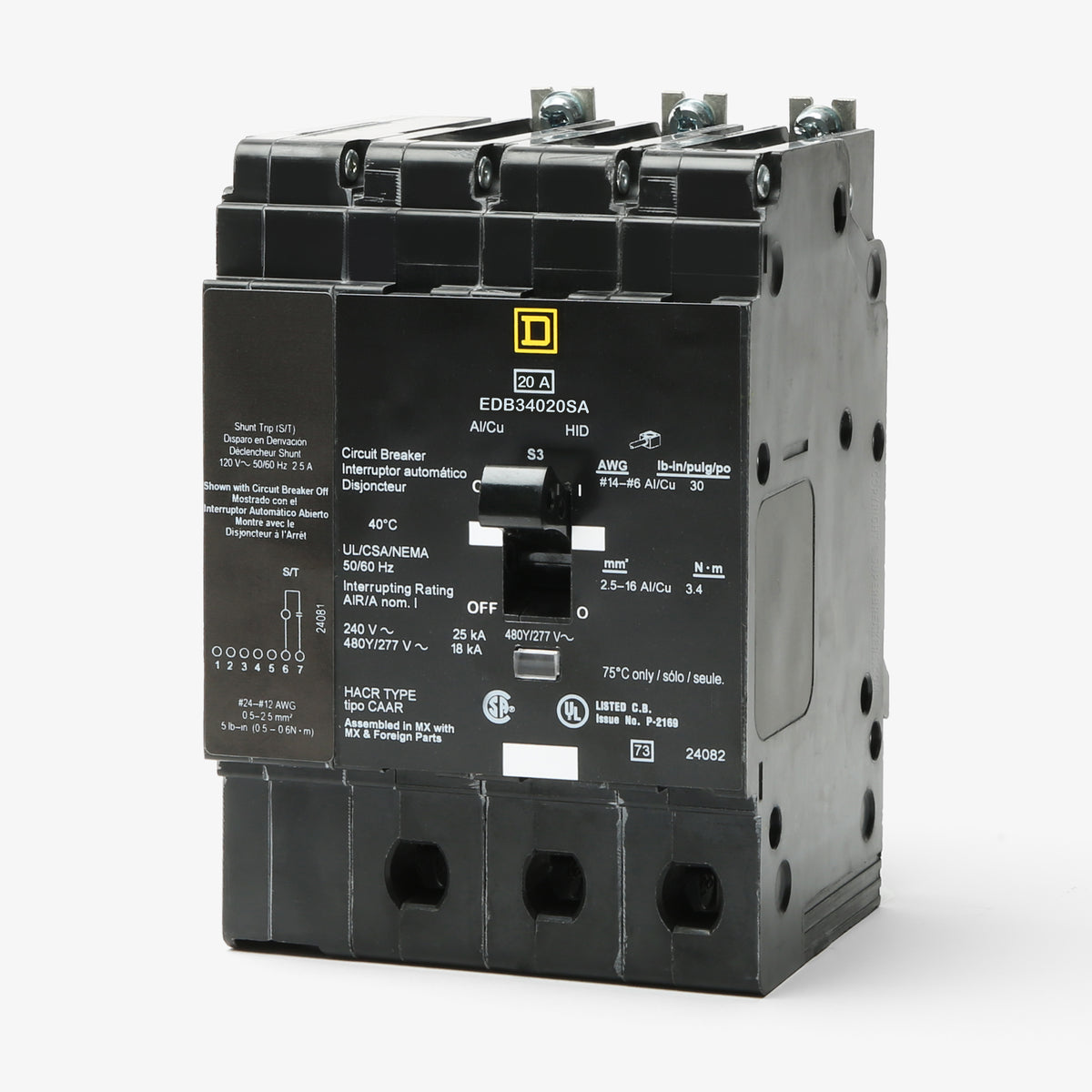

Square D EDB34020SA Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Square D
EDB34020SA
Miniature Circuit Breaker
Brand
Square D
SKU
EDB34020SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB34020SA - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
Description
Built for commercial power distribution, the Square D EDB34020SA is a 20A, 3-pole miniature circuit breaker equipped with a factory-installed 120VAC shunt trip. This accessory enables remote tripping from external control systems, requiring four total pole spaces for installation. The breaker mounts into Square D NF panelboards via a robust bolt-on connection. Featuring an 18 kAIC rating at 480Y/277VAC, it utilizes fixed thermal-magnetic trip elements to safeguard lighting and HVAC circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB34020SA |
| Series | EDB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
8 answersWhat panelboards are compatible with the Square D EDB34020SA breaker?
This bolt-on circuit breaker is designed exclusively for use in Square D NF series lighting panelboards. It cannot be installed in NQ, I-Line, or QO load centers.
Does the SA suffix on the EDB34020SA mean it includes a shunt trip?
Yes, the SA suffix indicates that this breaker comes equipped with a factory-installed 120V AC shunt trip. This allows the breaker to be tripped remotely for safety or control purposes.
How much panel space does the EDB34020SA require with the built-in shunt trip?
Because factory-installed accessories like the shunt trip add an additional pole space to the breaker frame, this 3-pole breaker will require 4 pole spaces to mount in your NF panelboard.
Can I field-install a shunt trip or auxiliary switch on a standard EDB34020 breaker later?
No. Electrical accessories for Square D E-frame breakers, including shunt trips and auxiliary switches, are factory-installed only and cannot be added in the field.
Is the EDB34020SA rated for use with heating, air conditioning, and refrigeration equipment?
Yes. Like all E-frame circuit breakers, the EDB34020SA is UL Listed as HACR type. It is also rated for HID (High-Intensity Discharge) lighting applications.
What are the magnetic trip and hold current settings for this 20A breaker?
The instantaneous magnetic trip on this 20A E-frame breaker has a fixed hold current of 270 Amps and a trip current of 875 Amps.
Are there higher interrupting capacity versions of this breaker available?
Yes. While the EDB34020SA provides an 18 kA interrupting rating at 480Y/277VAC, you can upgrade to the EGB (35 kA) or EJB (65 kA) frame versions if your electrical system requires a higher fault current rating.
What does the Visi-Trip indicator do on this breaker?
Square D E-frame breakers feature a Visi-Trip visual indicator, which shows a highly visible red flag when the breaker has tripped due to an overload or short circuit. This allows maintenance personnel to quickly identify the tripped breaker in a crowded NF panelboard.
