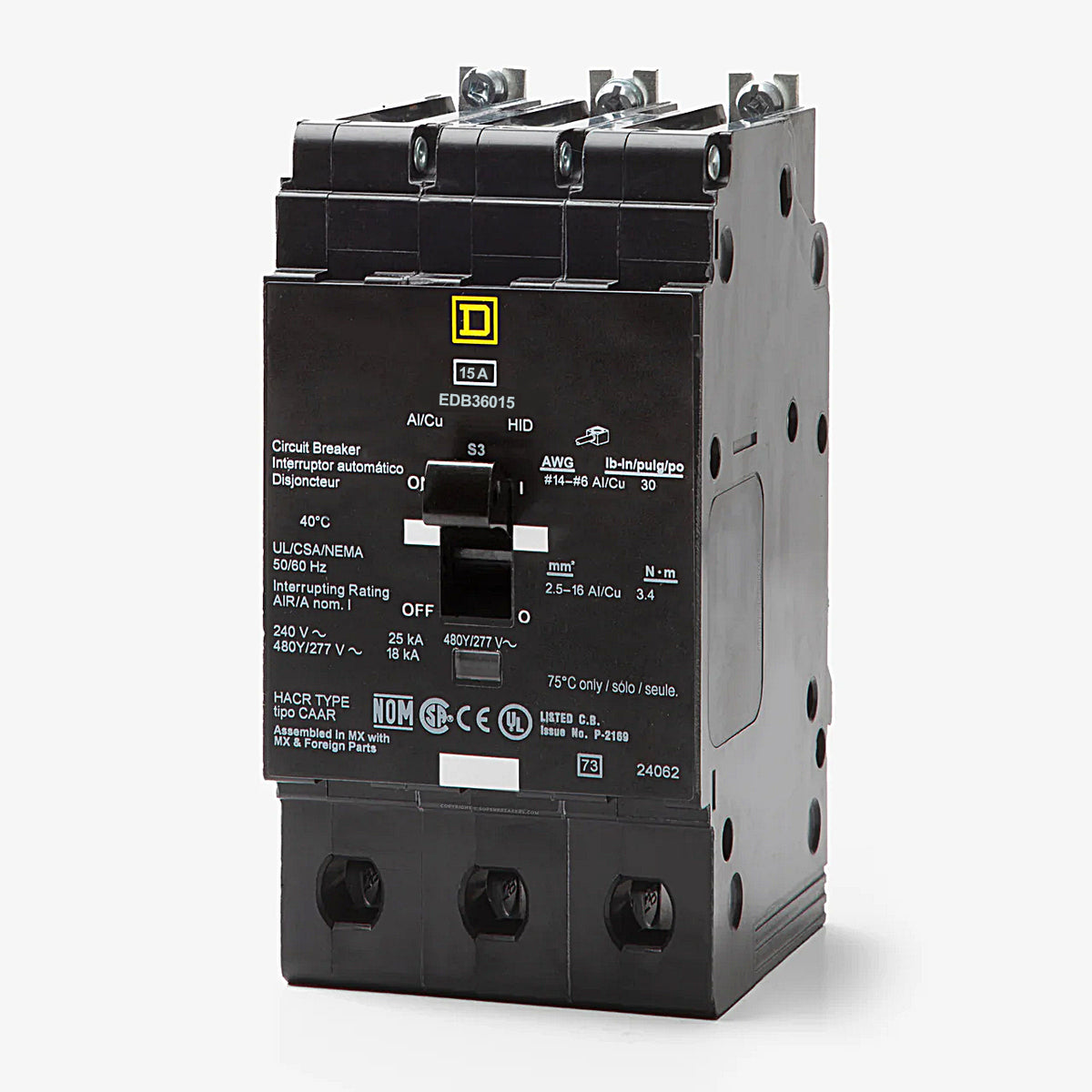

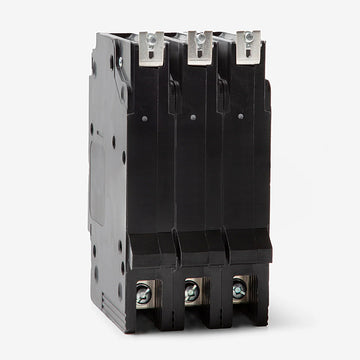

Square D EDB36015 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
EDB36015
Miniature Circuit Breaker
Brand
Square D
SKU
EDB36015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB36015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial power systems, the Square D EDB36015 is a 3-pole, 15A miniature circuit breaker. It provides dependable thermal-magnetic protection for demanding environments. Designed specifically for Square D NF panelboards, this E-Frame breaker features a secure bolt-on mounting style. Rated for 18 kAIC at 480Y/277V and 25 kAIC at 240V, it meets rigorous UL 489 standards. The unit includes a Visi-Trip indicator to easily identify tripped circuits and carries HACR and HID ratings.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB36015 |
| Series | EDB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480Y/277VAC, 600Y/347VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included, Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the EDB36015 circuit breaker?
The EDB36015 is an E-Frame breaker designed specifically for use in Square D NF series panelboards.
What wire sizes do the lugs on the EDB36015 accept?

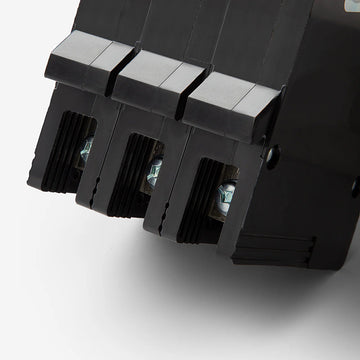

The factory lugs accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire.
Can the EDB36015 be used in 480V systems?
Yes, this breaker is rated for up to 600Y/347VAC, making it fully compatible with 480Y/277VAC and 240VAC commercial power systems.
How does this breaker mount into the panelboard?

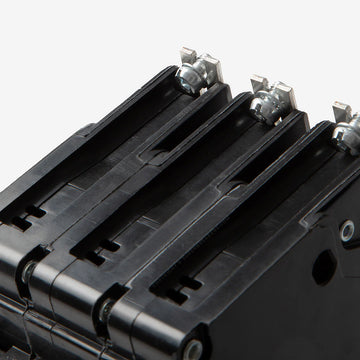

The EDB36015 features a bolt-on mounting connection that secures directly to the bus of Square D NF panelboards.
Are there higher interrupting rating alternatives to the EDB36015?
Yes. The EDB36015 has an 18 kA interrupting rating at 480Y/277VAC. If your system requires a higher rating, the EGB36015 offers 35 kA, and the EJB36015 provides 65 kA at the same voltage.
Does the EDB36015 have adjustable trip settings?
No, it features fixed thermal and fixed magnetic trip settings. It includes long-time and instantaneous (LI) trip functions.
Does this breaker include a visual trip indicator?
Yes, Square D E-Frame breakers like the EDB36015 feature a Visi-Trip indicator to help easily identify tripped circuits in the panel.
Is the EDB36015 suitable for HVAC and commercial lighting applications?
Yes, this breaker is both HACR (Heating, Air Conditioning, and Refrigeration) and HID (High-Intensity Discharge) rated.
