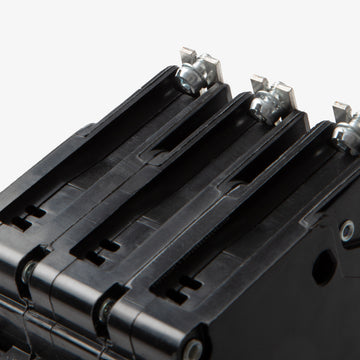

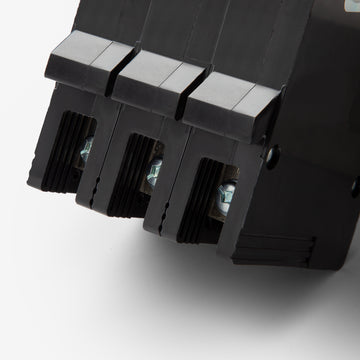

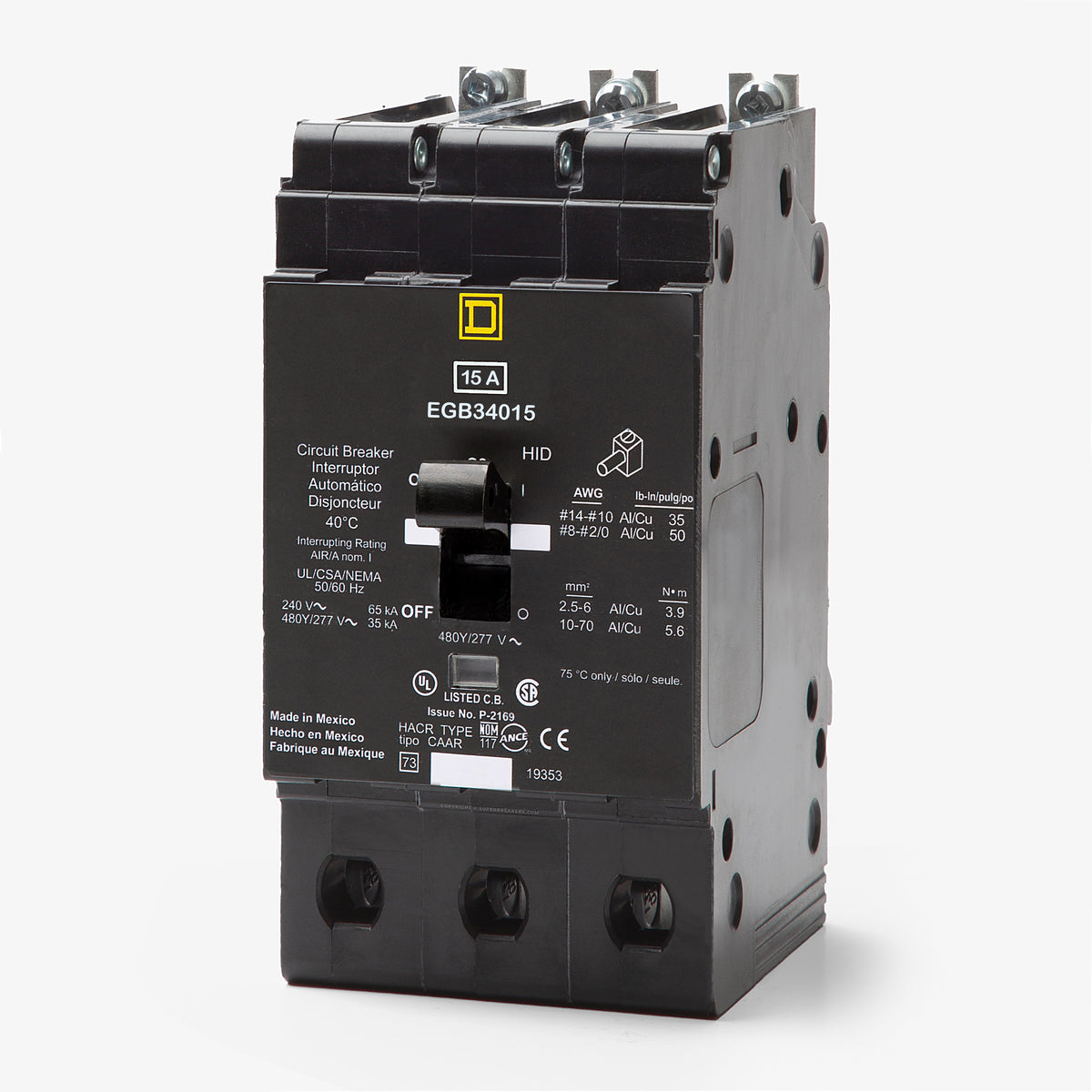

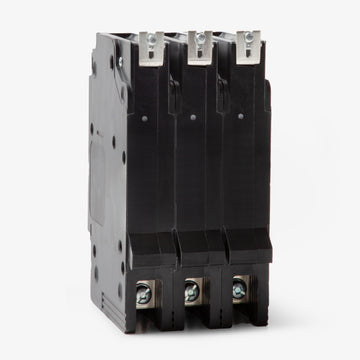

Square D EGB34015 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
EGB34015
Miniature Circuit Breaker
Brand
Square D
SKU
EGB34015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB34015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB34015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34015 |
| Series | EGB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Quantity
Square D EGB34015 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34015-R |
| Series | EGB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
20A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Built for three-phase commercial applications, this 15A E-frame breaker delivers consistent thermal-magnetic protection for lighting and distribution circuits. It fastens into Square D NF panelboards using a reliable bolt-on mounting system. With an interrupting rating of 65kA at 240V and 35kA at 480Y/277V, the unit includes Visi-Trip visual indication alongside HACR and HID certifications.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB34015 |
| Series | EGB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EGB34015?
This breaker is engineered specifically for bolt-on installation in Square D NF series lighting and distribution panelboards.
What is the recommended tightening torque for the wire terminals?
The load-side lugs should be torqued to 30 lbf-in (3.4 N-m) for both copper and aluminum wire sizes from 14 AWG to 6 AWG.
Can the EGB34015 be reverse-fed?
Yes. Standard EGB circuit breakers do not have line and load markings, which allows them to be backfed for use as a main breaker in suitable panel applications.
What is the difference between the EDB34015, EGB34015, and EJB34015?
These E-frame circuit breakers have identical physical dimensions and fit the same NF panelboards, but they offer different interrupting ratings. At 480Y/277VAC, the EDB is rated for 18kAIC, the EGB is rated for 35kAIC, and the EJB is rated for 65kAIC.
Can this breaker be used on a straight 480V ungrounded delta system?
No. The 480Y/277VAC designation is a slash rating. This indicates the breaker is only approved for use on solidly grounded wye systems where the maximum line-to-ground voltage does not exceed 277VAC.
How much mounting space does the EGB34015 require in a panel?
This three-pole E-frame breaker occupies three standard mounting spaces in a Square D NF panelboard.
