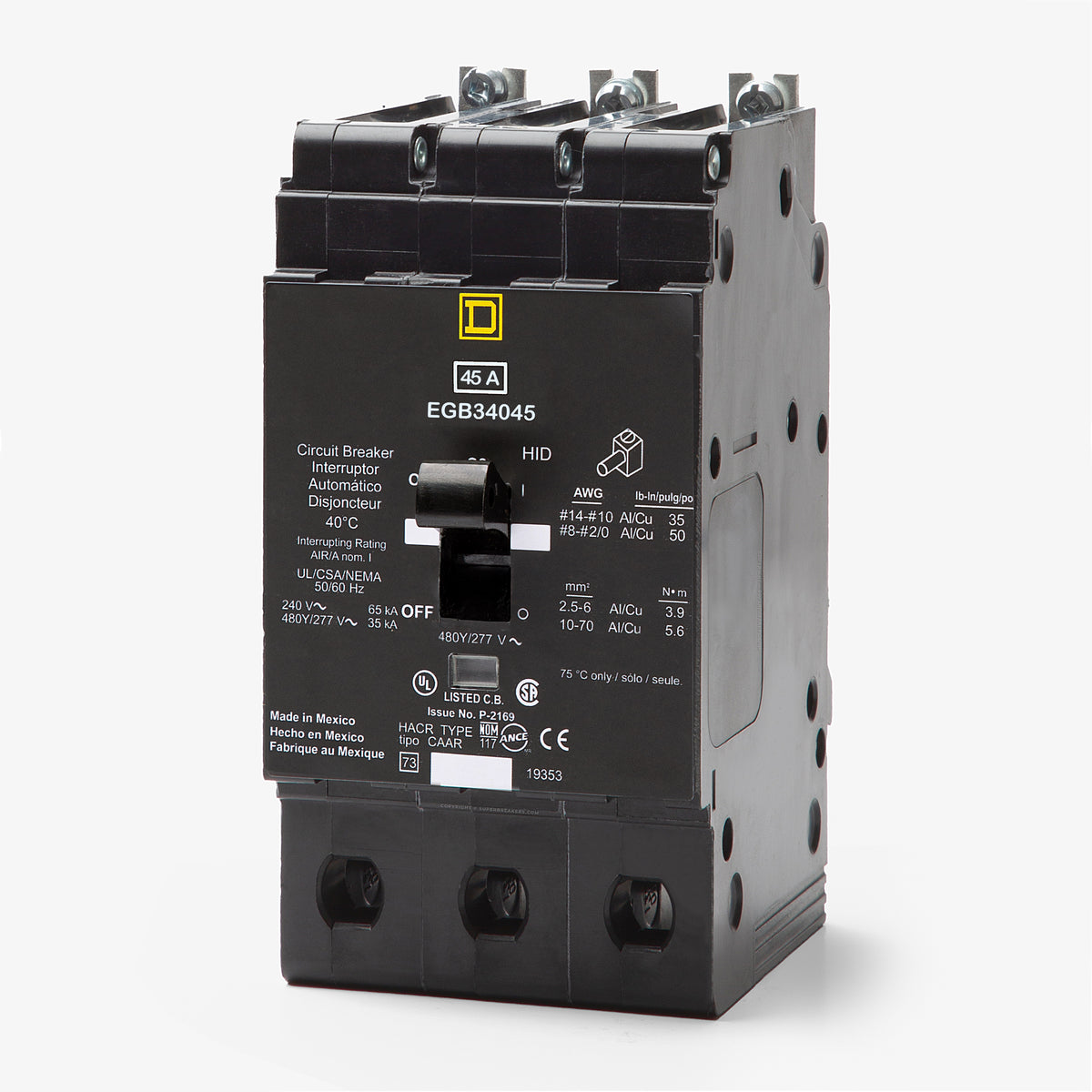

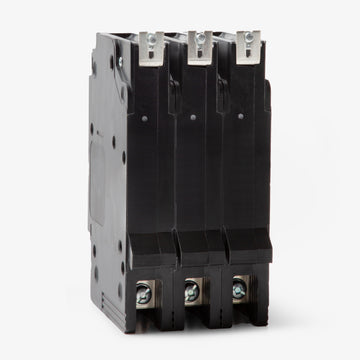

Square D EGB34045 Miniature Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Square D
EGB34045
Miniature Circuit Breaker
Brand
Square D
SKU
EGB34045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB34045 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB34045 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34045 |
| Series | EGB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Sold out
Quantity
Square D EGB34045 - 45A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34045-R |
| Series | EGB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
40A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Ideal for commercial facilities, the Square D EGB34045 is a 3-pole, 45A miniature circuit breaker. It utilizes proven thermal-magnetic technology to protect branch circuits from overloads. This E-frame device features a bolt-on mounting style, ensuring a secure connection within Square D NF panelboards. It accepts up to 2/0 AWG wire via standard lugs. With an interrupting capacity of 35kAIC at 480Y/277V, it includes a Visi-Trip indicator to quickly identify tripped circuits and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB34045 |
| Series | EGB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersCan the EGB34045 breaker be used on a 480V delta system?
No. This breaker is slash-rated for 480Y/277VAC [1.1.1], meaning it is strictly approved for solidly grounded wye systems where the voltage to ground does not exceed 277V. It is not rated for use on 480V ungrounded or corner-grounded delta electrical systems.
What is the difference between the EDB34045, EGB34045, and EJB34045?
All three are 3-pole, 45A, E-Frame breakers for Square D NF panelboards, but they offer different interrupting capacities at 480Y/277VAC. The EDB34045 provides 18kAIC, the EGB34045 offers 35kAIC, and the EJB34045 is rated for 65kAIC. They share identical physical dimensions and mounting configurations, making them directly interchangeable when upgrading or matching fault current requirements.
What are the terminal tightening torque specifications for the EGB34045?
The required tightening torque depends on your wire gauge. For 14-10 AWG conductors, torque the load lugs to 34.5 lb-in (3.9 N.m). For larger 8-2/0 AWG conductors, tighten to 49.6 lb-in (5.6 N.m).
Is the EGB34045 rated for HVAC and lighting applications?
Yes. This breaker carries an HACR rating, making it approved for use with heating, air conditioning, and refrigeration equipment. It is also UL Listed as HID (High-Intensity Discharge), allowing it to safely switch HID lighting circuits.
Does the EGB34045 include load-side lugs?
Yes, this circuit breaker comes with factory-installed load-side mechanical lugs for wire termination. The line-side connection bolts directly onto the NF panelboard bus.
Can the EGB34045 be installed in a Square D I-Line or QO panelboard?
No. The EGB34045 is an E-Frame circuit breaker engineered specifically for bolt-on installation in Square D NF series panelboards. It is not compatible with QO, NQ, or I-Line distribution panels.
