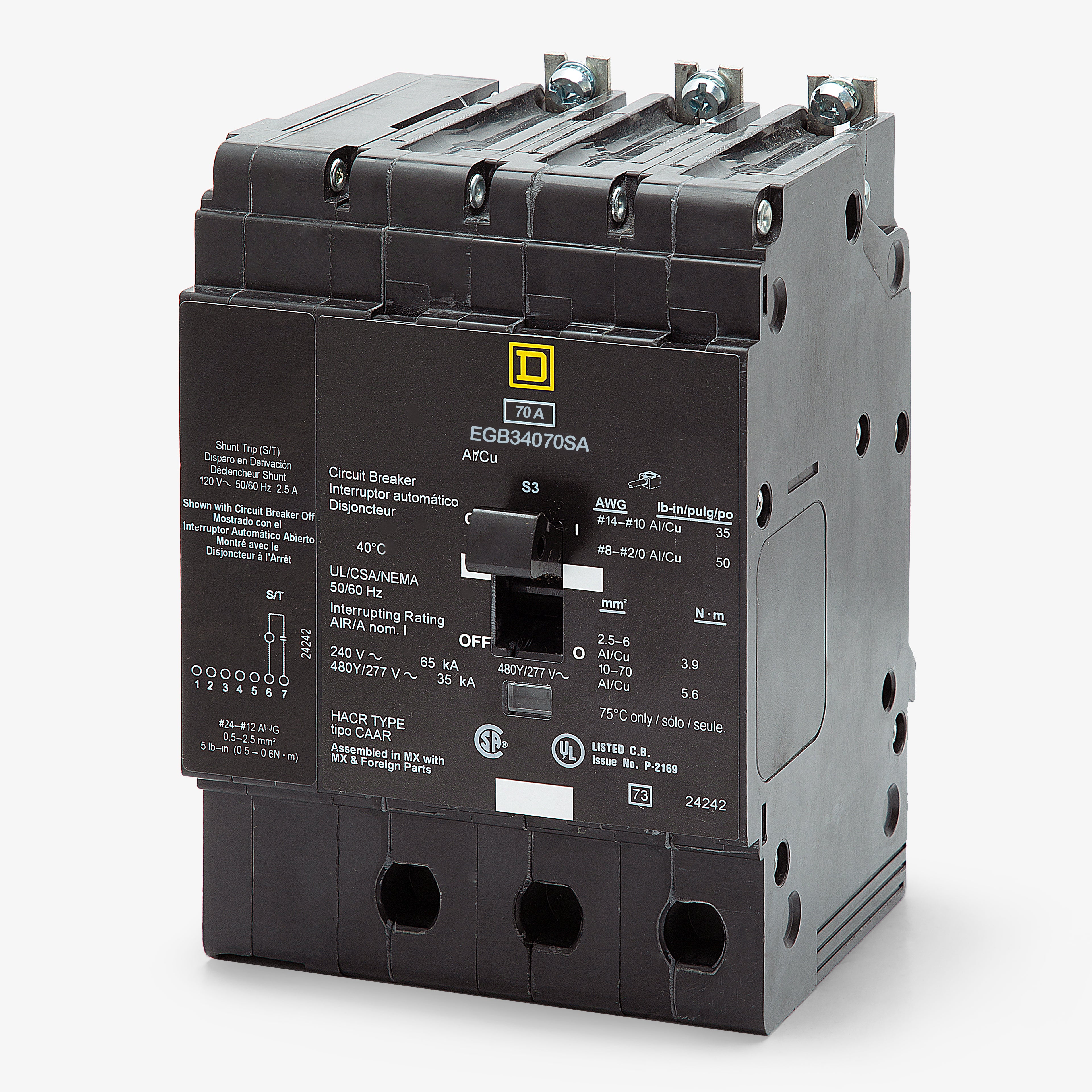

Square D EGB34070SA Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Square D
EGB34070SA
Molded Case Circuit Breaker
Brand
Square D
SKU
EGB34070SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB34070SA - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Providing remote tripping capabilities, the Square D EGB34070SA is a 3-pole, 70A molded case circuit breaker. It features a factory-installed 120VAC shunt trip mechanism, making it perfect for emergency power-off systems and automation control. This E-Frame breaker utilizes a bolt-on connection to mount securely into Square D NF panelboards. Because of the integrated shunt trip module, the breaker has a wider 3.92-inch footprint compared to standard models.Specifications
| Brand | Square D |
|---|---|
| Series | EGB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, NOM 117, RoHS, UL 489 |
| Approval | CSA, cULus, HACR, NOM, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersIs the EGB34070SA compatible with NQ or I-Line panelboards?
No, this E-frame circuit breaker features a bolt-on connection designed specifically for Square D NF series panelboards. It will not fit NQ, NQOD, or I-Line panels.
Does the EGB34070SA require extra mounting space?
Yes. The SA suffix indicates a factory-installed 120VAC shunt trip module, which increases the physical footprint of the breaker. Because of this added accessory, it occupies four pole spaces in an NF panelboard instead of the standard three spaces.
Can I remove or field-install the shunt trip on this breaker?
No. Square D E-frame electrical accessories, including the shunt trip on the EGB34070SA, are factory-installed only. The accessory module cannot be field-modified, removed, or added to a standard breaker.
What is the difference between the EGB34070 and EGB34070SA catalog numbers?
The EGB34070 is the standard three-pole 70A circuit breaker. The EGB34070SA includes a factory-installed 120VAC shunt trip package for remote actuation, which also makes the unit wider than the standard model.
Can I adjust the trip characteristics on the EGB34070SA?
No. This unit is equipped with a thermal-magnetic trip unit featuring fixed long-time and instantaneous trip elements. Neither the thermal nor the magnetic thresholds are adjustable in the field.
How does the built-in shunt trip on the EGB34070SA function?
The factory-installed 120VAC shunt trip coil allows the breaker to be actively tripped by an external control signal. This capability is commonly integrated into emergency power-off (EPO) systems or automated safety shutdown controls to quickly de-energize the circuit.
