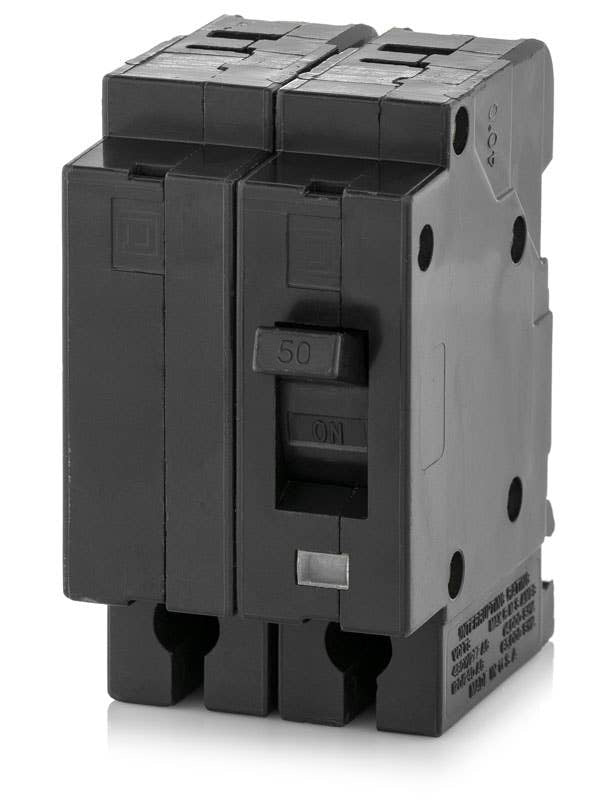

Square D EH24050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Square D
EH24050
Molded Case Circuit Breaker
Brand
Square D
SKU
EH24050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EH24050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EH24050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EH24050 |
| Series | EH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Quantity
Square D EH24050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
The EH24050 is a 2-pole, 50-amp molded case circuit breaker from Square D, designed for commercial and industrial applications. Operating at 480Y/277VAC, it provides essential long-time and instantaneous trip functions to safeguard electrical systems. This plug-on breaker is engineered to mount into legacy Square D NEHB panelboards. For users needing a modern equivalent, it is replaced by the bolt-on EHB24050 model. Featuring a 14kAIC rating at 480Y/277V, it includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | EH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the Square D EH24050 circuit breaker?
The EH24050 is a plug-on circuit breaker designed exclusively for legacy Square D NEHB panelboards. It will not fit modern NF or NQ series panels.
Is there a bolt-on alternative to the EH24050?
Yes, the EHB24050 is the bolt-on equivalent to this breaker. Square D NEHB panelboards are designed to accept both plug-on (EH) and bolt-on (EHB) circuit breakers.
Can the EH24050 be installed on a 480V ungrounded delta system?
No. The 480Y/277VAC slash rating indicates this breaker is only suitable for solidly grounded wye systems where the line-to-neutral voltage does not exceed 277V. It is not rated for straight 480V delta systems.
How does the EH24050 mount into the panelboard?
The EH24050 features a plug-on connection that engages directly with the bus bars of an NEHB panelboard. Unlike the EHB series, it does not require bolt-on mounting hardware.
Does the EH24050 include a visual trip indicator?
Yes, Square D EH series breakers feature a Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red indicator appears to help quickly identify the faulted circuit.
