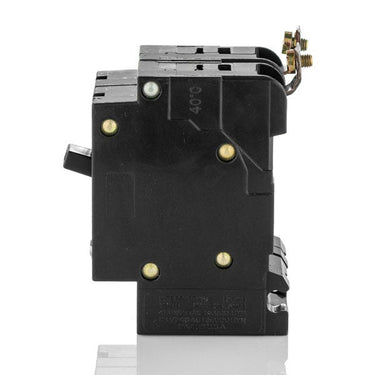

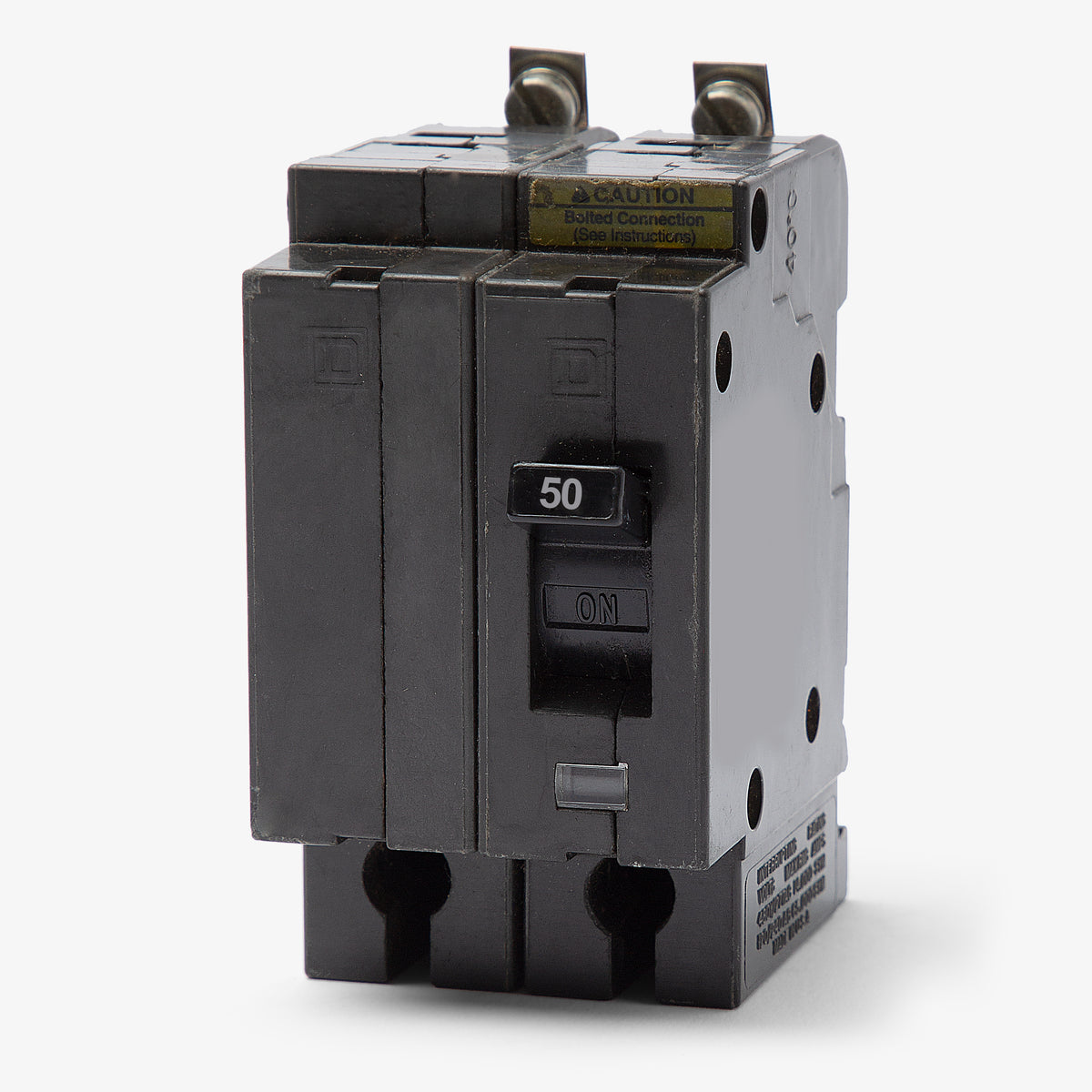

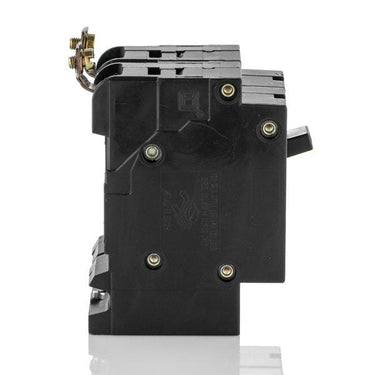

Square D EHB24050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Square D
EHB24050
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB24050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB24050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB24050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24050 |
| Series | EHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB24050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24050-R |
| Series | EHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Serving as a critical component for commercial power, the Square D EHB24050 delivers 50 amps of thermal-magnetic protection. This two-pole breaker handles standard industrial loads. It fastens into legacy Square D NEHB panelboards. For modern upgrades, this profile is replaced by the EDB24050, which requires transitioning to an NF series panelboard. Performance specs include a 14kA interrupting rating at 480Y/277VAC. It features the Visi-Trip indicator to clearly flag tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24050 |
| Series | EHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards accept the EHB24050 breaker?
This breaker is designed exclusively for legacy Square D NEHB panelboards. It will not fit in modern NF or NQ series panels.
Is there a direct modern replacement for the EHB24050?
The modern equivalent is the EDB24050, but it is not backwards compatible. EDB breakers require a transition to an NF series panelboard. To maintain an existing NEHB panel, you must use an EHB series breaker.
What wire sizes are supported by the EHB24050 terminals?
The breaker lugs accept 14 AWG to 2 AWG copper conductors, or 12 AWG to 2 AWG aluminum conductors.
How can I identify if the EHB24050 has tripped?
This breaker features a Visi-Trip indicator that provides a highly visible red flag when the breaker trips, allowing for rapid identification of faulted circuits in the panel.
Is the EHB24050 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
