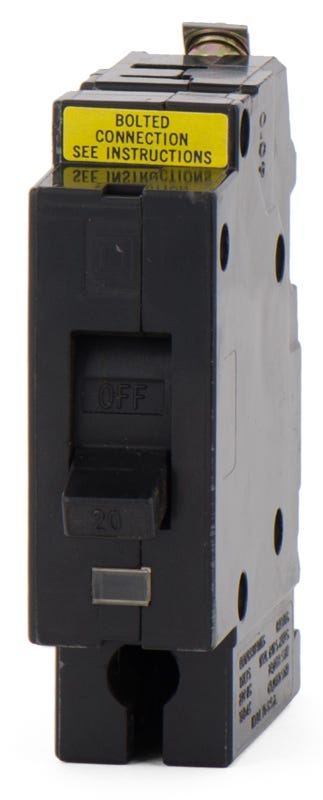

Square D EHB14020HID Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Square D
EHB14020HID
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB14020HID
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB14020HID - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB14020HID - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14020HID-R |
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated, SWD Rated |
Quantity
Square D EHB14020HID - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14020HID-R |
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated, SWD Rated |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Handling the demands of commercial lighting, the Square D EHB14020HID is a 20A, 1-pole molded case circuit breaker. It is specifically HID-rated to safely manage the high inrush currents associated with high intensity discharge fixtures. This bolt-on unit is engineered for legacy Square D NEHB panelboards. It provides an exact replacement solution for aging systems, avoiding the need to retrofit to the newer NF panelboard standard.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14020HID-R |
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated, SWD Rated |
Product FAQs
7 answersWhat does the HID suffix indicate on the EHB14020HID breaker?
The HID designation means the breaker is rated for High Intensity Discharge lighting. It is engineered to withstand the high inrush currents generated by HID fixtures, such as metal halide and high-pressure sodium lamps, preventing nuisance tripping during startup.
Which panelboards accept the EHB14020HID circuit breaker?
This bolt-on breaker is designed specifically for legacy Square D NEHB panelboards. It will not fit in newer NF series panelboards.
Can I substitute a modern EDB breaker for this EHB model?
No. EDB breakers are designed for newer Square D NF panelboards and have a different mounting configuration. You must use an EHB series breaker to properly fit the busbars in an NEHB panelboard.
How does the breaker indicate a tripped condition?
The EHB14020HID features a visual trip indicator. When a fault is detected, the operating handle snaps to a center position halfway between ON and OFF, making it easy to identify the tripped circuit inside the panelboard.
Is this breaker rated for switching duty applications?
Yes, it carries an SWD rating for switching duty, meaning it is approved to be used as a regular switch for controlling fluorescent lighting circuits, in addition to its HID rating.
Can this breaker be used for HVAC equipment?
Yes, the EHB14020HID is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment that requires a 20A, 1-pole circuit.
What type of protection does the LI trip function provide?
The thermal-magnetic LI trip unit provides Long-Time protection against sustained overloads and Instantaneous protection against short circuits, ensuring comprehensive safety for the connected circuit.
