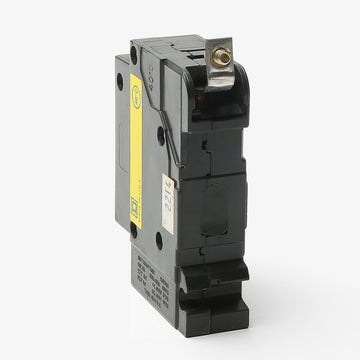

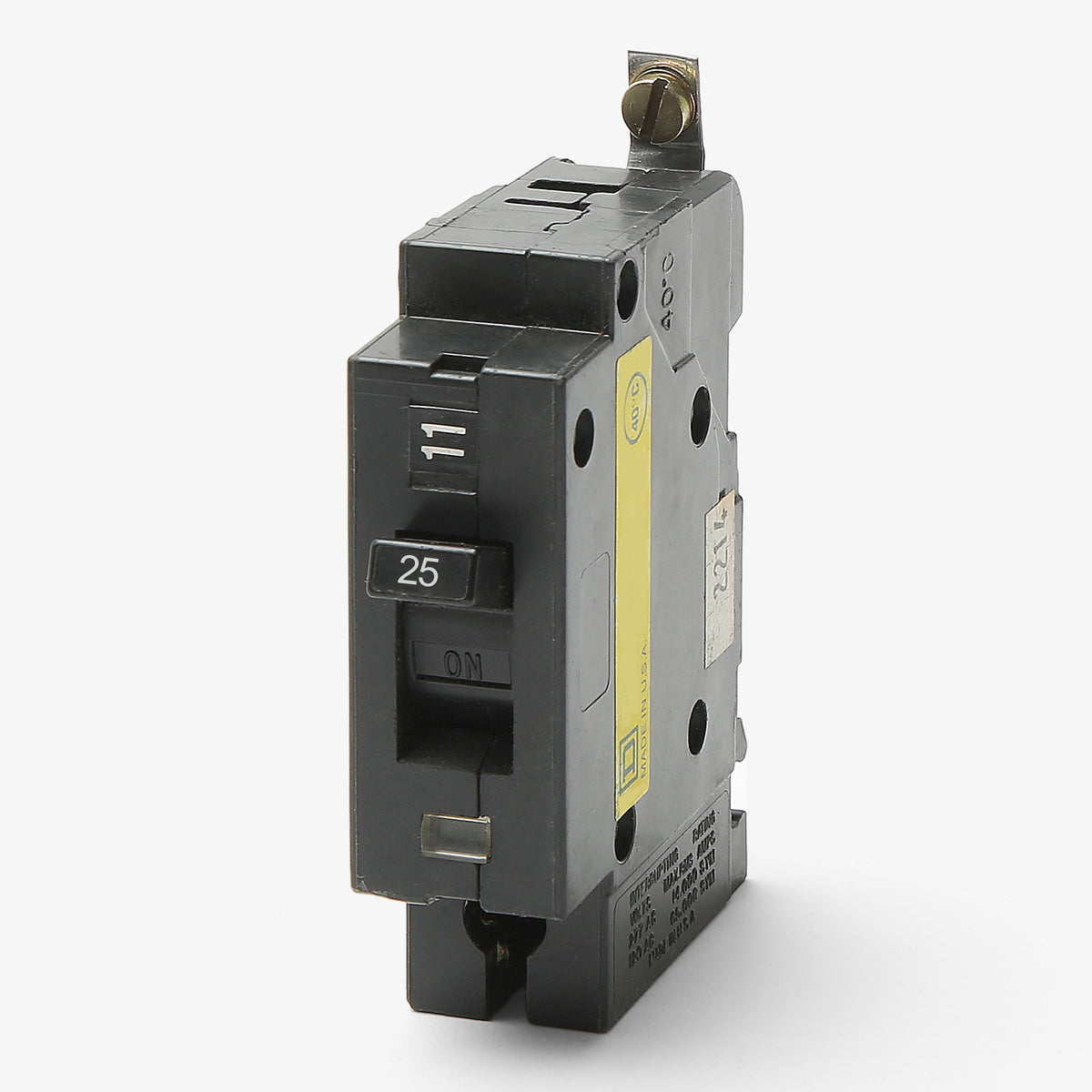

Square D EHB14025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Square D
EHB14025
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB14025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB14025 - 25A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB14025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14025 |
| Series | EHB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|

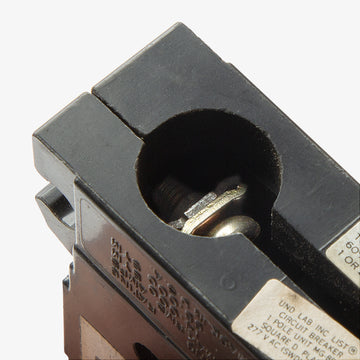

| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB14025 - 25A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14025 |
| Series | EHB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
1 Pole Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for 277VAC commercial lighting and distribution, this 25-amp molded case circuit breaker ensures robust thermal-magnetic protection. The device mounts into legacy Square D NEHB panelboards, serving as a critical component for older facility infrastructure. It features a 14kAIC rating at 277V, along with Visi-Trip technology for rapid fault identification. For modern installations utilizing NF series panelboards, the EDB14025 serves as the current replacement model.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14025 |
| Series | EHB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards accept the EHB14025 circuit breaker?
This breaker is specifically designed for legacy Square D NEHB panelboards. It is not compatible with newer NF or NQ series panels.
Can an EDB series breaker be used as a direct replacement for the EHB14025?
No. Although Schneider Electric introduced the EDB series as the modern successor, EDB breakers are built for NF panelboards and will not fit onto an NEHB busbar. You must use an EHB breaker to maintain an NEHB panel.
What types of circuits is the EHB14025 typically used to protect?
With its 277VAC rating, this single-pole breaker is frequently used in commercial and industrial 277/480V systems, particularly for branch circuits supplying commercial lighting.
Are the lugs on the EHB14025 rated for aluminum wire?
Yes, the factory-installed lugs are AL/CU rated, meaning they safely accept both aluminum and copper conductors. Always apply an approved oxide inhibitor when terminating aluminum wire.
Does the EHB14025 require a separate mounting bracket for installation?

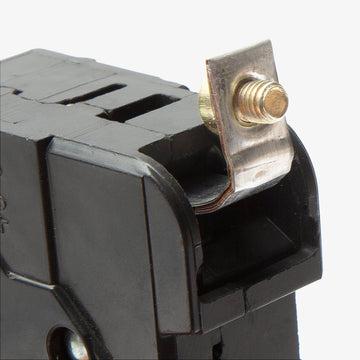

No additional mounting bracket is required. As a bolt-on breaker, it fastens directly to the NEHB panelboard busbar.
What does the LI trip function on the EHB14025 indicate?
The LI designation means the breaker provides Long-Time (thermal) protection against sustained overloads and Instantaneous (magnetic) protection against short circuits. The trip settings on this model are fixed and cannot be adjusted.
