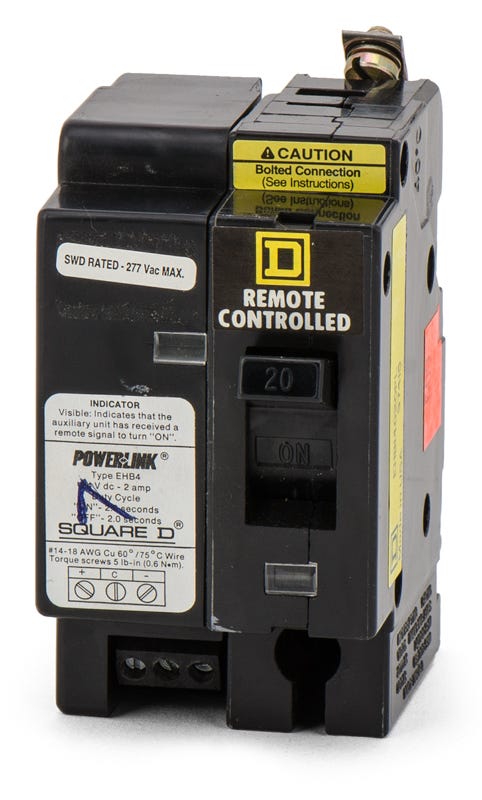

Square D EHB14020PL Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Square D
EHB14020PL
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB14020PL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB14020PL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB14020PL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14020PL |
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Powerlink Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Powerlink Remote Control |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator, Powerlink Remote Control |
Quantity
Square D EHB14020PL - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Powerlink Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Powerlink Remote Control |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator, Powerlink Remote Control |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Designed for commercial and industrial lighting automation, the EHB14020PL integrates Powerlink remote control functionality into a compact thermal-magnetic footprint. This single-pole 20A breaker installs into legacy Square D NEHB panelboards, providing reliable branch circuit protection. Featuring a 14kAIC rating at 277VAC, it includes Visi-Trip visual indicators and SWD switching duty ratings. Note that this unit is replaced by the ECB14020G3 for newer Powerlink G3 panelboard systems.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14020PL |
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Powerlink Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Powerlink Remote Control |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator, Powerlink Remote Control |
Product FAQs
6 answersWhat panelboards accept the EHB14020PL circuit breaker?
This breaker is designed specifically for legacy Square D NEHB Powerlink panelboards. It features a bolt-on connection that will not fit standard NF or NQ series panels.
What does the PL suffix indicate on the EHB14020PL?
The PL suffix designates this as a Powerlink circuit breaker. It includes an internal remote-controlled mechanism designed for automated commercial and industrial lighting control systems.
Can I substitute an EDB series breaker for the EHB14020PL?
No. While EDB breakers also have an E-frame footprint, they are designed for newer Square D NF panelboards. The mounting configurations are different, and they are not interchangeable with EHB breakers in NEHB panels.
What is the replacement for this breaker in newer Powerlink systems?
If you are upgrading to a newer Powerlink G3 panelboard system, the ECB14020G3 is the standard replacement. However, you must continue using the EHB14020PL to maintain legacy NEHB Powerlink AS systems.
Is the EHB14020PL rated for switching lighting loads?
Yes, this 20A breaker carries an SWD (Switching Duty) rating, meaning it is approved for regularly switching fluorescent lighting circuits. It is also HACR rated for use with HVAC equipment.
Does the EHB14020PL feature a visual trip indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a highly visible red indicator appears, allowing electricians to quickly identify the faulted circuit in a crowded panel.
