Square D EHB24020PL - 20A 2 Pole Molded Case Circuit Breaker

New

$850.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

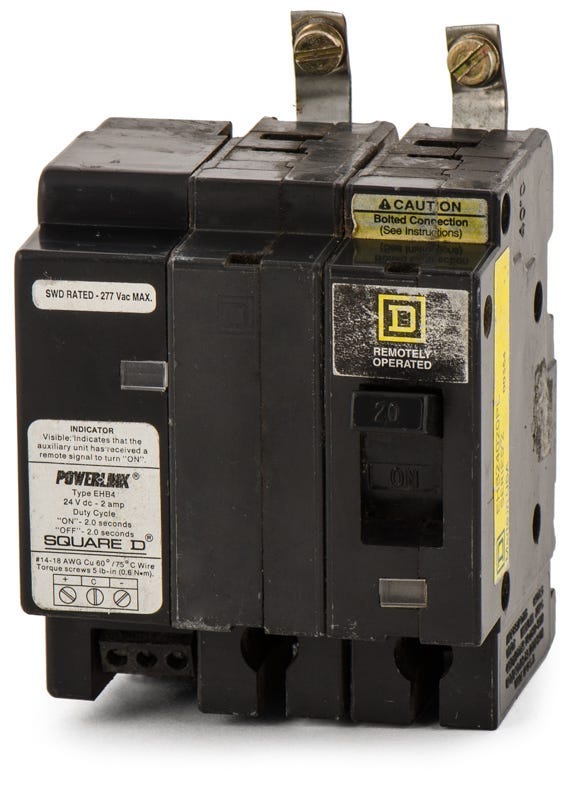

Part of the discontinued EHB series, the Square D EHB24020PL is a 2-pole, 20-amp molded case circuit breaker for commercial power distribution. It provides reliable thermal-magnetic protection for 480Y/277VAC systems. This bolt-on breaker installs into legacy NEHB panelboards. While obsolete, it is replaced by the EDB24020, which requires an NF panelboard upgrade. Featuring Powerlink remote control functionality, this unit allows for automated switching and includes a Visi-Trip indicator.

Specifications

Brand Square D
Series EHB
Part Number EHB24020PL
Amperage 20A
Voltage 480Y/277VAC, 120/240VAC
Poles 2
Phase 1
AIC Rating 14kA @ 480Y/277VAC, 65kA @ 120/240VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Square D NEHB Panelboards, Powerlink Systems
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 14-10 AWG (Cu/Al)
Max Wire 10 AWG
Min Wire 14 AWG
Available Options Padlock Attachment
Accessories Load Side Lugs Included
Standards CSA C22.2 No. 5, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Visual Trip Indicator, Powerlink, Remotely Operated
